Tent House X Series

New Design, New Tech, New Glamping High ROI, Affordable

The large X series tent house cut a graceful, elegant arc when seen from above. Up close, their natural wood tones create a calm, graceful feel. Expansive 270-degree panoramic windows offer wide, stunning views of nature, beautifully connecting the large interior with the world outside.

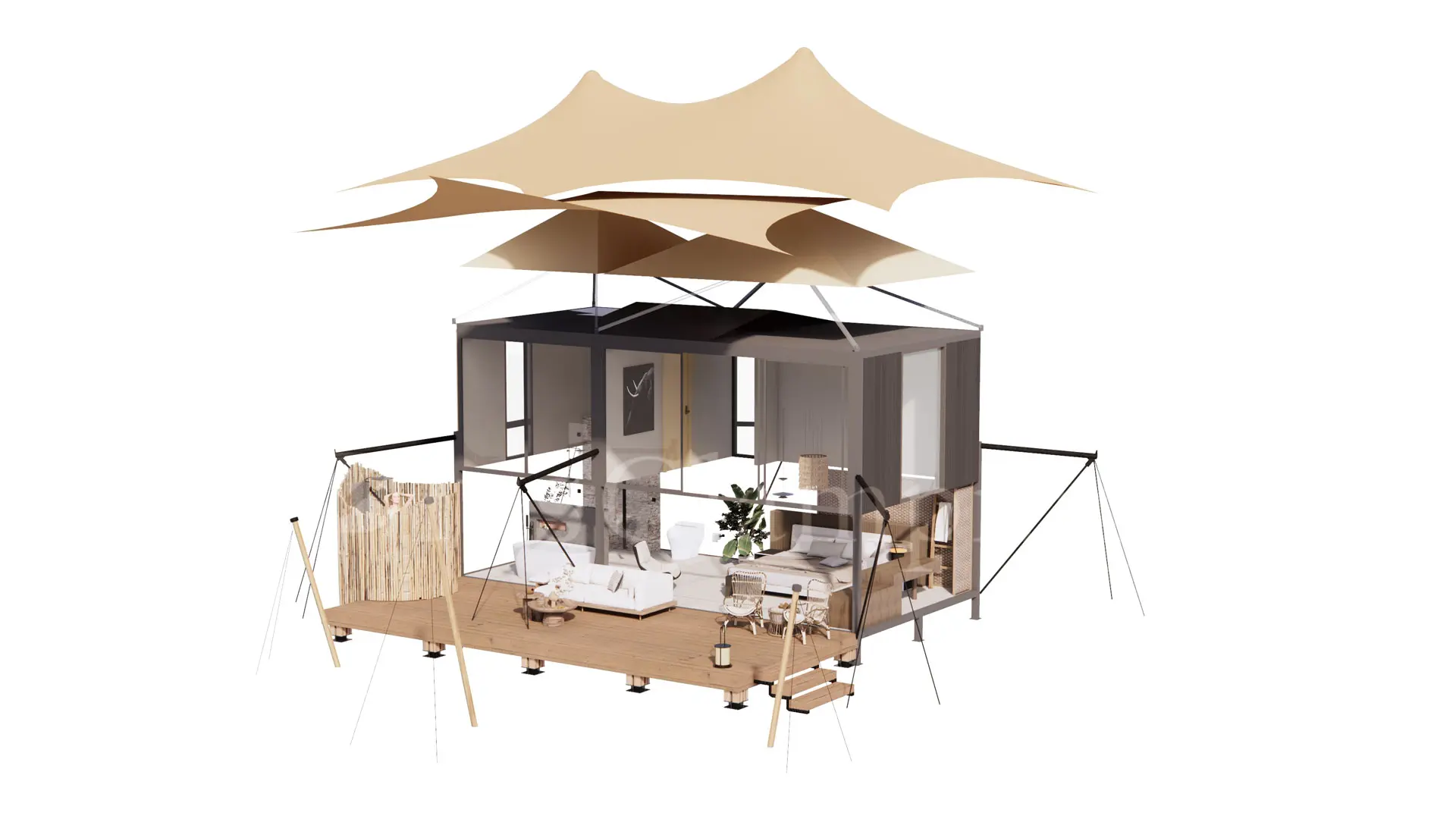

Tent House X Series Breakdown

High ROI

Lifespan

Up to 20 years

Working Temperature

-30℃ to +60℃

Wind Resistance

Up to level 9

Flame Retardent

Moisture Proof & Mildew Resistance

X9

X5

X5+

Model Comparison

Size, area, capacity, and typical configuration

Select Glamping Tent by Price, Area

Model	Guests	Projected	Inside	Veranda*	Bedroom	Bathroom	Kitchen
X5	2 People	~94 m²	32 m²	~26 m²	1	Yes	Optional
X5+	2 People	94 m²	32 m²	~62 m²	1	Yes	Optional
X7	2-4 People	~115 m²	46 m²	~30 m²	1-2	Yes	Yes
X7+	2-4 People	114 m²	46 m²	~68 m²	1-2	Yes	Yes
X9	4-6 People	~164 m²	75 m²	~67 m²	2-3	Yes	Yes
X9+	4-6 People	182 m²	92.4 m²	~90 m²	2-3	Yes	Yes
XM2	Public/Event	750 m²	200 m²	Huge	Custom	Yes	Yes
XM5	Public/Event	1300 m²	500 m²	Huge	Custom	Yes	Yes

Video of X5

Discover the exterior & interior details

Dimensions & Layout Design

X5, X5+, X7, X7+, X9, X9+ and XM2

X5

X5

X5 Layout Design

Projected Area+Sunshade: 63+31m²
Structural Dimension: 8m*10.7m
Platform: 7.3m*8m
Inside Dimension: 4m*8m
External Height:(Top)4.6m
Internal Height:(Top/Side) 2.85m/2.5m

X5+

X5+

X5+ Layout Design

Projected Area: 94m²
Structural Dimension: 10.9m*10.6m
Platform: 7.3m*8m + Outdoor Lunge
Inside Dimension: 4m*8m
External Height:(Top)4.6m
Internal Height:(Top/Side) 2.85m/2.5m

X7

X7

X7 Layout Design

Projected Area+Sunshade: 84+31m²
Structural Dimension: 8.6m*12.6m
Platform: 7.3m*10.5m
Inside Dimension: 5m*9.2m
External Height:(Top)4.6m
Internal Height:(Top/Side) 2.85m/2.5m

X7+

X7+

X7+ Layout Design

Projected Area: 114m²
Structural Dimension: 11.9m*12.6m
Platform: 8.3m*10.5m + Outdoor Lunge
Inside Dimension: 5m*9.2m
External Height:(Top)4.6m
Internal Height:(Top/Side) 2.85m/2.5m

X9

X9

X9 Layout Design

Projected Area+Sunshade: 133+31m²
Structural Dimension: 9.1m*18.6m
Platform: 9.5m*15m
Inside Dimension: 5m*15m
External Height:(Top)5.1m
Internal Height:(Top/Side) 2.85m/2.5m

X9+

X9+

X9+ Layout Design

Projected Area: 182m²
Structural Dimension:12.8m*19.8m
Platform: 10.2m*18.5m + Outdoor Lunge
Inside Dimension: 5.5m*16.8m
External Height:(Top)5.1m
Internal Height:(Top/Side) 2.85m/2.5m

XM2

XM2

XM2 Layout Design

Projected Area: 750m²
Structural Dimension:16.6m*30.8m
Platform: 16.6m*28.6m
Inside Area: 200m²
External Height:(Top)7m
Internal Height:(Top/Side) 5.2m/2.8m

XM5

XM5

XM5 Layout Design

Projected Area: 1300m²
Structural Dimension:30m*528m
Platform: 38m*48m
Inside Area: 500m²
External Height:(Top)8.2m
Internal Height:(Top/Side) 5.2m/3.2m

Key Specifications

Carefully Selected and High Quality Materials

1

1050g PVDF architectural membrane

2

850g Thermal Insulation Fabric

3

Inner Tent: 450g Canvas

4

Rust-Proof Steel Connectors

5

Frames: ⌀80x4mm anti-rust coated steel.

6

SPC waterproof flooring/Multi-layer solid wood flooring Plastic wood flooring/20mm cement board Galvanized steel

Roof: 1050g PVDF Architectural Membrane
Second Roof: 850g Thermal Insulation Fabric
Inner Tent: Composite Wall System with 420g Canvas / Thermal Break Aluminum Glass Curtain Wall
Connectors: Anti-corrosion Coated Steel Connectors
Frames: ⌀80x4mm Anti-corrosion Coated Steel
- Flooring Options:
  - SPC Waterproof Flooring
  - Multi-layer Solid Wood Flooring
  - WPC (Wood Plastic Composite) Decking
- Structural Support:
  - 20mm Cement Board Substrate
  - Galvanized Steel Base Frame
