Luxury Lodge Tent H/HX Series

New Design, New Tech, New Glamping High ROI, Affordable

The broad and elegant dome, like a gigantic white cloud under the sky, slowly spreads out over the earth, forming a seamless connection with the surrounding natural landscape. The ⌀8 80x4 mm steel with anti-rust coating formally supports the entire framework. sheltering the cozy vacation cottage from the wind and rain, building a reassuring "safe haven" that can withstand strong winds of up to force 9

Luxury Lodge Tent H Series Breakdown

High ROI

Lifespan

Up to 20 years

Working Temperature

-30℃ to +60℃

Wind Resistance

Up to level 10

Flame Retardent

Moisture Proof & Mildew Resistance

H23

HX28

H28

Dimensions & Layout Design

M40 and M74

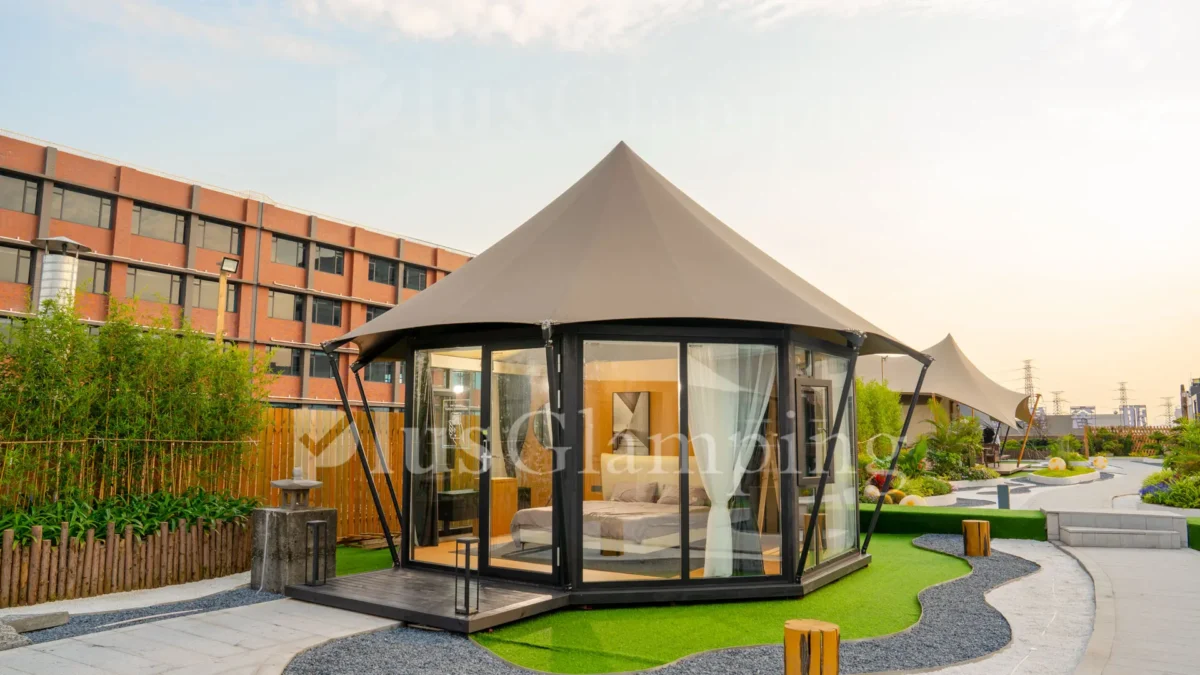

H23

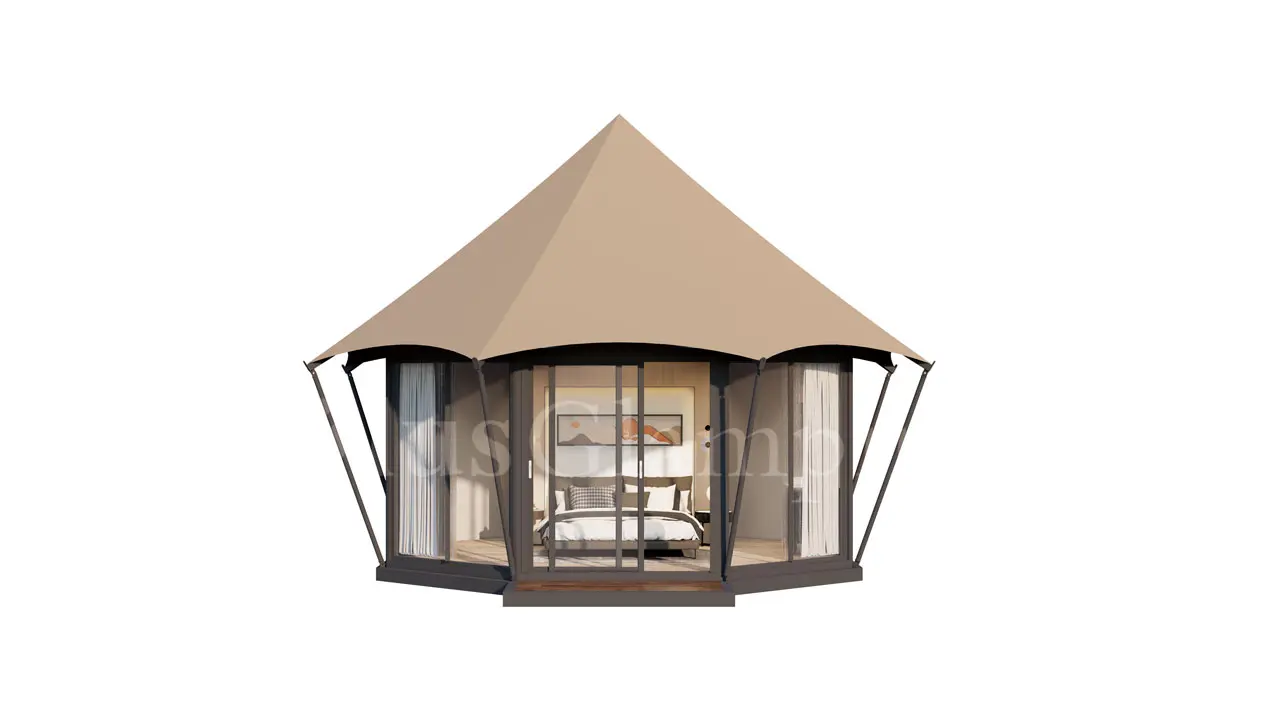

H23

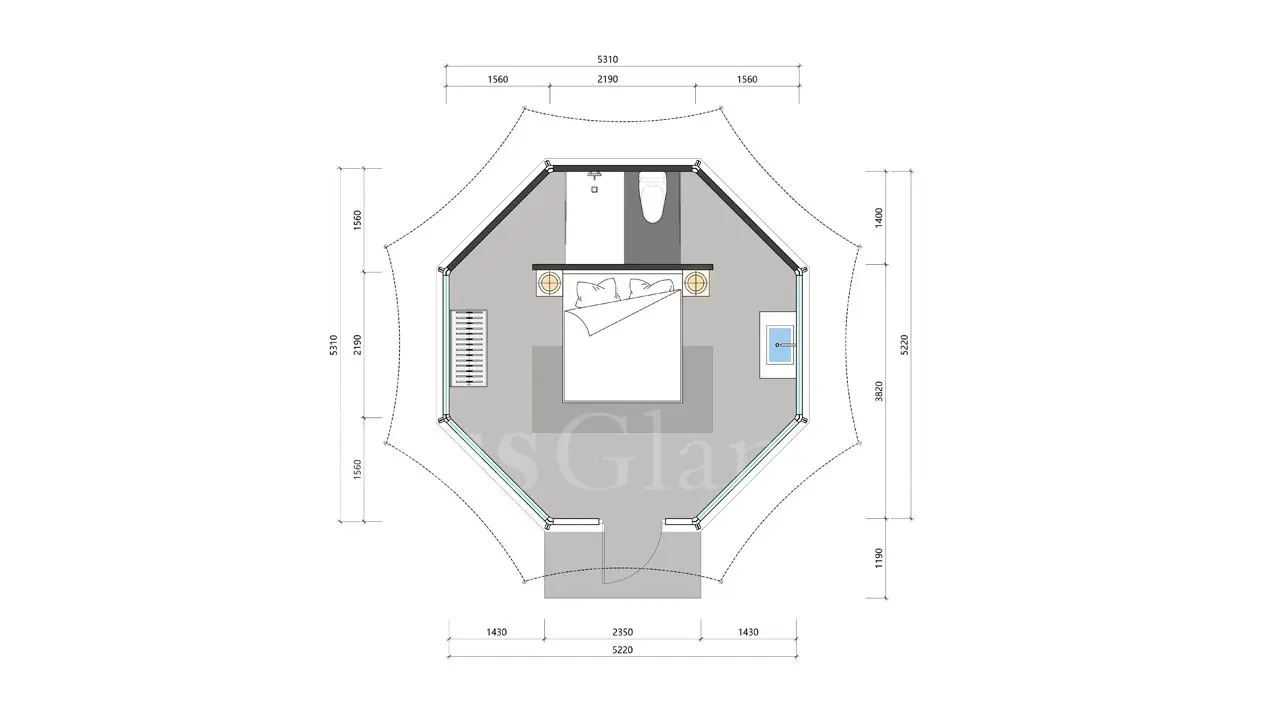

H23 Layout Design

Structural Dimension: 5.3m*5.3.m
Inside Area: 23m²
Inside Dimension: 5.2m*5.2m
Terrace Area: 2.6m²
External Height:(Top/Side) 5.4m/2.5m
Internal Height:(Top/Side) 3.7m/2.4m

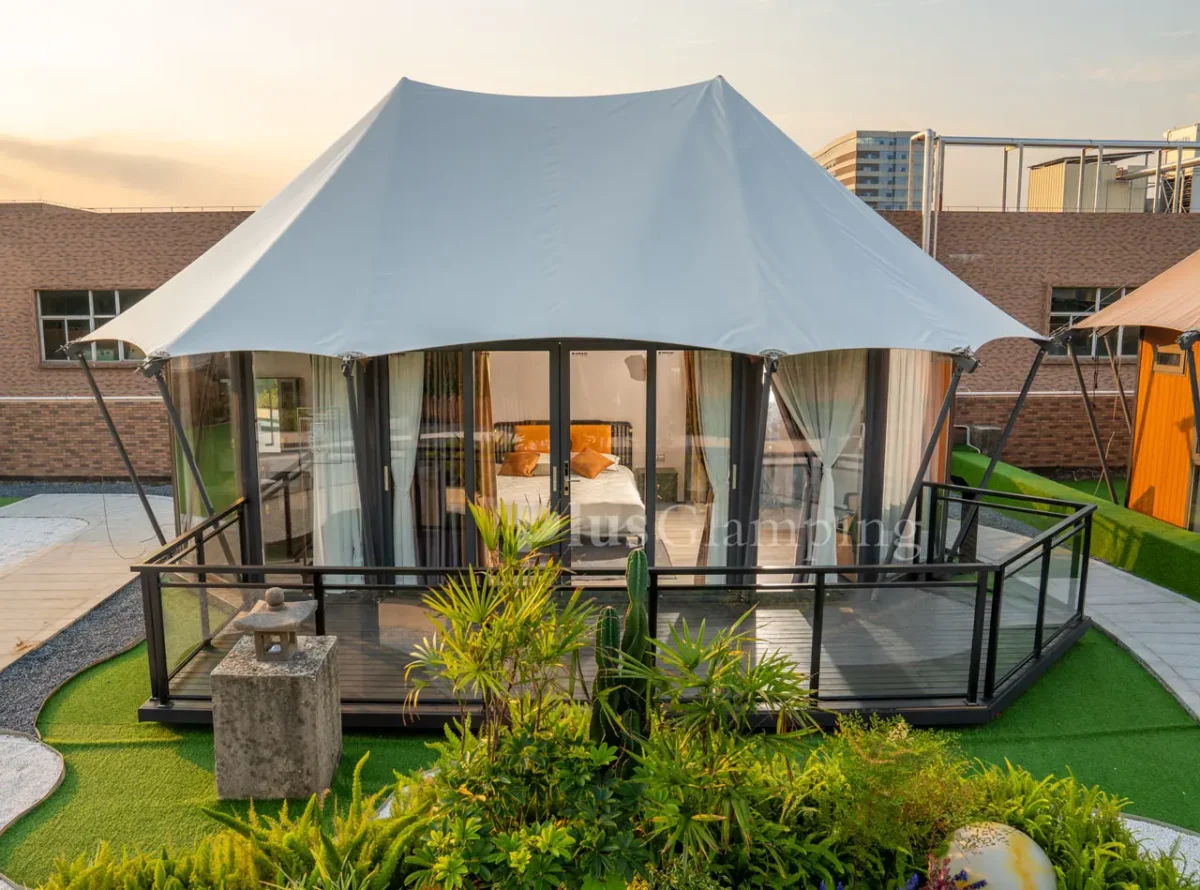

H28

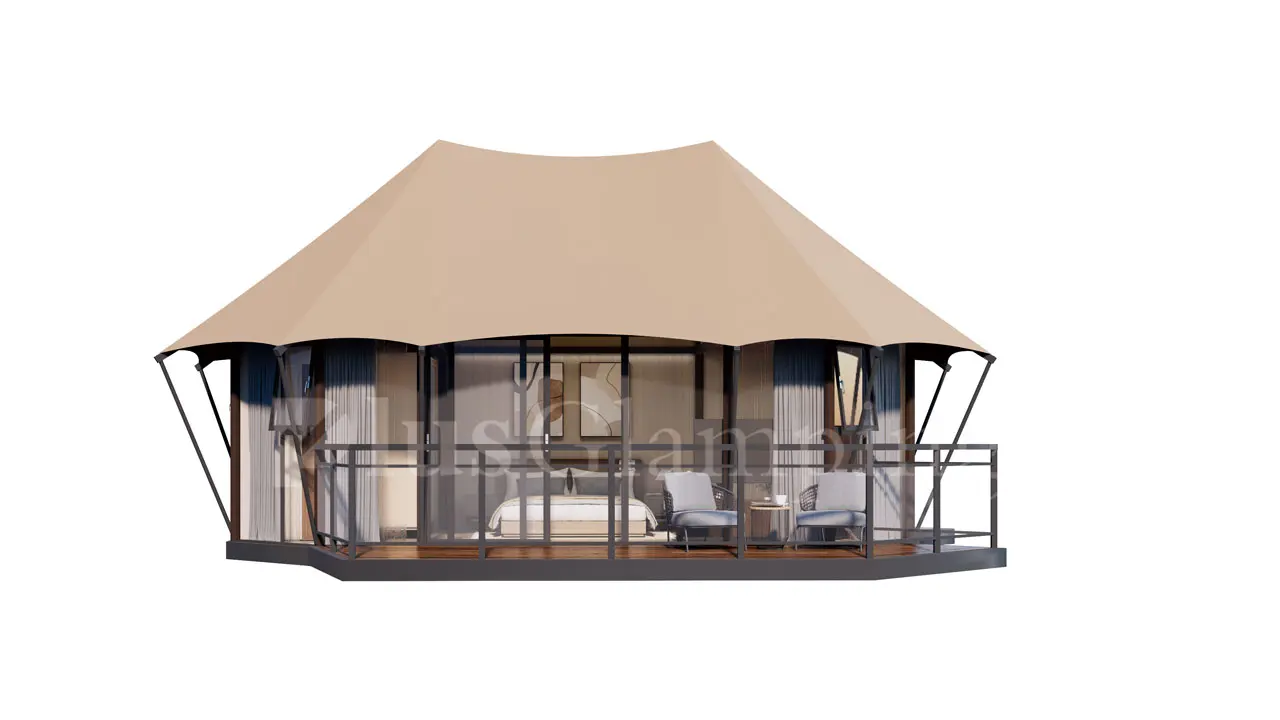

H28

H28 Layout Design

Structural Dimension: 3.8m*7.8.m
Inside Area: 25.8m²
Inside Dimension: 3.7m*7.7m
Terrace Area: 17.3m²
External Height:(Top/Side) 5m/2.5m
Internal Height:(Top/Side) 3.5m/2.4m

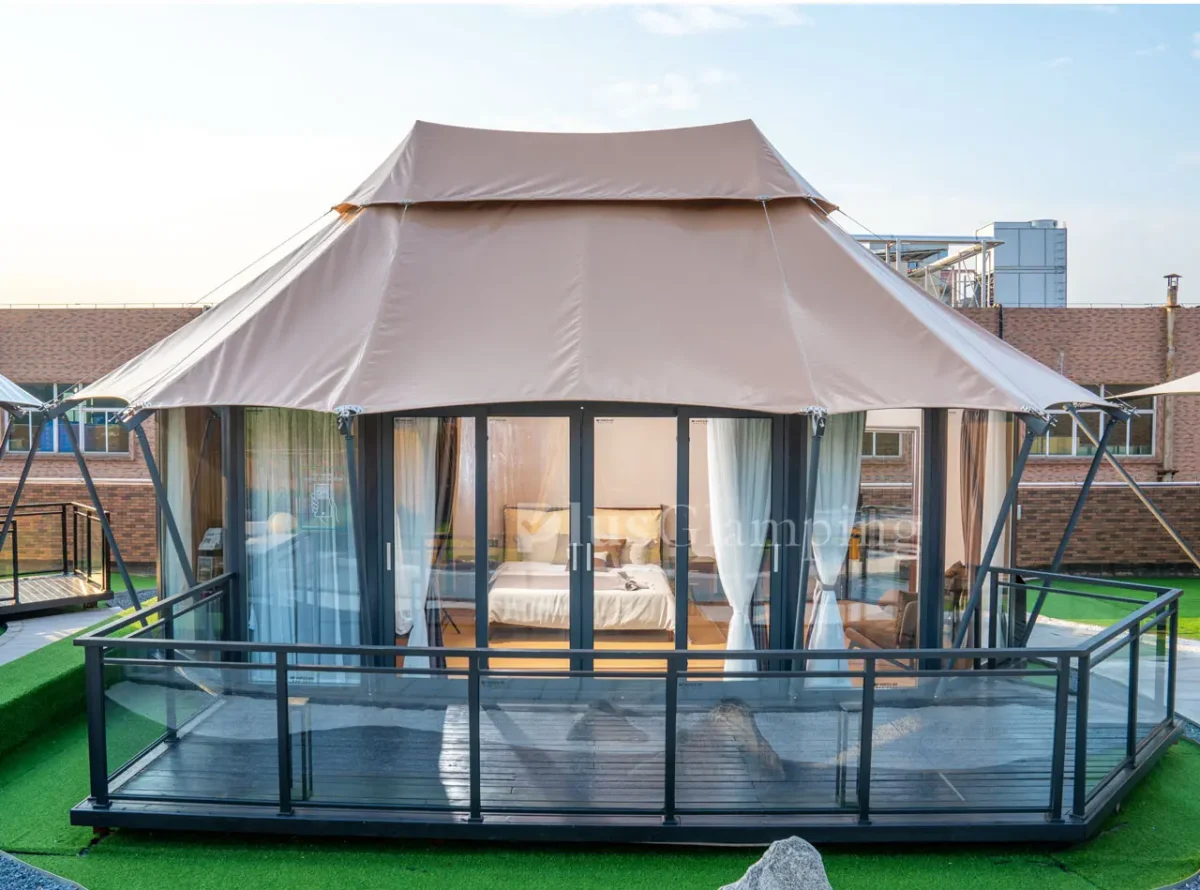

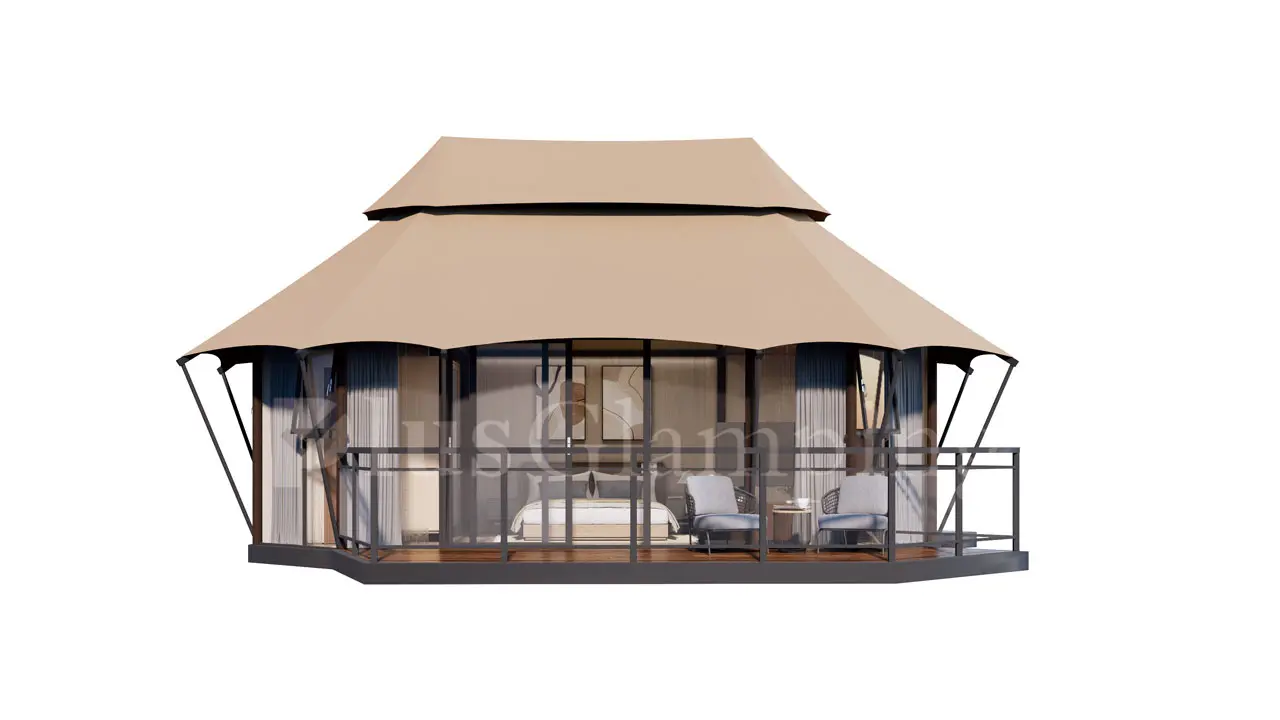

HX28

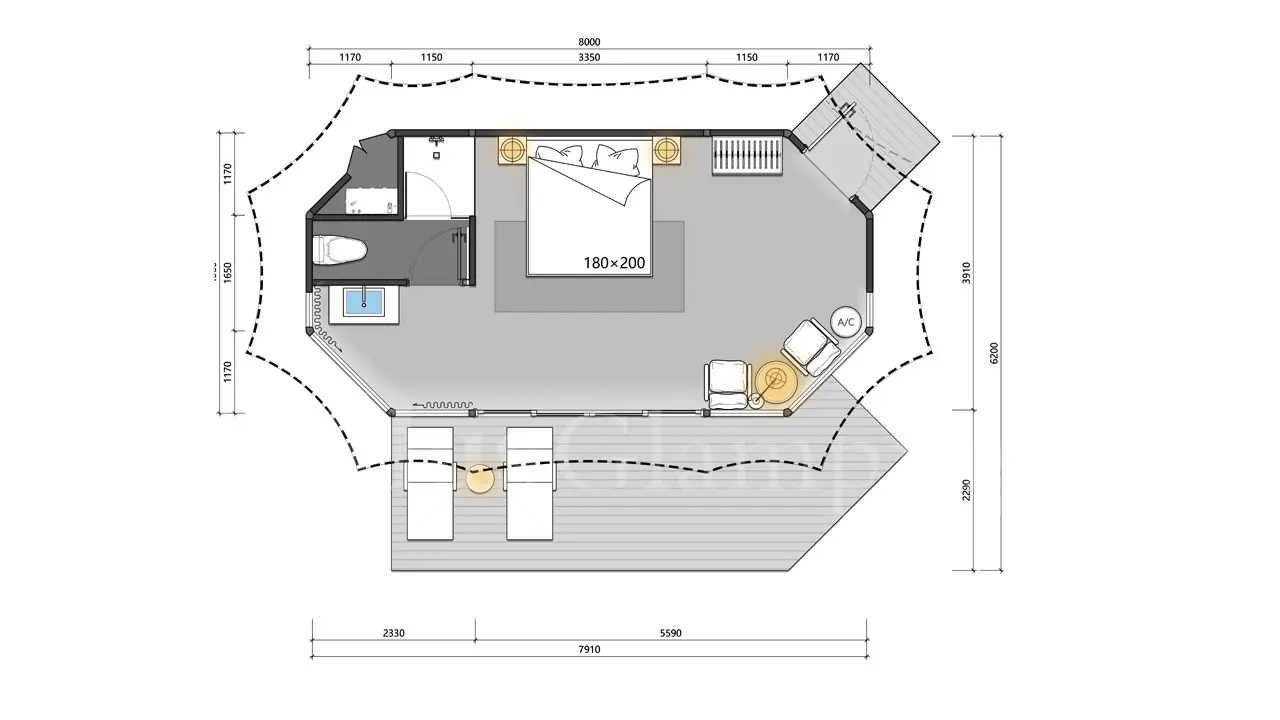

HX28 Layout Design

Structural Dimension: 3.8m*7.8.m
Inside Area: 25.8m²
Inside Dimension: 3.7m*7.7m
Terrace Area: 17.3m²
External Height:(Top/Side) 5m/2.5m
Internal Height:(Top/Side) 3.5m/2.4m

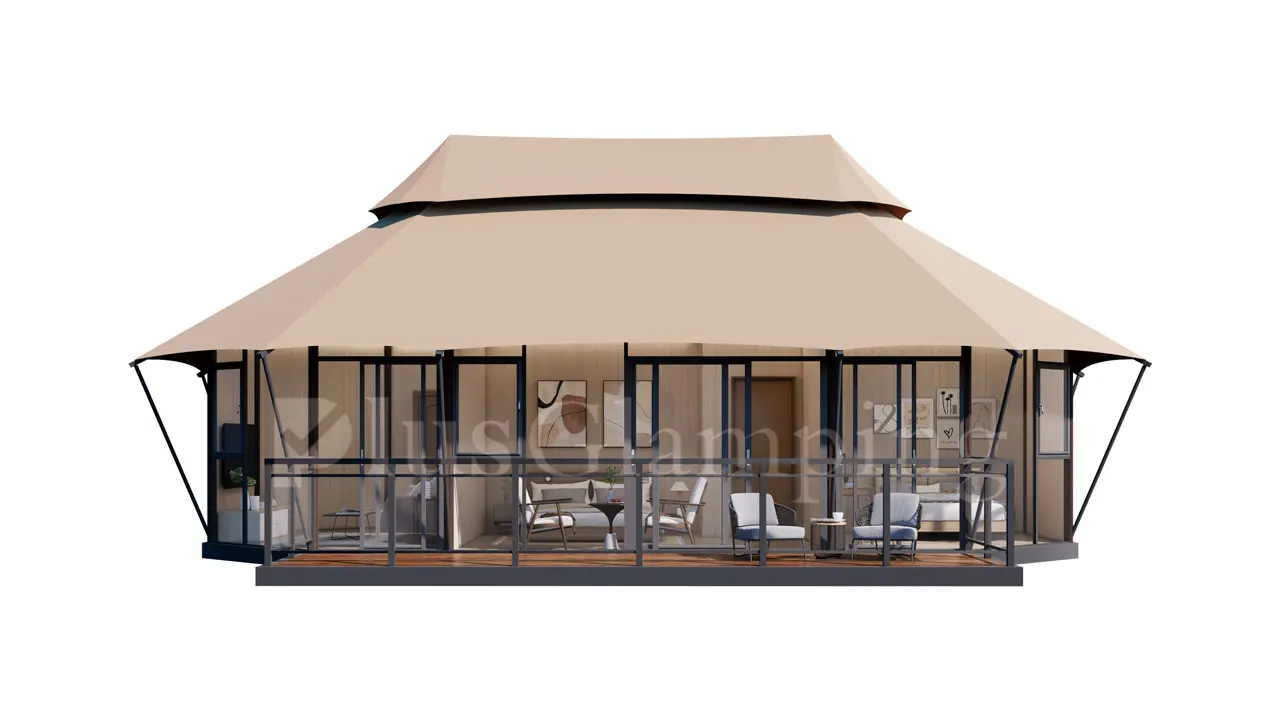

HX58

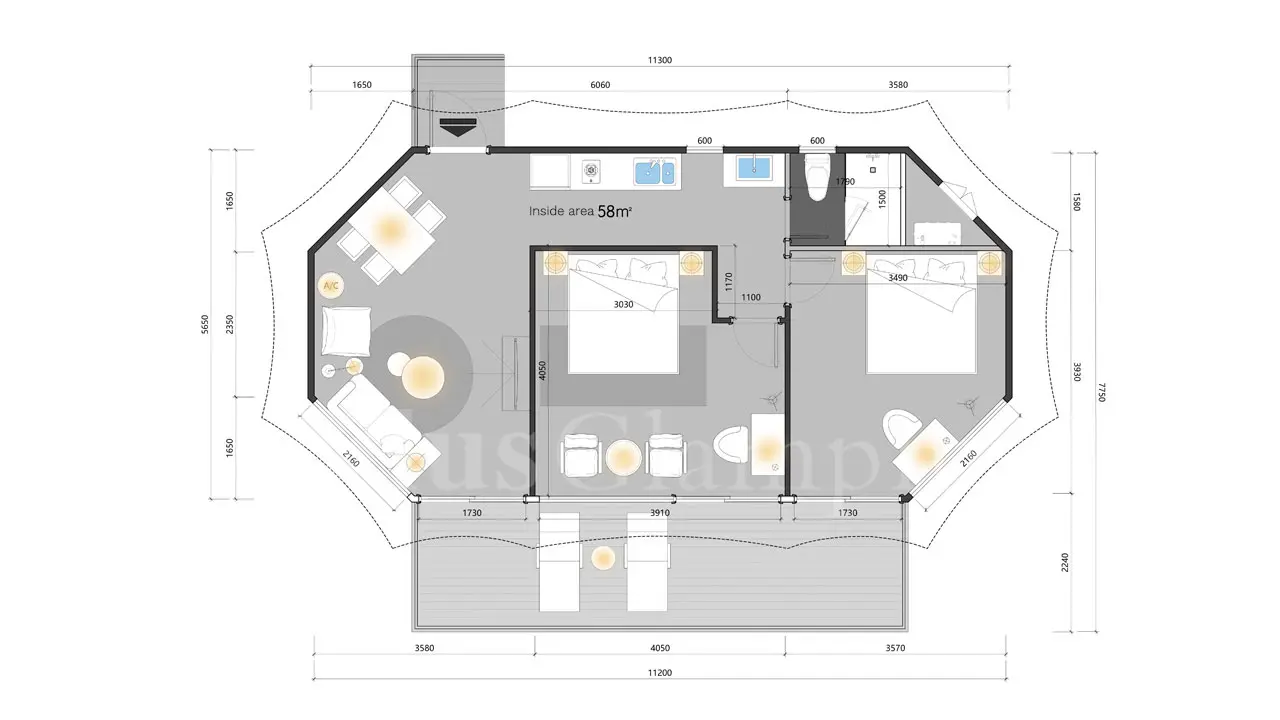

HX58 Layout Design

Structural Dimension: 5.6m*11.3.m
Inside Area: 56.8m²
Inside Dimension: 5.5m*11.2m
Terrace Area: 19m²
External Height:(Top/Side) 5.2m/2.5m
Internal Height:(Top/Side) 2.8m/2.4m

Key Specifications

Carefully Selected and High Quality Materials

1050g PVDF architectural membrane

850g Thermal Insulation Fabric

Inner Tent: 450g Canvas

Rust-Proof Steel Connectors

Frames: ⌀80x4mm anti-rust coated steel.

SPC waterproof flooring/Multi-layer solid wood flooring Plastic wood flooring/20mm cement board Galvanized steel

Roof: 1050g PVDF architectural membrane
Second Roof: 850g Thermal Insulation Fabric
Inner Tent: 450g Canvas
Connectors: Rust-Proof Steel Connectors
Frames: ⌀80x4mm anti-rust coated steel
Flooring:
- SPC waterproof flooring
- Multi-layer solid wood flooring
- Plastic wood flooring/20mm cement board
- Galvanized steel
