Luxury Lodge Tent Z/ZT Series

New Design, New Tech, New Glamping High ROI, Affordable

The broad and elegant dome, like a gigantic white cloud under the sky, slowly spreads out over the earth, forming a seamless connection with the surrounding natural landscape. The ⌀8 80x4 mm steel with anti-rust coating formally supports the entire framework. sheltering the cozy vacation cottage from the wind and rain, building a reassuring "safe haven" that can withstand strong winds of up to force 9

Luxury Lodge Tent

Luxury Lodge Tent Series Breakdown

High ROI

Lifespan

Up to 20 years

Working Temperature

-30℃ to +60℃

Wind Resistance

Up to level 10

Flame Retardent

Moisture Proof & Mildew Resistance

Z64

ZT60

Model Comparison

Size, area, capacity, and typical configuration
Select Glamping Tent by Price, Area
Model
Guests
Projected
Inside
Veranda*
Bedroom
Bathroom
Kitchen
Z30 Z30 2-3 People 36 m² 28.6 m² 33 m² 1 Yes Optional

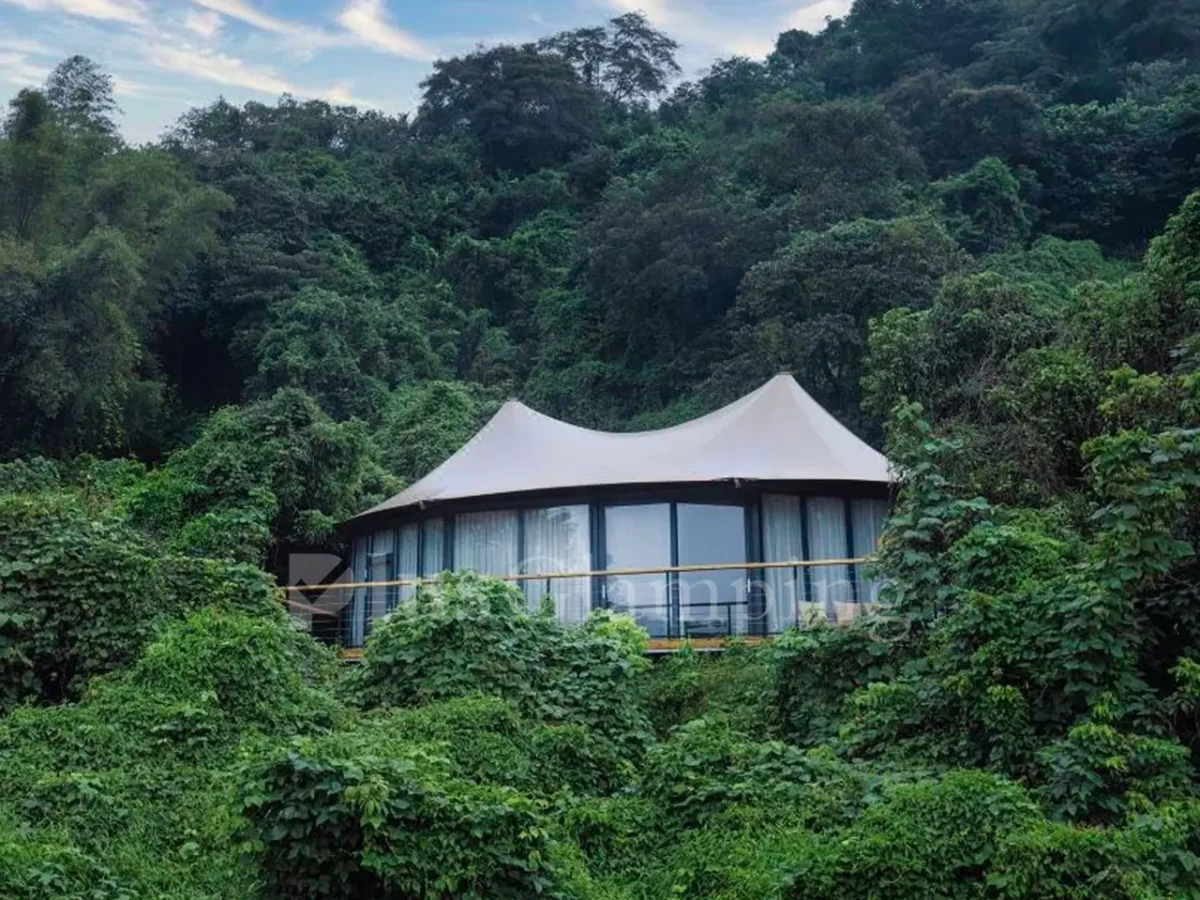

Z64 Z64 4-6 People 71 m² 63 m² 39 m² 2 Yes Yes
ZT42 ZT42 2-4 People 55 m² 40.4 m² 43.7 m² 2 Yes Optional
ZT60 ZT60 4-6 People 79 m² 60 m² 35.6 m² 2-3 Yes Yes
Note:
  • Z/ZT Series offers a premium lodge experience with robust structures suitable for all weather conditions.
  • All models in this series feature spacious interiors (>25 m²) and can be equipped with a full bathroom suite as an option.
  • ZT models feature an extended terrace design for superior outdoor living space.

Dimensions & Layout Design

M40 and M74

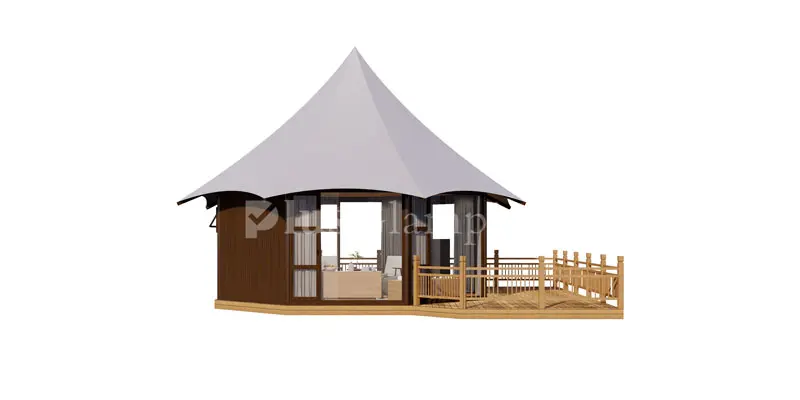

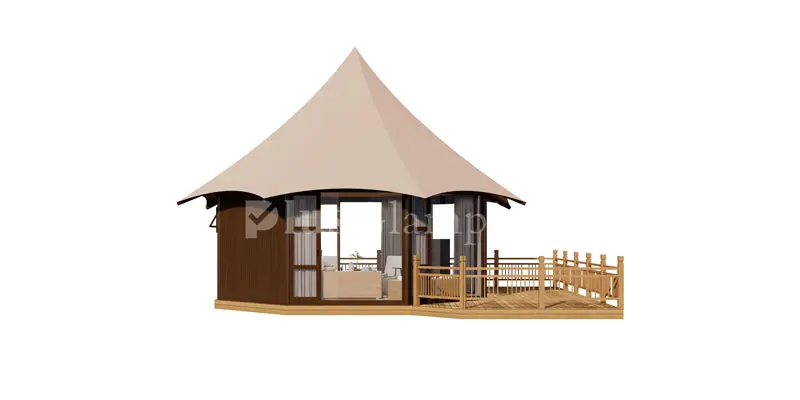

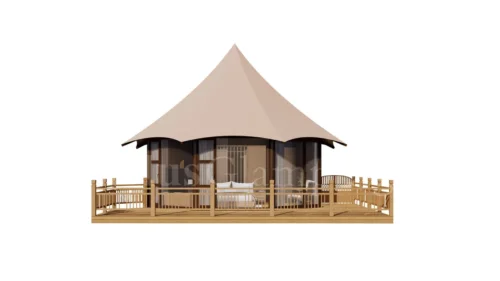

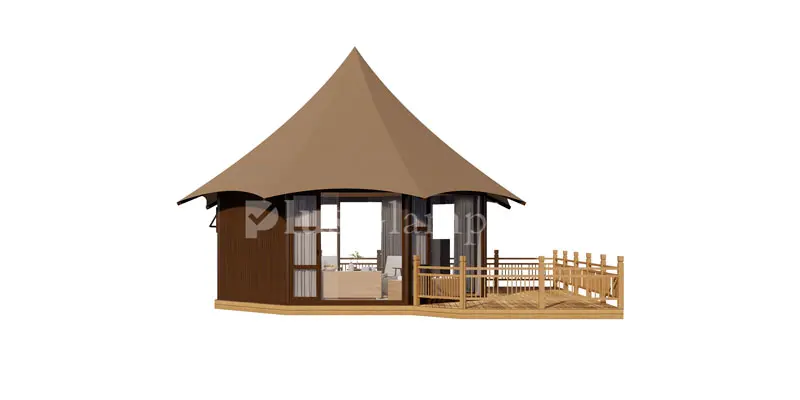

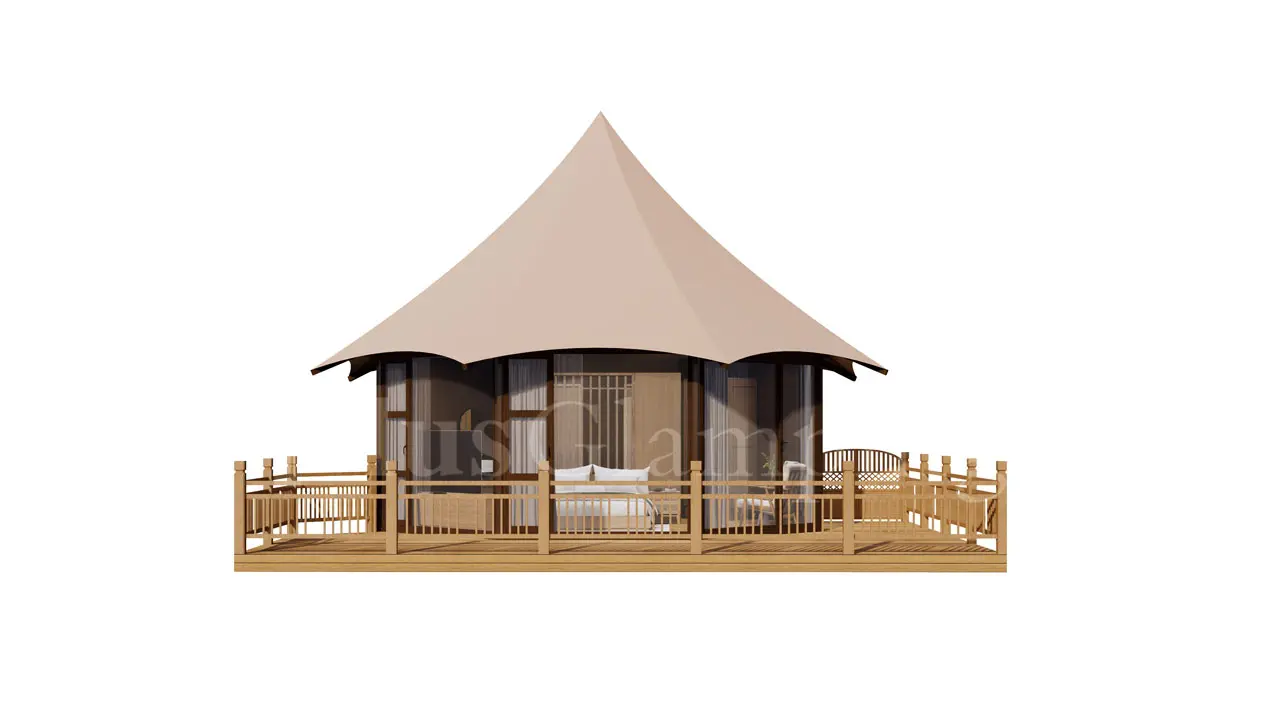

Z30

Z30

Z30

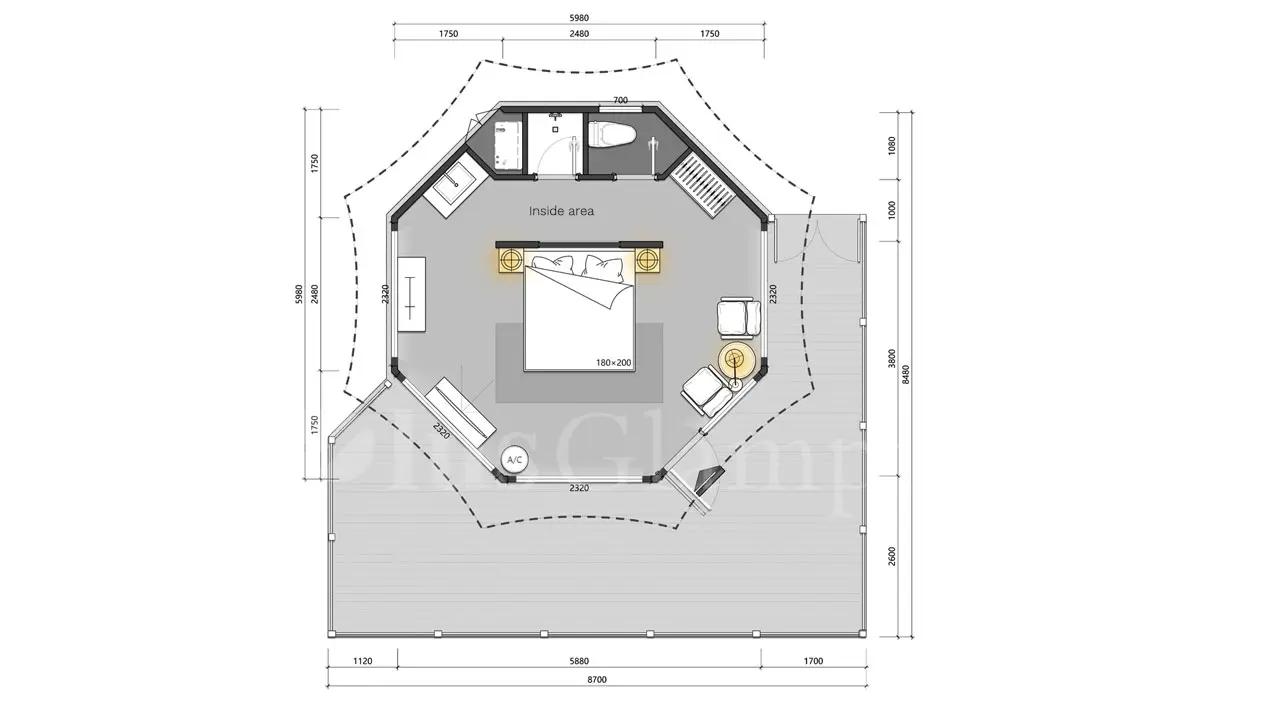

Z30 Layout Design

Z30 Layout Design

  • Structural Dimension: 6m*6m
  • Inside Area: 28.6m2
  • Inside Dimension: 5.9m*5.9m
  • Terrace Area: 33m2
  • External Height:(Top/Side) 6m/2.6m
  • Internal Height:(Top/Side) 3.9m/2.5m

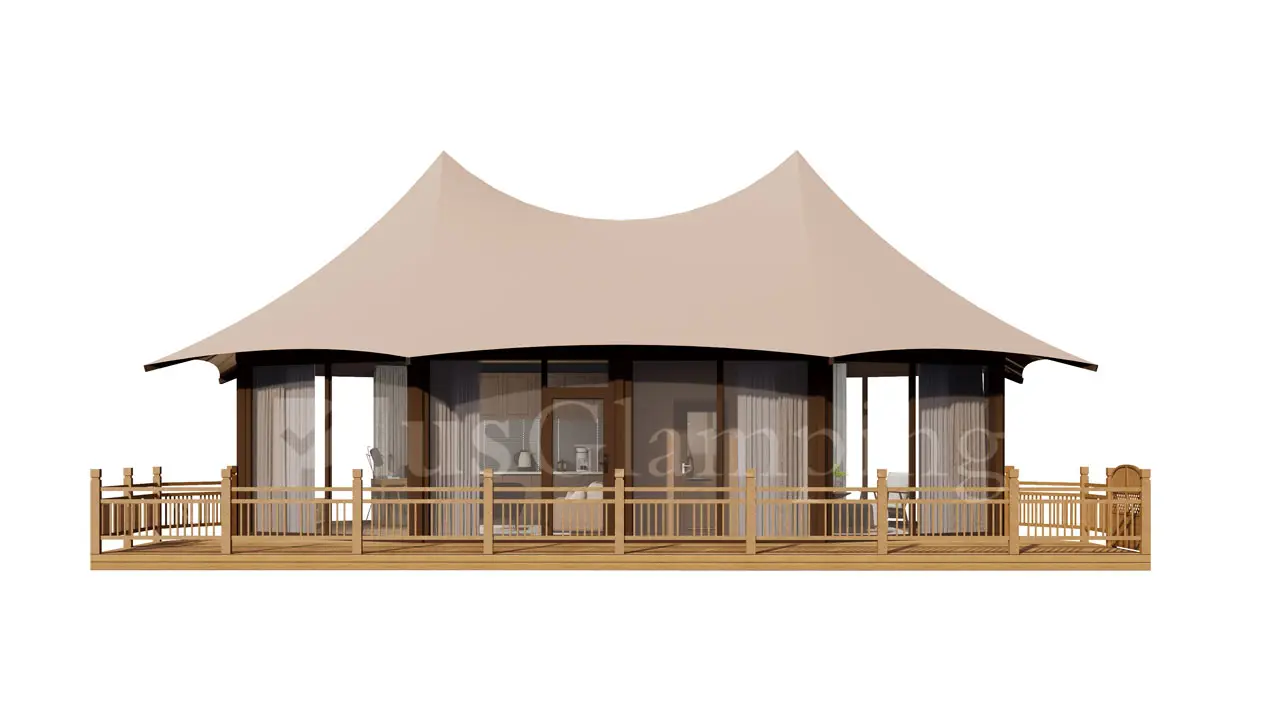

Z64

Z64

Z64

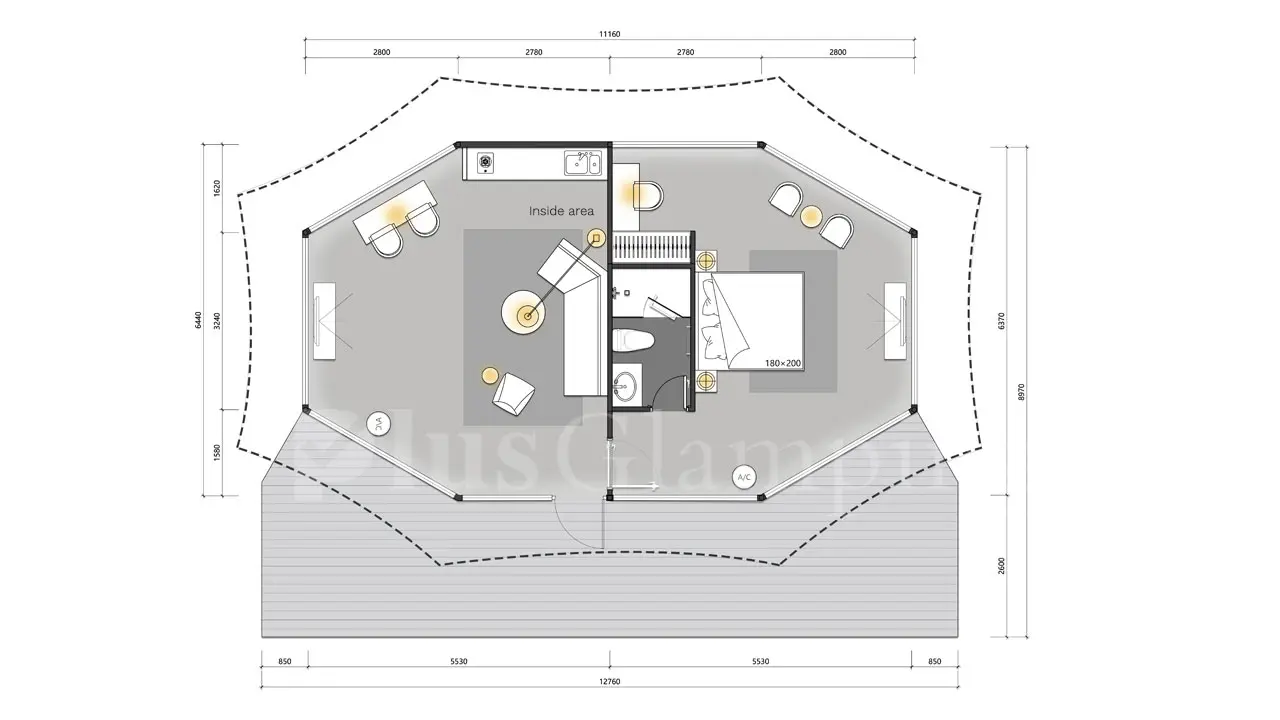

Z64 Layout Design

Z64 Layout Design

  • Structural Dimension: 6.4m*11.2m
  • Inside Area: 63m2
  • Inside Dimension: 6.3m*11.1m
  • Terrace Area: 39m2
  • External Height:(Top/Side) 6m/2.8m
  • Internal Height:(Top/Side) 3.7m/2.7m

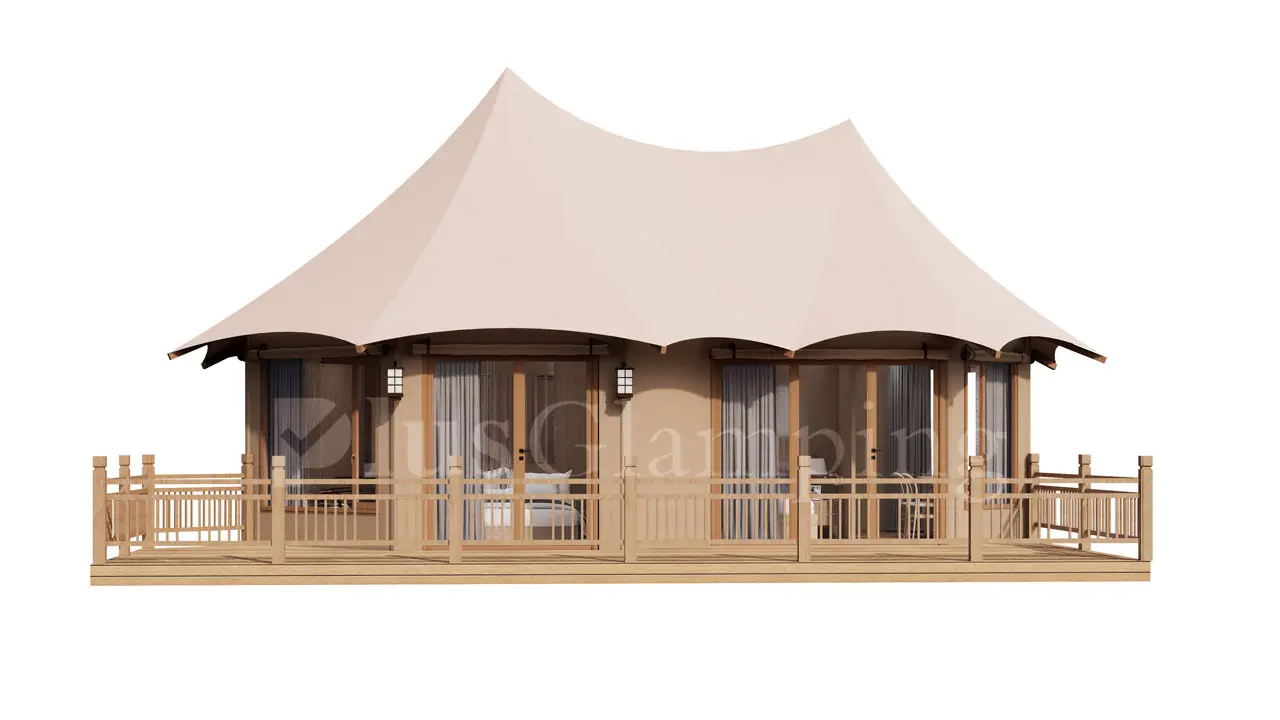

ZT42

ZT42

ZT42

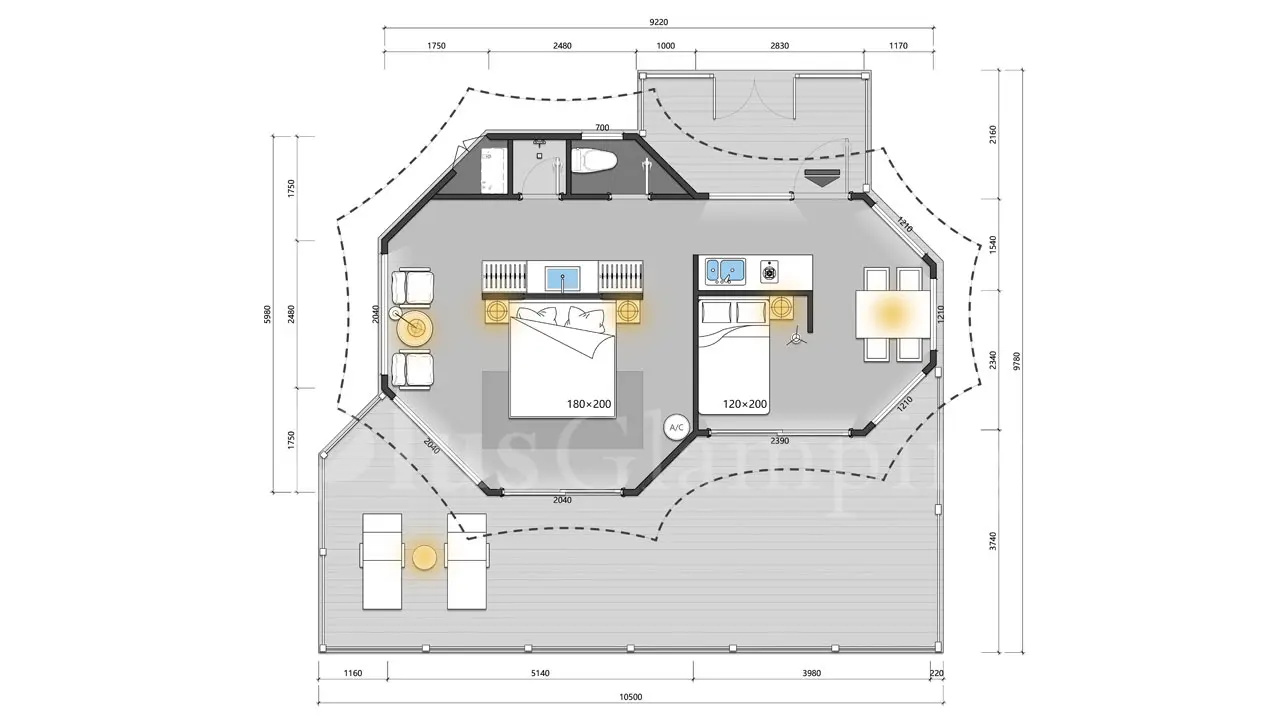

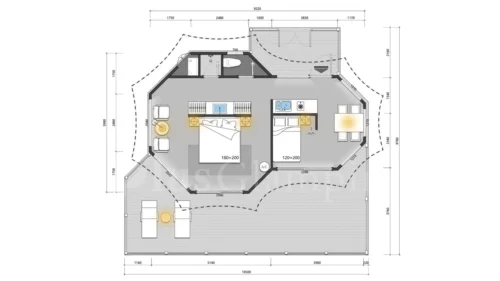

ZT42 Layout Design

ZT42 Layout Design

  • Structural Dimension: 6m*9.2m
  • Inside Area: 40.4m2
  • Inside Dimension: 5.9m*9.1m
  • Terrace Area: 43.7m2
  • External Height:(Top/Side) 6m/2.8m
  • Internal Height:(Top/Side) 3.9m/2.7m

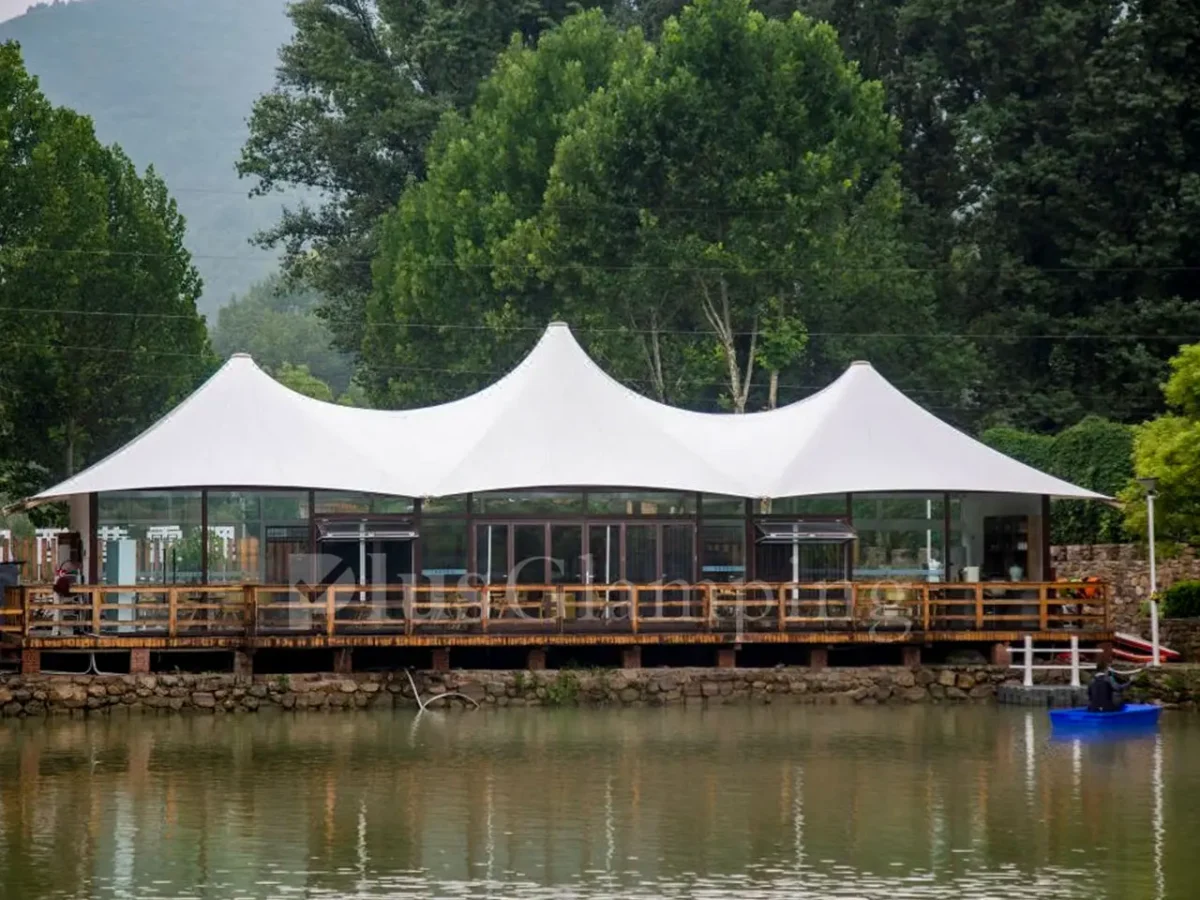

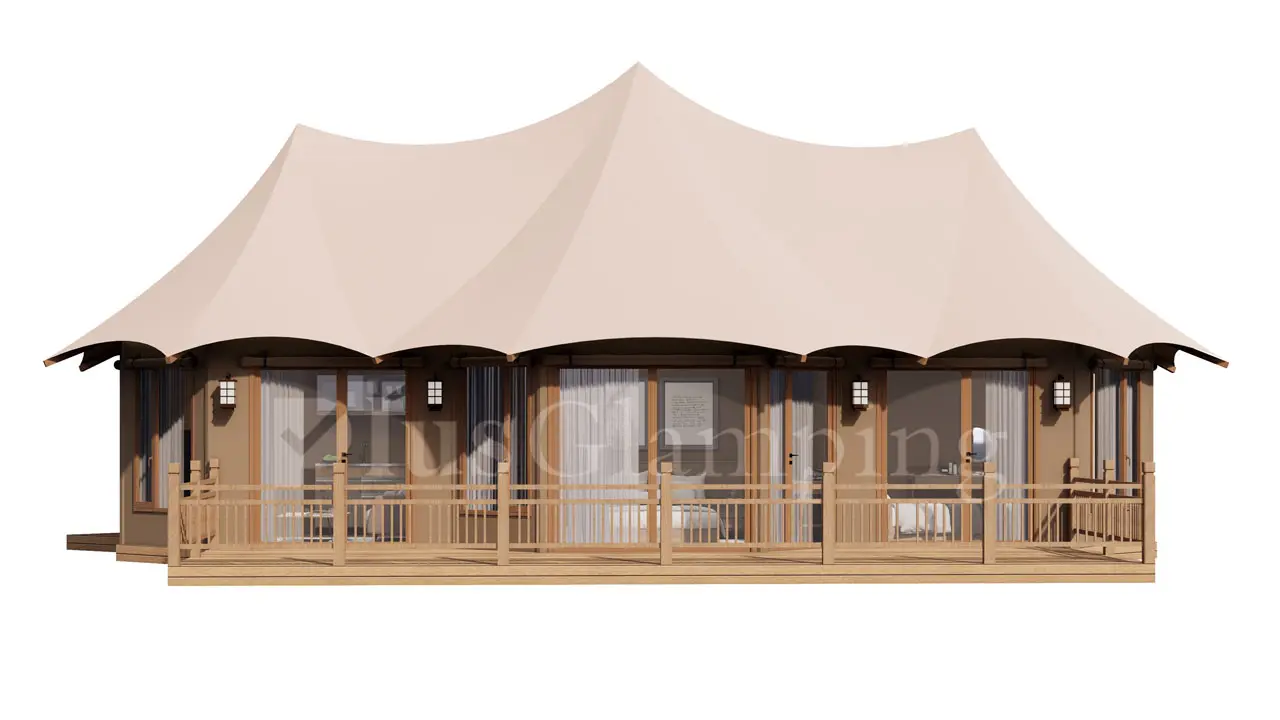

ZT60

ZT60

ZT60

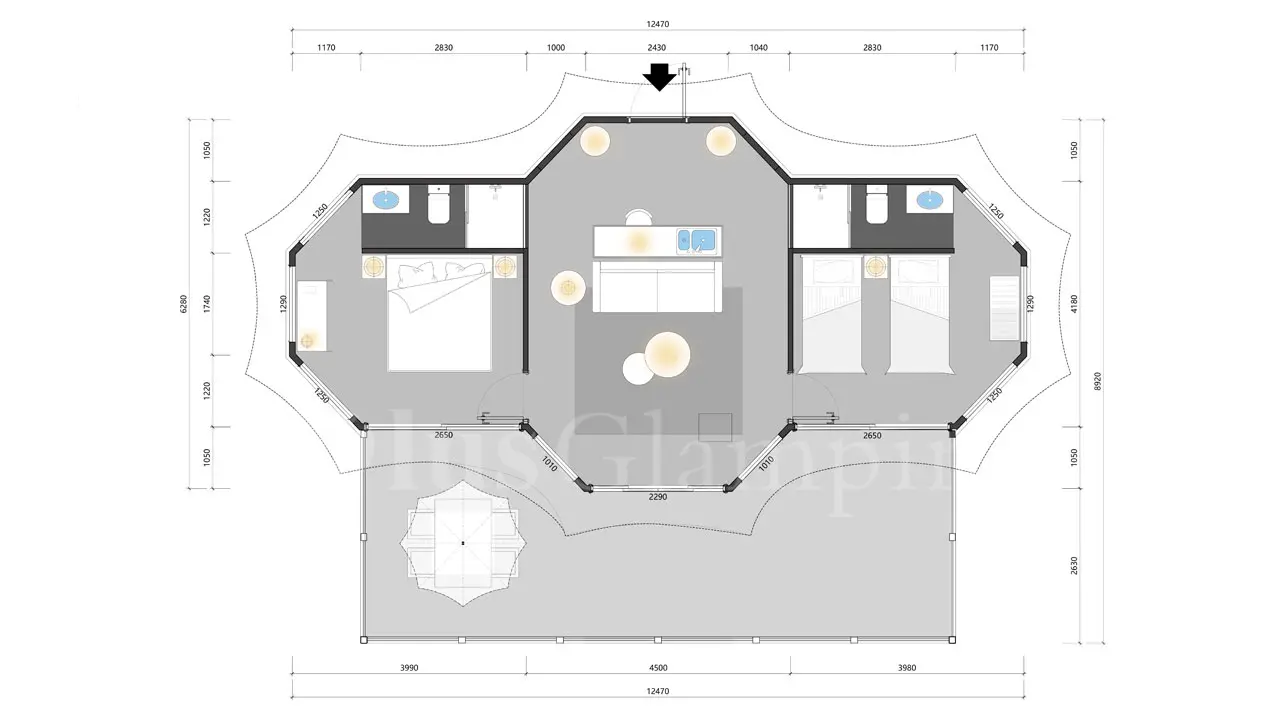

ZT60 Layout Design

ZT60 Layout Design

  • Structural Dimension: 6.3m*12.5m
  • Inside Area: 60m2
  • Inside Dimension: 6.2m*12.4m
  • Terrace Area: 35.6m2
  • External Height:(Top/Side) 6m/2.8m
  • Internal Height:(Top/Side) 3.9m/2.7m

Key Specifications

Carefully Selected and High Quality Materials
1
1050g PVDF architectural membrane
2
850g Thermal Insulation Fabric
3
Inner Tent: 450g Canvas
4
Rust-Proof Steel Connectors
5
Frames: ⌀80x4mm anti-rust coated steel.
6
SPC waterproof flooring/Multi-layer solid wood flooring Plastic wood flooring/20mm cement board Galvanized steel
  • Roof: 1050g PVDF architectural membrane
  • Second Roof: 850g Thermal Insulation Fabric
  • Inner Tent: 450g Canvas
  • Connectors: Rust-Proof Steel Connectors
  • Frames: ⌀80x4mm anti-rust coated steel
  • Flooring:
    • SPC waterproof flooring
    • Multi-layer solid wood flooring
    • Plastic wood flooring/20mm cement board
    • Galvanized steel

Color Options

Flexible and Diverse Color Options for Roof, Inner Tent and Frames

Roof Color Options

More Roof Colors

Beige
Khaki
Light Brown
Brown
Green
White

Inner Tent Color Options

Khaki
Beige
Quicksand Gold

Doors & Windows

Flexible and Diverse Color Options for Roof, Inner Tent and Frames

Window Details

Flooring Options

1
Frame: Steel + Wood or Rust-proof Steel
2
Facade: PVC/Solid Wood Panel or Glass Curtain Wall
  • Frame: Steel + Wood or Rust-proof Steel
  • Facade: PVC/Solid Wood Panel or Glass Curtain Wall

Frame Options

Steel + Wood

Steel + Wood

Facade Options(PVC/Solid Wall)

Walnut

Shaddock

Red Cedarwood

Facade Options(Glass Curtain Walll)

Black

Coffee

Wood
