Prefab House LH Series

Classic, High ROI, Affordable and Elegant

The LH series prefab house, inspired by the classic golden rectangle and the aesthetics of order of the Dutch artist Piet Mondrian, provides a sanctuary of style, comfort, and quality for those who pursue a luxurious vacation style, known as the "villa backyard house" landscape shelter. LH series adopts an energy-saving design, strong and durable materials, is more environmentally friendly, and is cost-effective than ordinary houses; performance,multi-layer wall, roof, and floor systems, avia-

Prefab House LH5

Prefab House LH7

Model Comparison

Size, area, capacity, and typical configuration

Select Glamping Tent by Price, Area

Model	Guests	Dimensions	Area	Height	Bedroom	Bathroom	Living
LH5	2 People	9m x 4m	36 m²	3.4 m	1	1	1 Room
LH7	2-4 People	12m x 4m	48 m²	3.4 m	2	1	1 Room

Dimensions & Layout

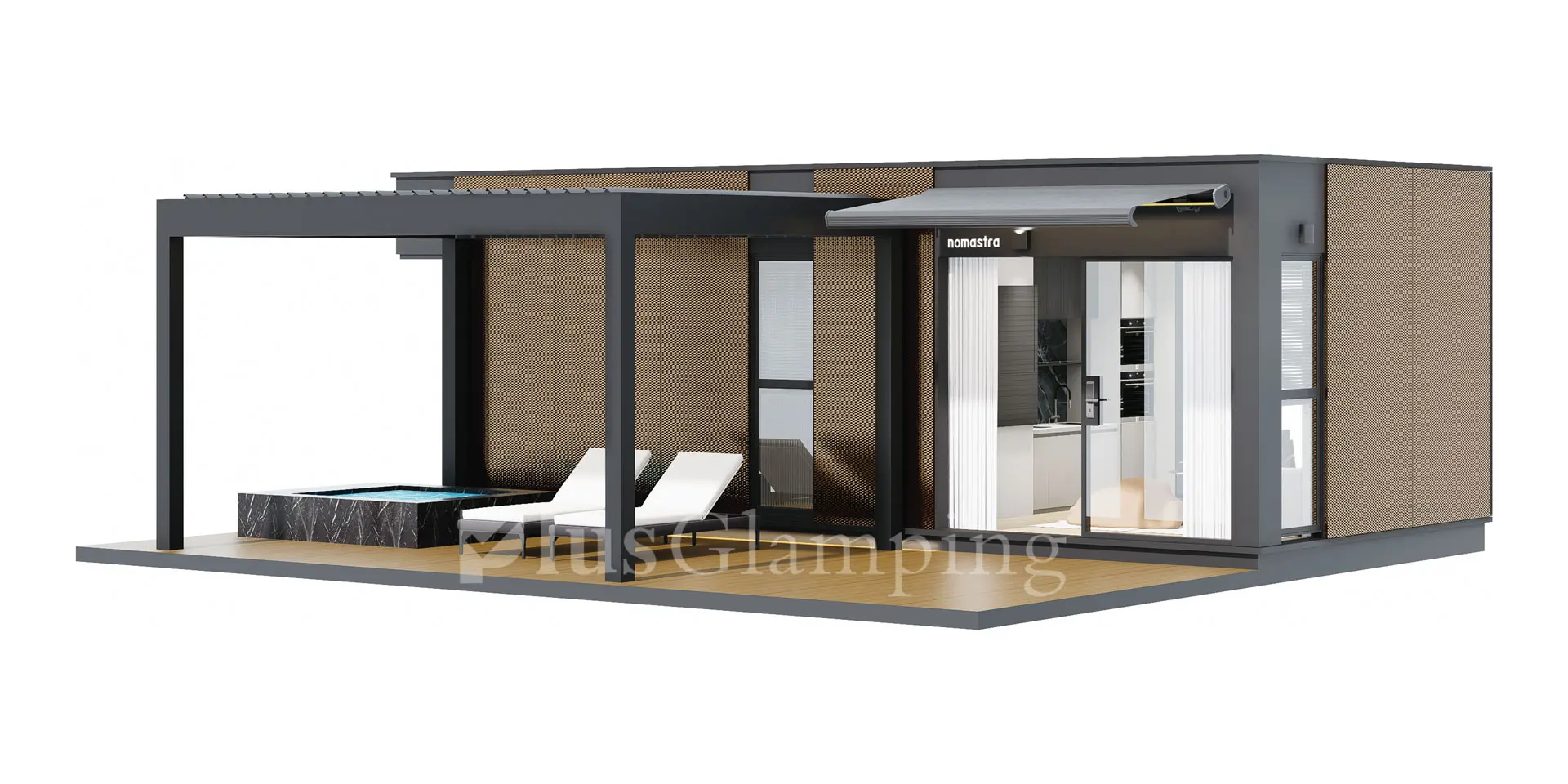

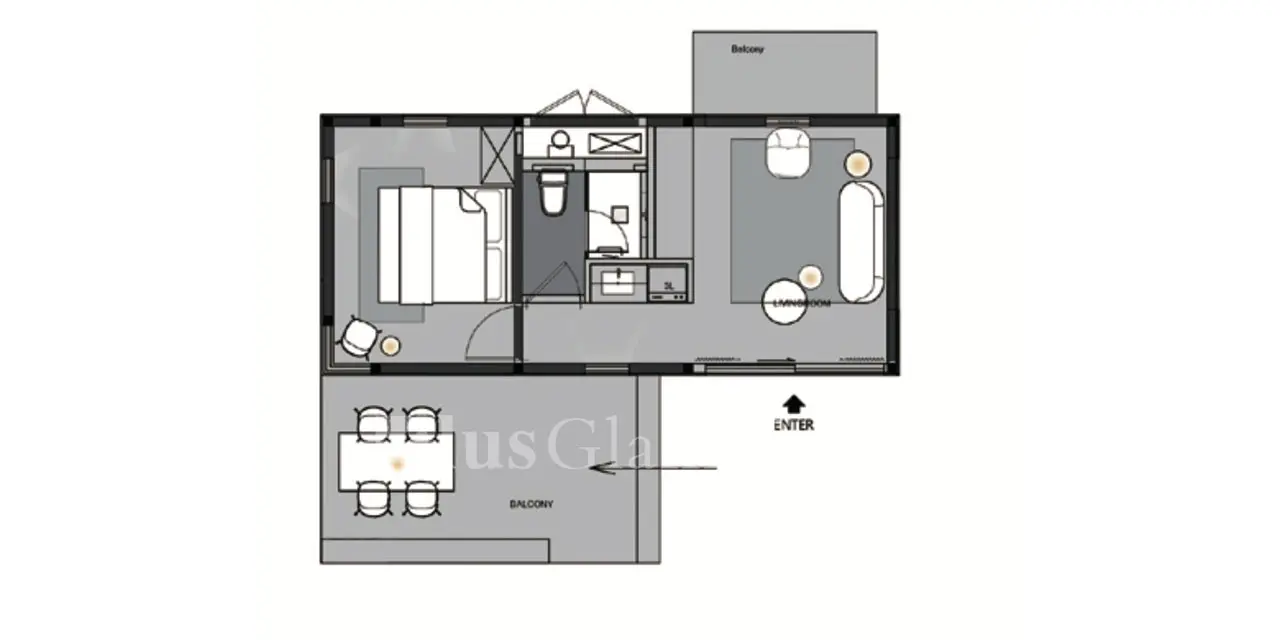

LH5

Layout Design

Dimensions

Structural Dimensions: 9 x 4 x 3.4m
Floor plan: 1 living room, 1 bedroom, 1 bathroom

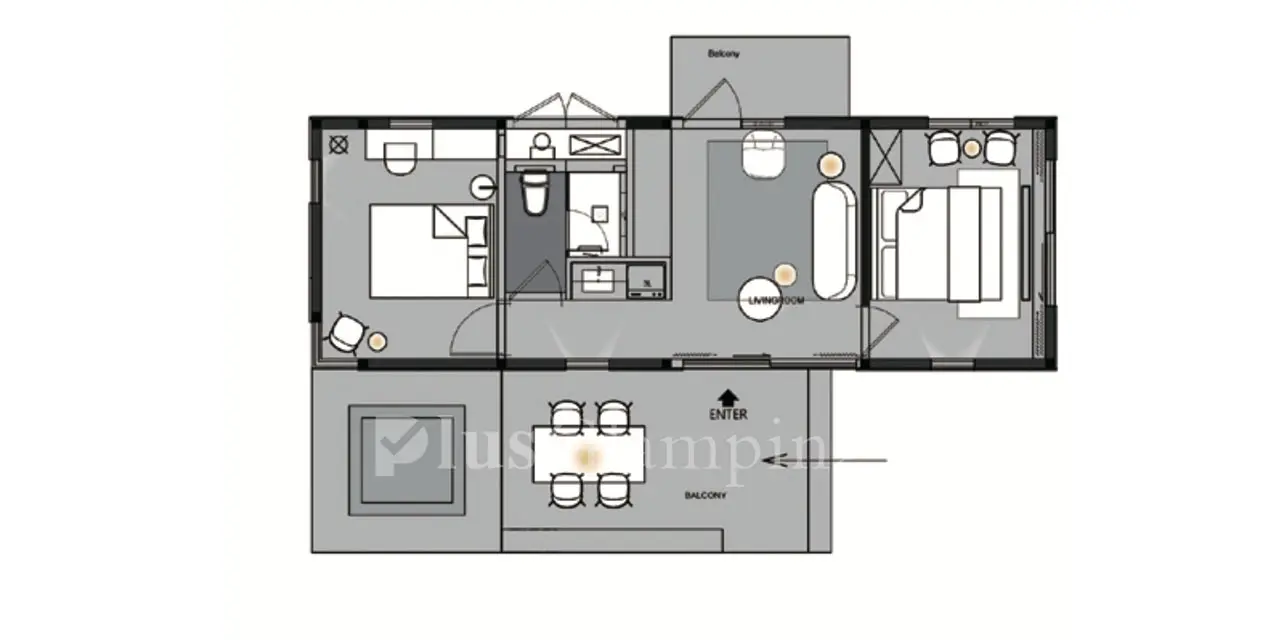

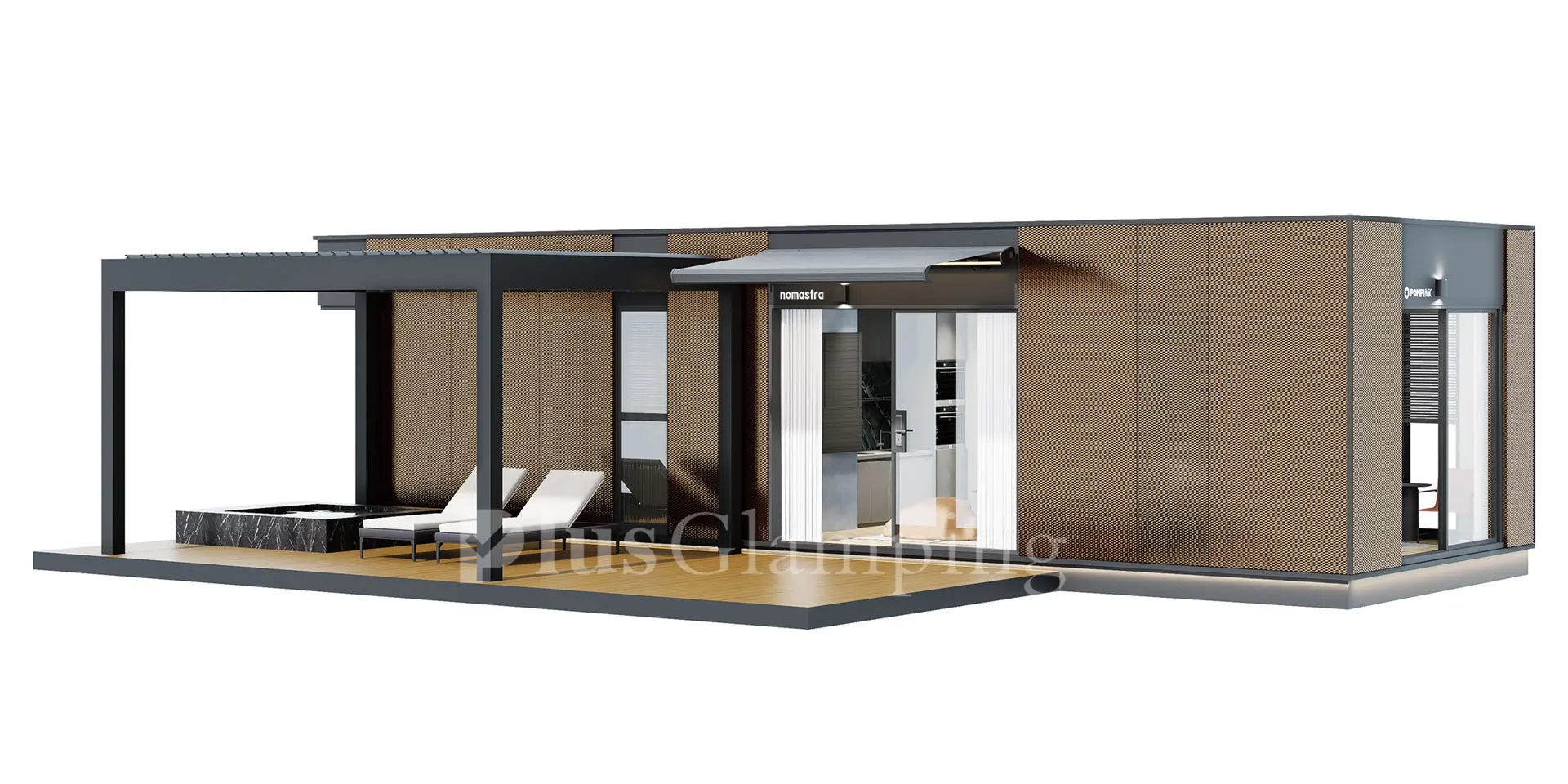

LH7

Layout Design

Dimensions

Structural Dimensions: 12 x 4 x 3.4m
Floor plan: 1 living room, 2 bedroom, 1 bathroom

Key Specifications

Carefully Selected and High Quality Materials

1

Insulated aluminum roof tile

2

Waterproofing membrane

4

Wall System:

5

Ground & Flooring System:

3

Frames

Roofing System: 45mm Insulated Aluminum Composite Roof with Solid Aluminum Capping
Composite Waterproof and Thermal Insulation Filling Layer
Frames: 100x100x5mm Hot-dip Galvanized Steel Frame
Integrated Wall System:
- 2mm Solid Aluminum Cladding
- Western Red Cedar Siding(Partial)
- Composite Waterproof & Thermal Insulation Infill
- Thermal Break Aluminum with Switchable Smart Glass(Partial)
Ground & Flooring System
- Premium SPC Waterproof Flooring
- 100x100x5mm Hot-dip Galvanized Steel Joists
- Fiber Cement Board
- Waterproofing Membrane
- Phenolic Foam (PF) Insulation Infill
