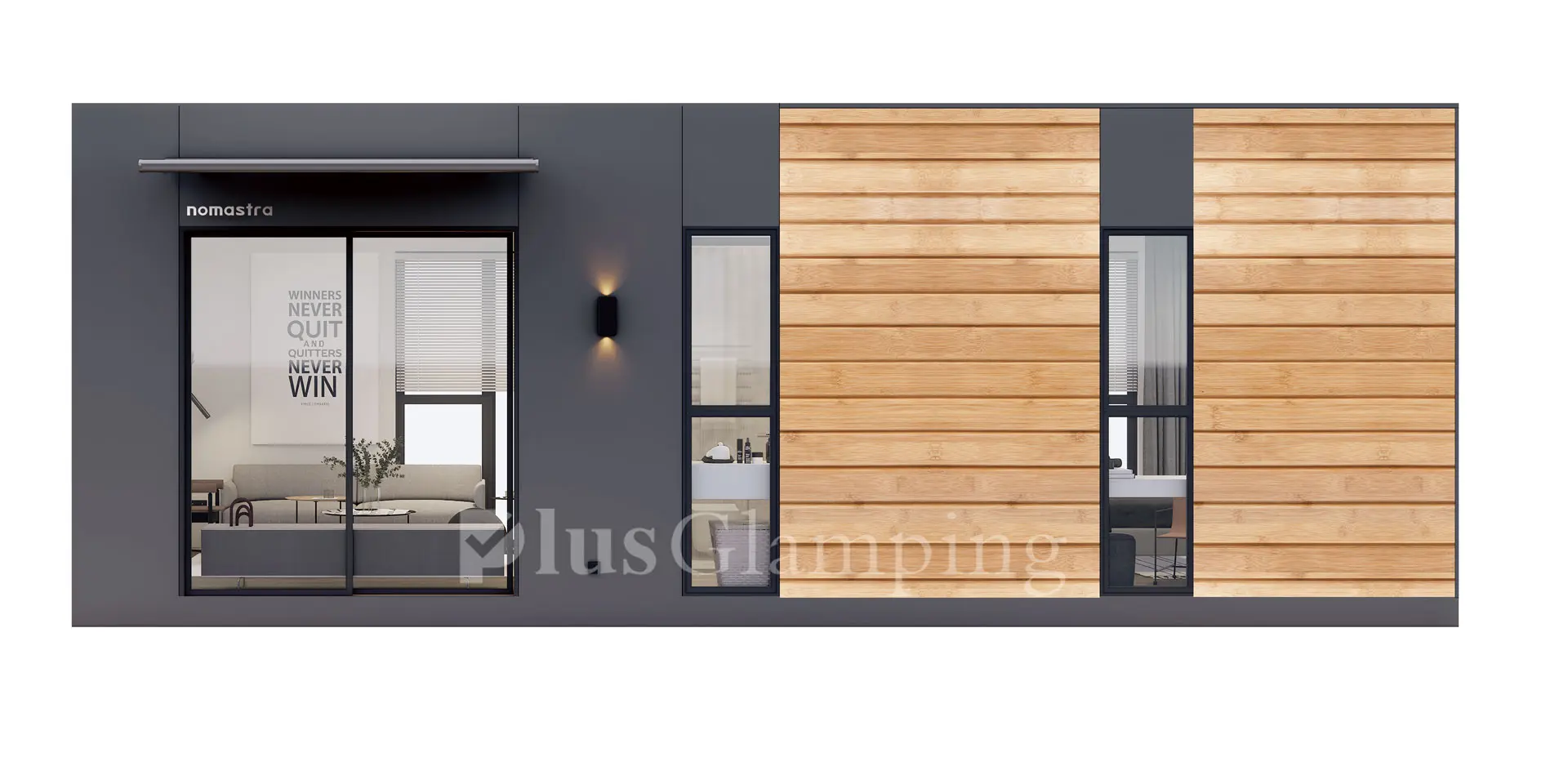

Prefab House LY Series

Classic, High ROI, Affordable and Elegant

Inspired by the principle of "simplicity above all", the aluminum house LY series seamlessly blends the rich heritage of ancient Chinese square architecture with modern minimalist trends. Its design features clean lines that maintain a harmonious rhythm.

These durable and environmentally friendly aluminum houses offer superior performance, with excellent resistance to seismic activity, wind, and harsh weather. They also provide exceptional heat insulation and warmth preservation. The modular design makes them incredibly easy to build, significantly reducing construction costs. With standardized assembly and an integrated whole-house intelligent system, the LY series creates a truly comfortable living experience.

Model Comparison

Size, area, capacity, and typical configuration
Model
Guests
L x W Dimensions
Area
Height
Bedroom
Bathroom
Config
LY5 LY5 2 People 9m x 4m 36 m² 3.4 m 1 1 Living Room
LY7 LY7 2-3 People 11m x 4m 44 m² 3.4 m 1 1 Living + Kitchen

Dimensions & Layout

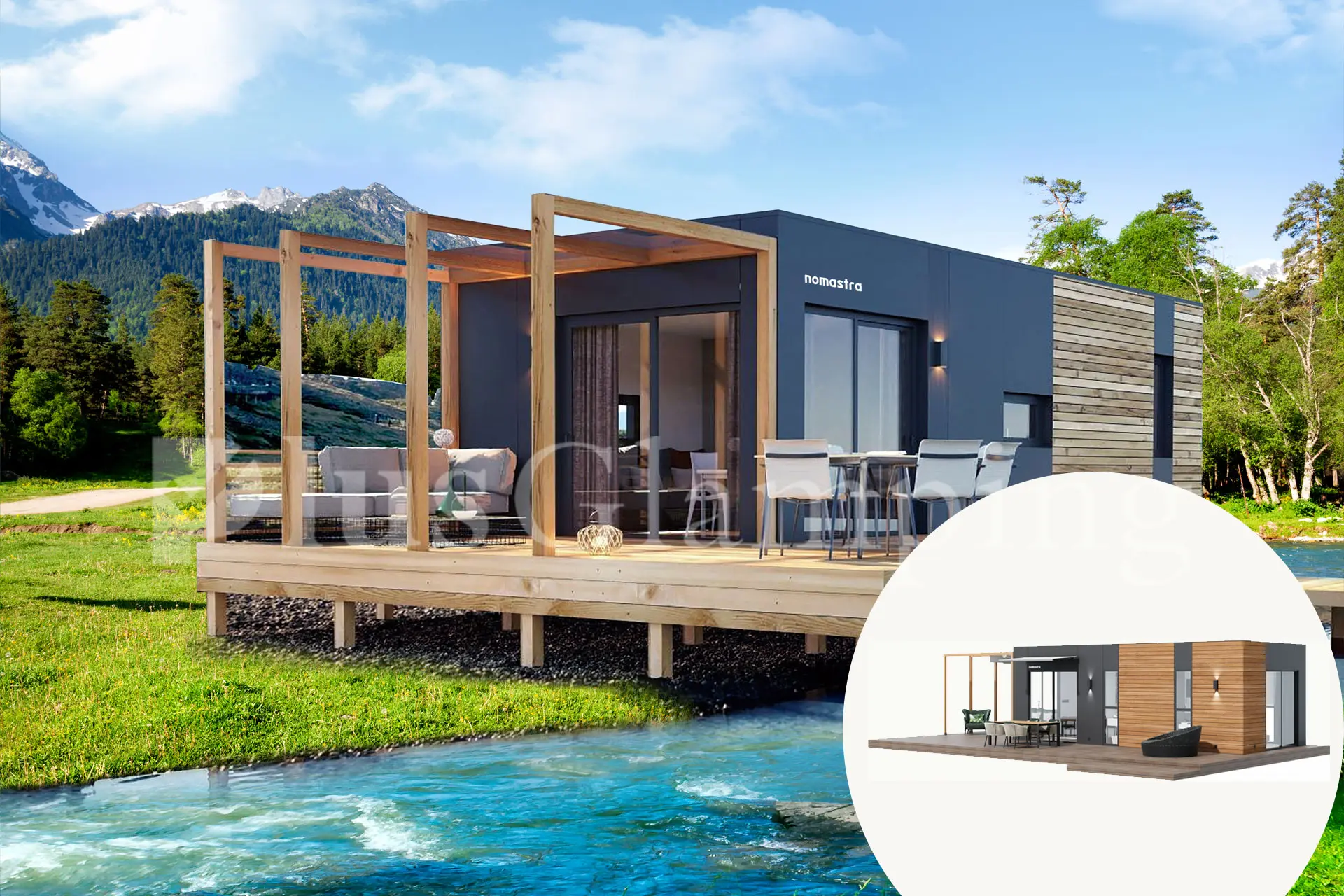

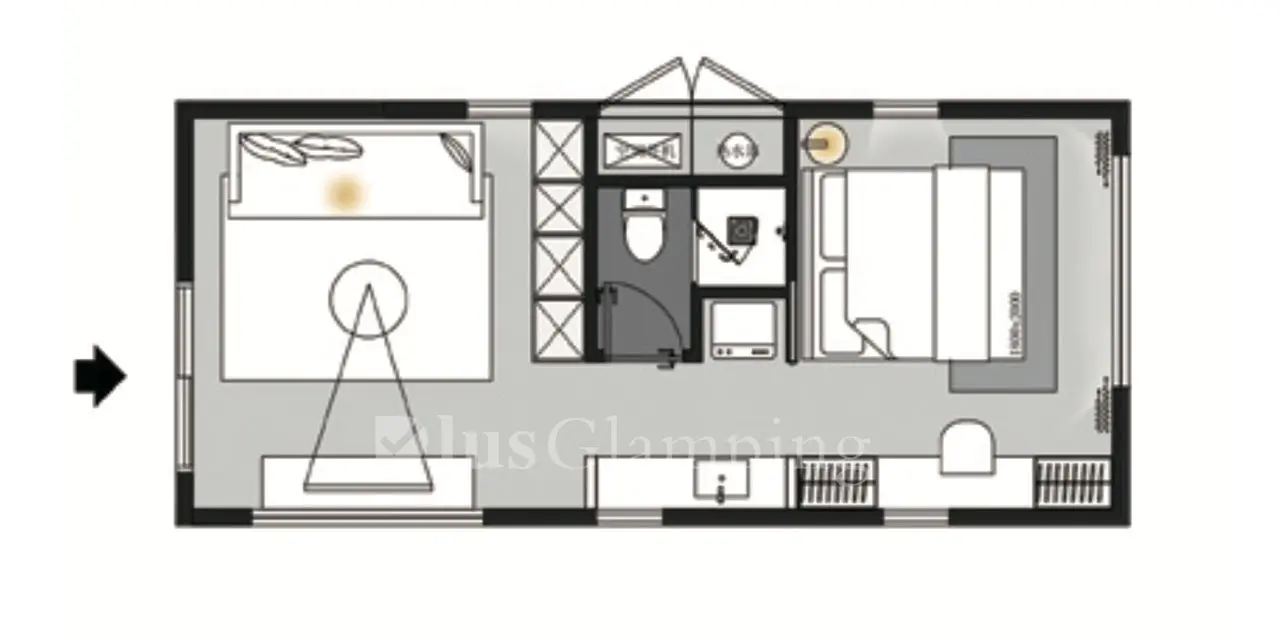

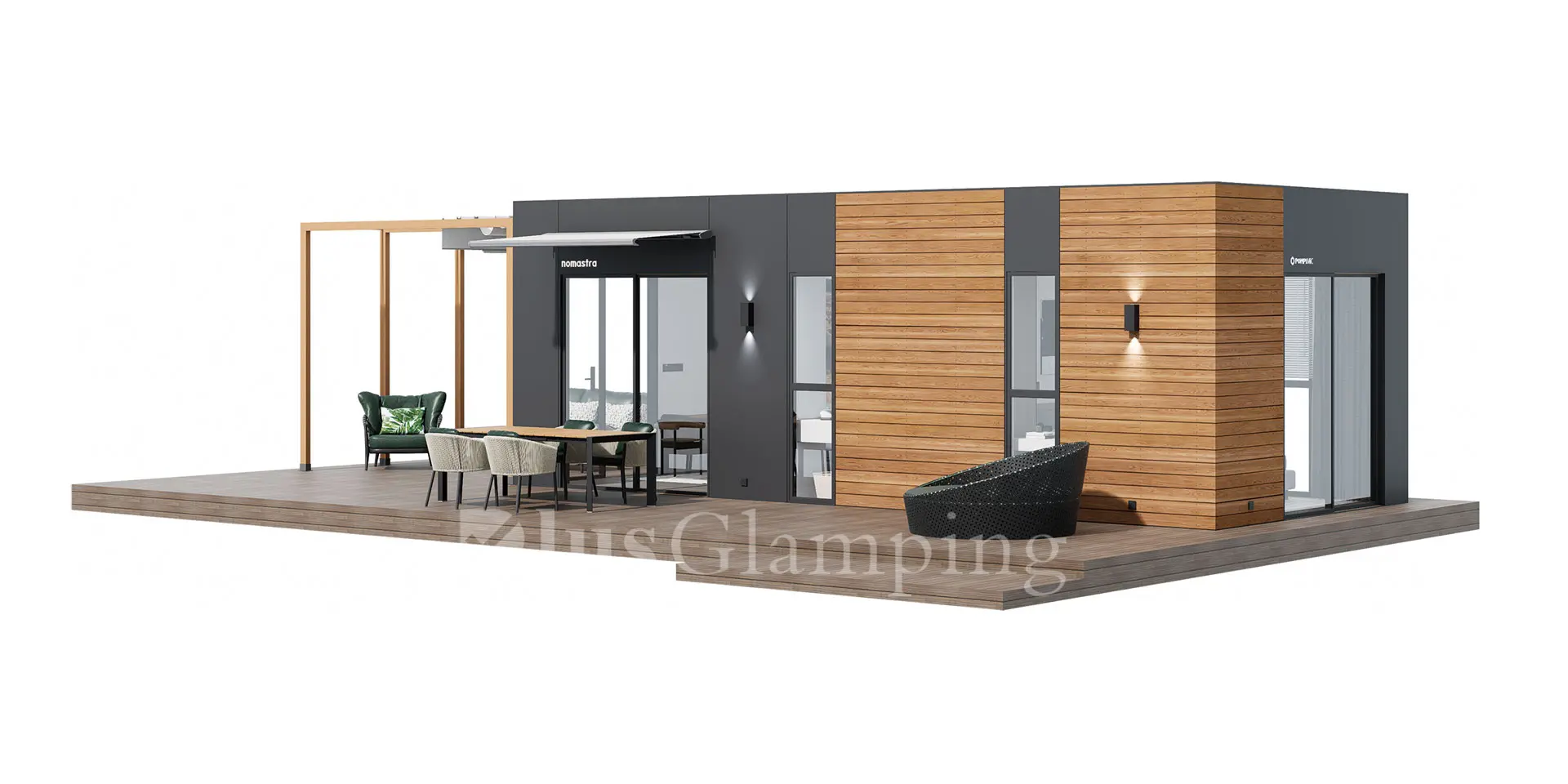

LY5

Layout Design

Dimensions

  • Structural Dimensions: 9 x 4 x 3.4m
  • Floor plan: 1 living room, 1 bedroom, 1 bathroom

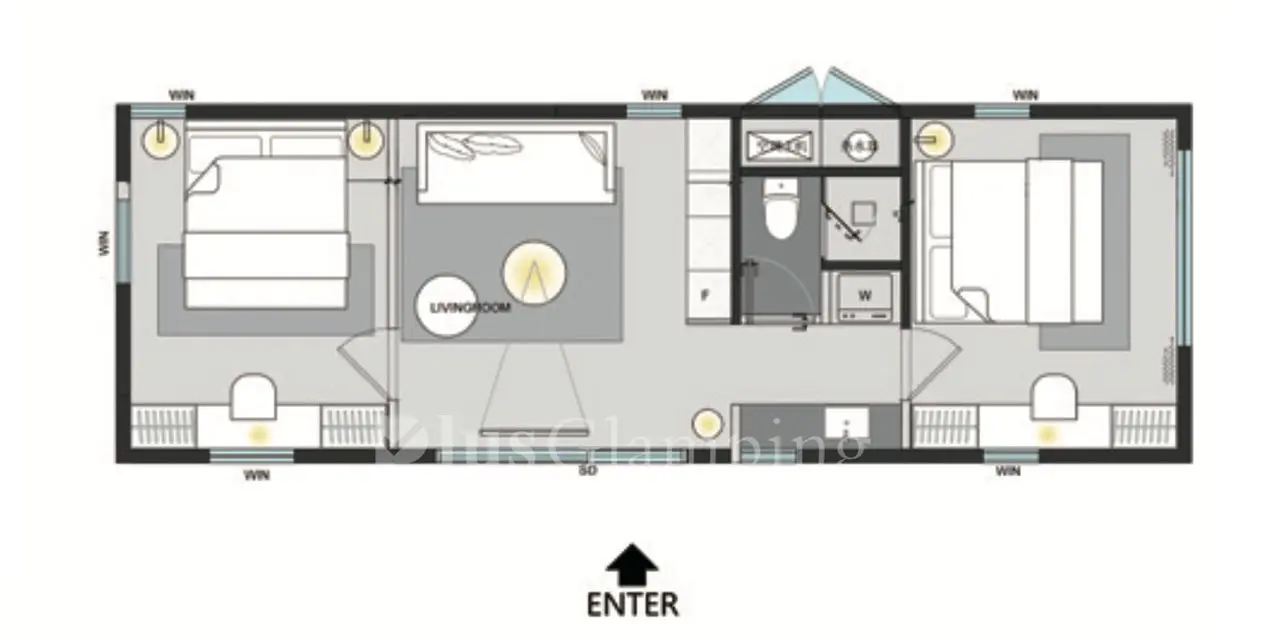

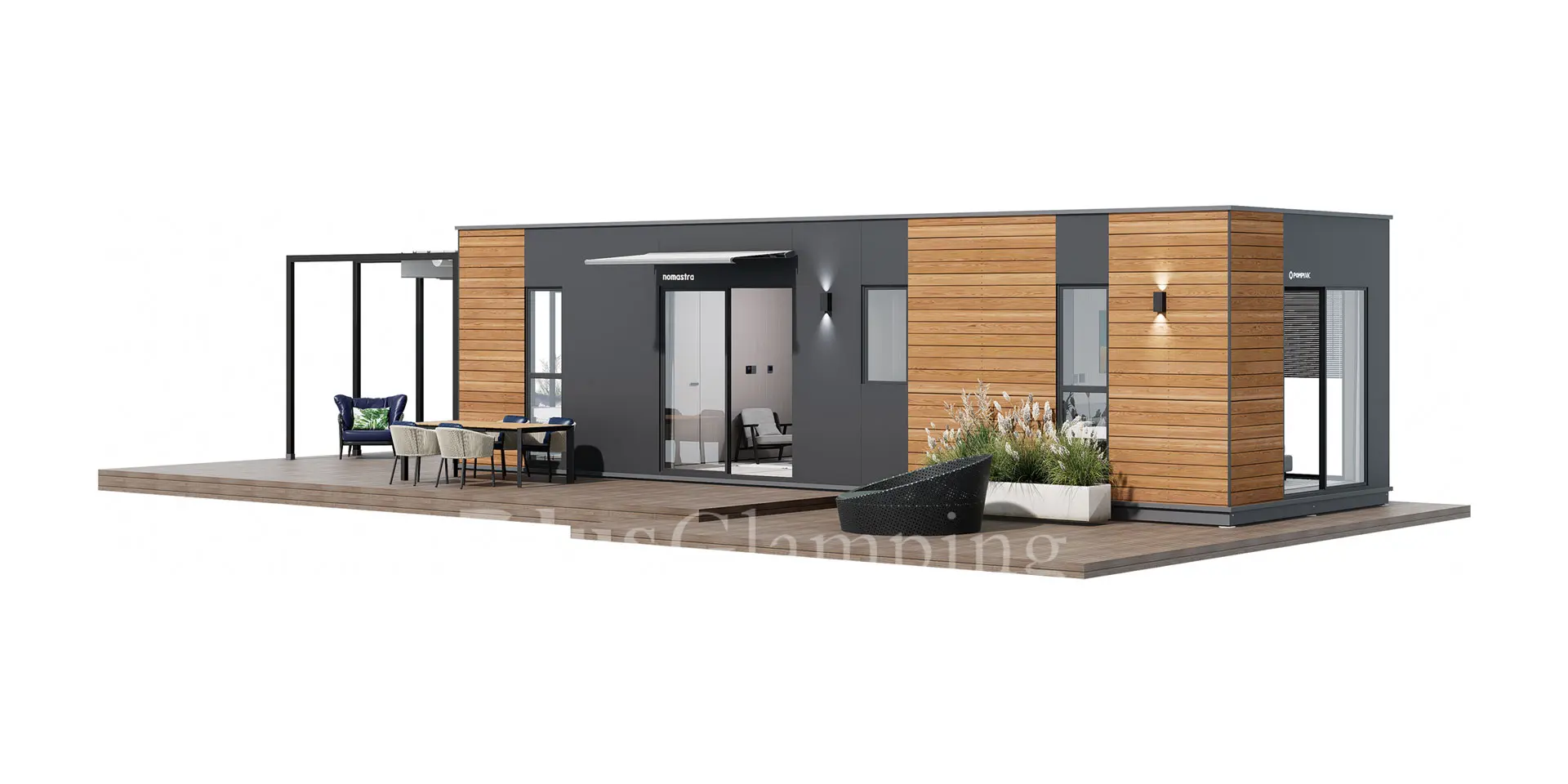

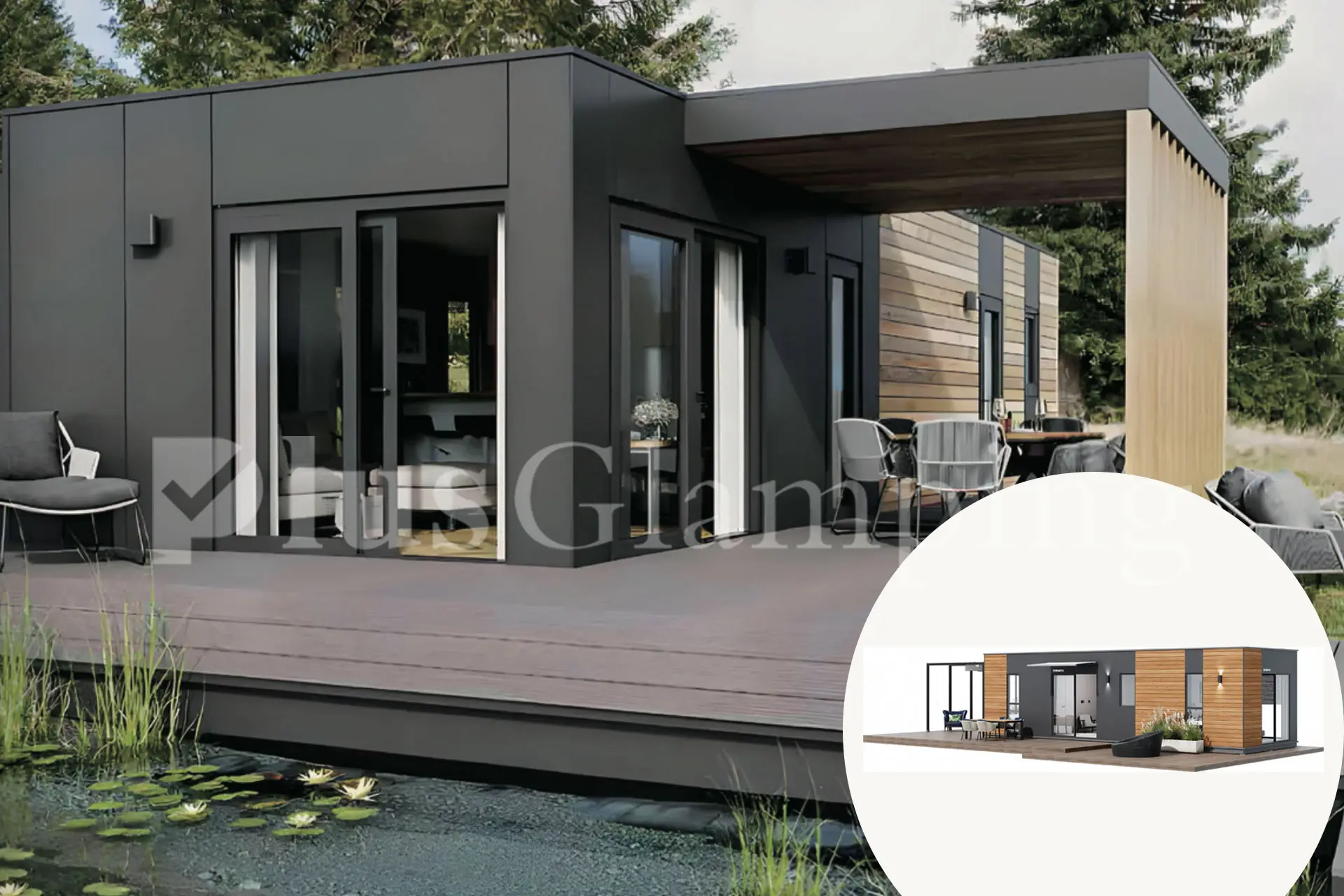

LY7

Layout Design

Dimensions

  • Structural Dimensions: 11 x 4 x 3.4m
  • Floor plan: 1 living room, 1 bedroom, 1 bathroom, 1 kitchen

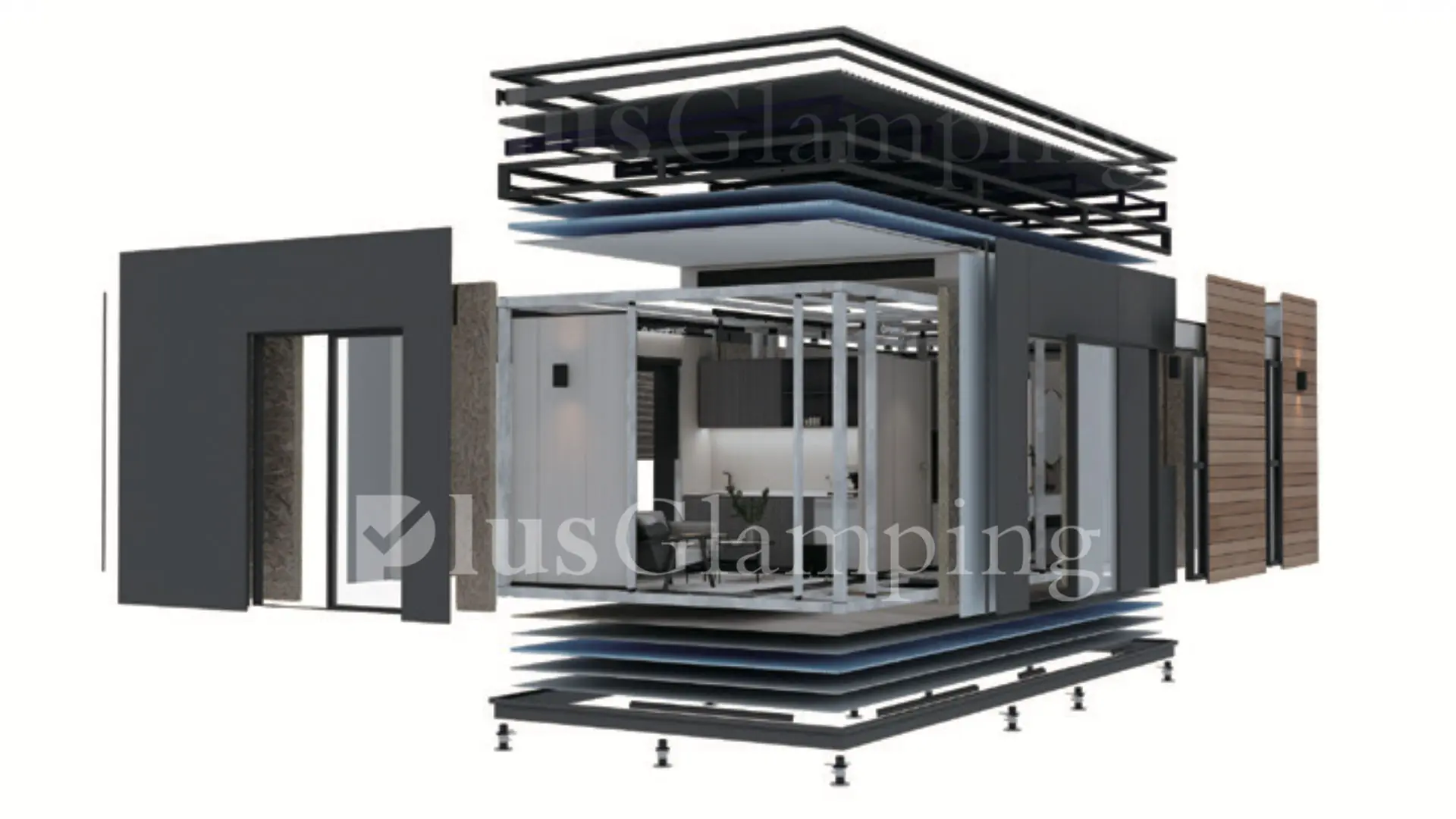

Key Specifications

Carefully Selected and High Quality Materials
1
Insulated aluminum roof tile
2
Waterproofing membrane
4
Wall System:
5
Ground & Flooring System:
3
Frames
  • Roofing System: 45mm Insulated Aluminum Composite Roof with Solid Aluminum Capping
  • Composite Waterproof and Thermal Insulation Filling Layer
  • Frames: 100x100x5mm Hot-dip Galvanized Steel Frame
  • Integrated Wall System:
    • 2mm Solid Aluminum Cladding

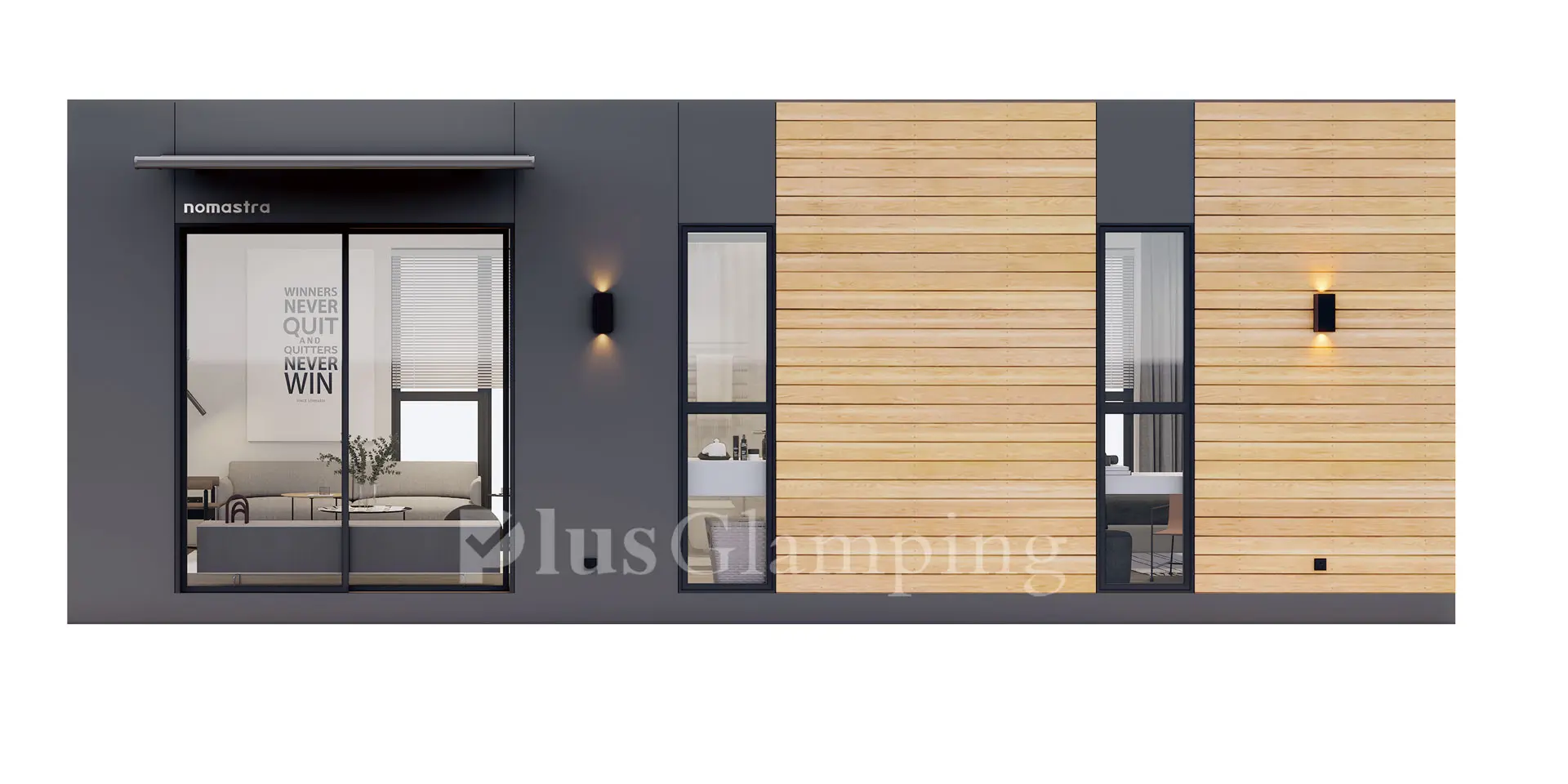

    • Western Red Cedar Siding(Partial)
    • Composite Waterproof & Thermal Insulation Infill
    • Thermal Break Aluminum with Switchable Smart Glass(Partial)
  • Ground & Flooring System
    • Premium SPC Waterproof Flooring
    • 100x100x5mm Hot-dip Galvanized Steel Joists
    • Fiber Cement Board
    • Waterproofing Membrane
    • Phenolic Foam (PF) Insulation Infill

Wall System Details

Ground & Flooring System Details

Color Options

Flexible and Diverse Color Options for Roof, Inner Tent and Frames
1
Decorative Aluminum Mesh Screens
2
Decorative Facade Cladding
3
Door & Windows
1
Decorative Aluminum Mesh Screen

Decorative Aluminum Mesh Screen Color Options

Beige
Dark Grey
Coffee Color
Silver Grey
Romany Purple
Charming Purple

Facade Material/Color Options

Interior Options

Flexible and Selected Interior Configuration, Facilities, and Furniture
