Tent House G Series

New Design, New Tech, New Glamping High ROI, Affordable

The broad and elegant dome, like a gigantic white cloud under the sky, slowly spreads out over the earth, forming a seamless connection with the surrounding natural landscape. The ⌀8 80x4 mm steel with anti-rust coating formally supports the entire framework. sheltering the cozy vacation cottage from the wind and rain, building a reassuring "safe haven" that can withstand strong winds of up to force 9

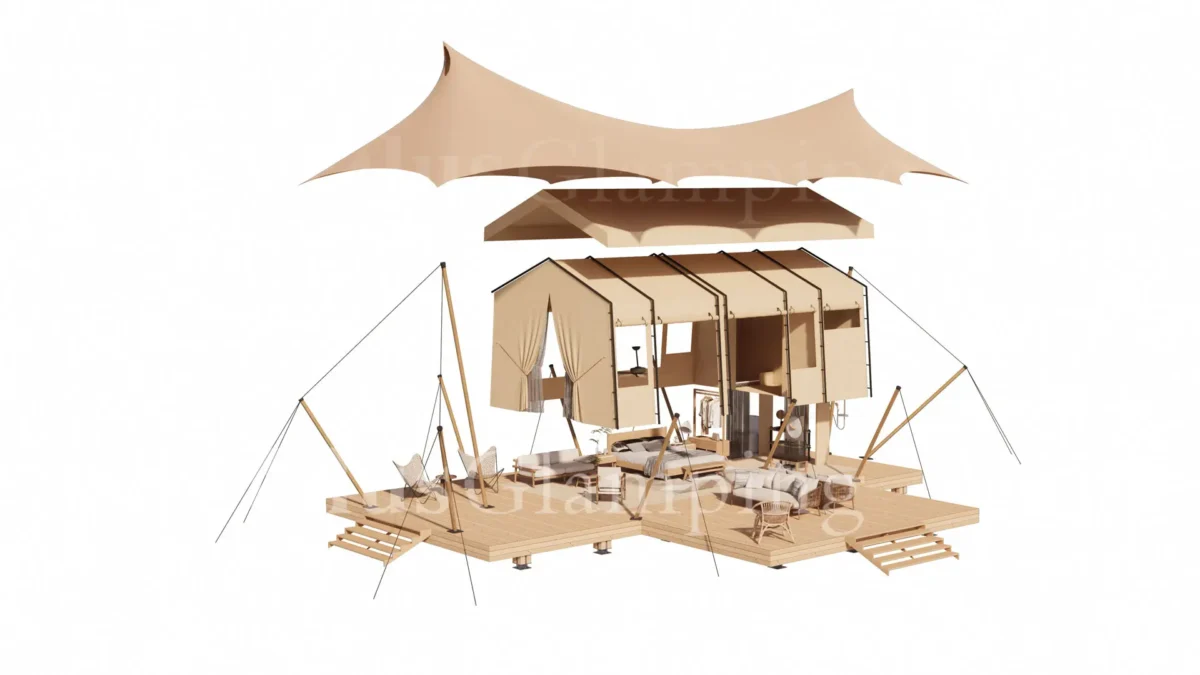

Tent House G Series Breakdown

High ROI

Lifespan

Up to 15 years

Working Temperature

-15℃ to +60℃

Wind Resistance

Up to level 9

Flame Retardent

Moisture Proof & Mildew Resistance

Safari Tent Glamping Resort

For Luxury Hotel

For Glamping Resort

Model Comparison

Size, area, capacity, and typical configuration

Select Glamping Tent by Price, Area

Model	Guests	Projected	Inside	Veranda*	Bedroom	Bathroom	Kitchen
G3	2 People	86 m²	28.8 m²	~32 m²	1	Optional	Optional
G3+	2 People	75 m²	28.8 m²	~63 m²	1	Optional	Optional
G5	2-4 People	100 m²	38.7 m²	~35 m²	1-2	Yes	Yes
G5+	2-4 People	93 m²	38.7 m²	~72 m²	1-2	Yes	Yes
G7	4-6 People	290 m²	28.8 m² x 2 (2 Rooms)	Custom	2	Yes	Yes
G7+	4-6 People	290 m²	38.7 m² x 2 (2 Rooms)	Custom	2	Yes	Yes

Video

Watch now to discover why the Tent House G5 is the perfect choice for your next glamping project.

Dimensions & Layout Design

G3, G3+, G5, G5+, G7 and G7+

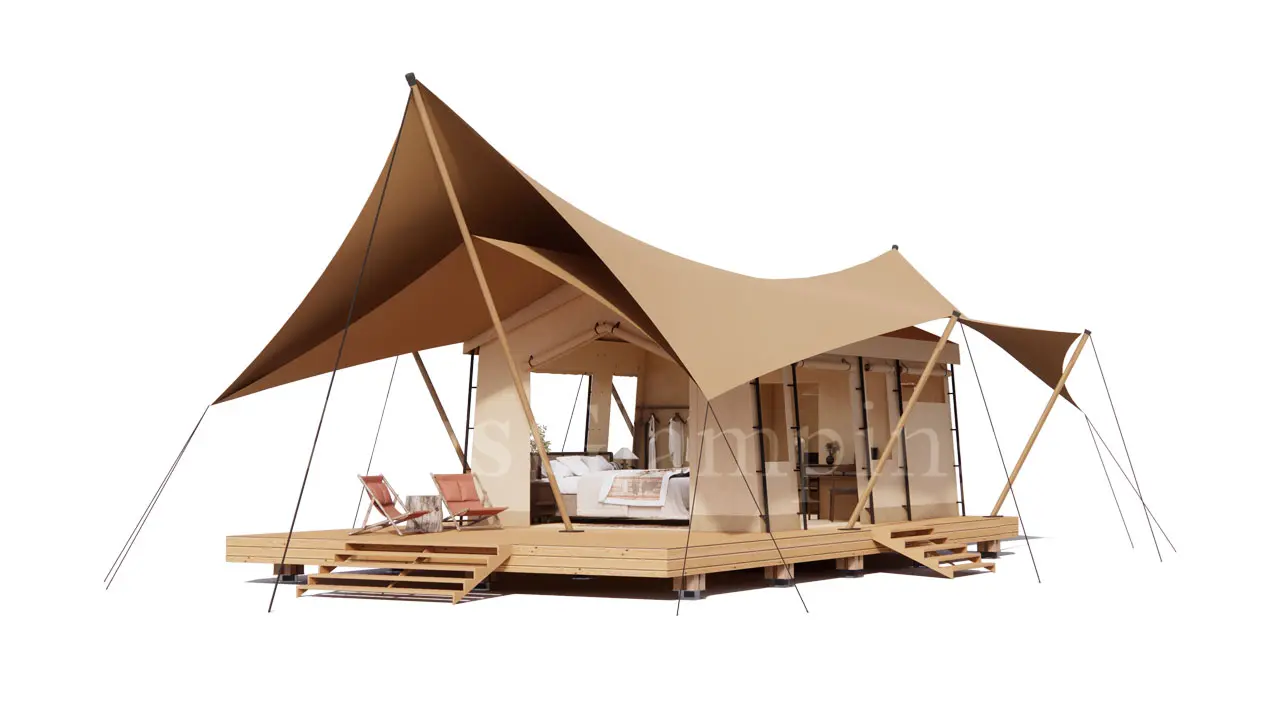

G3

G3

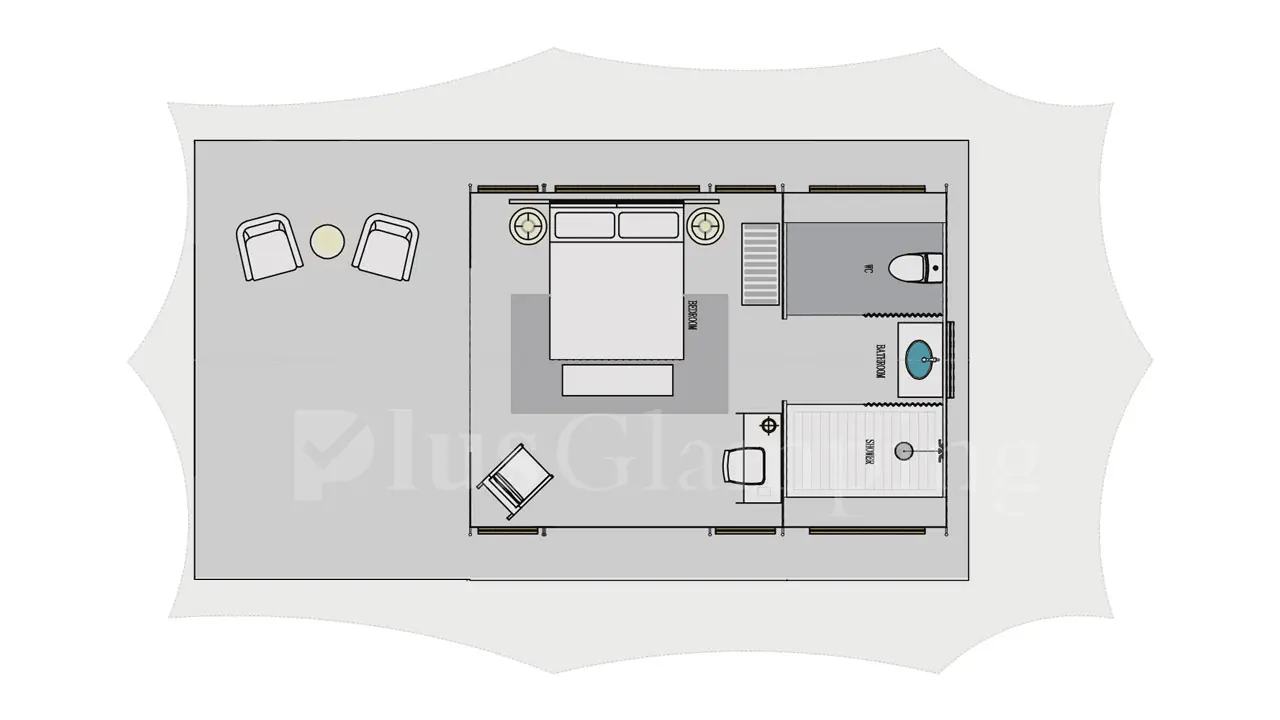

G3 Layout Design

Projected Area: 86m²
Structural Dimension: 13.1m*8m
Platform: 10.4m*5.9m
Inside Dimension: 6.4m*4.5m
External Height:(Top)5m
Internal Height:(Top/Side) 3.2m/2.5m

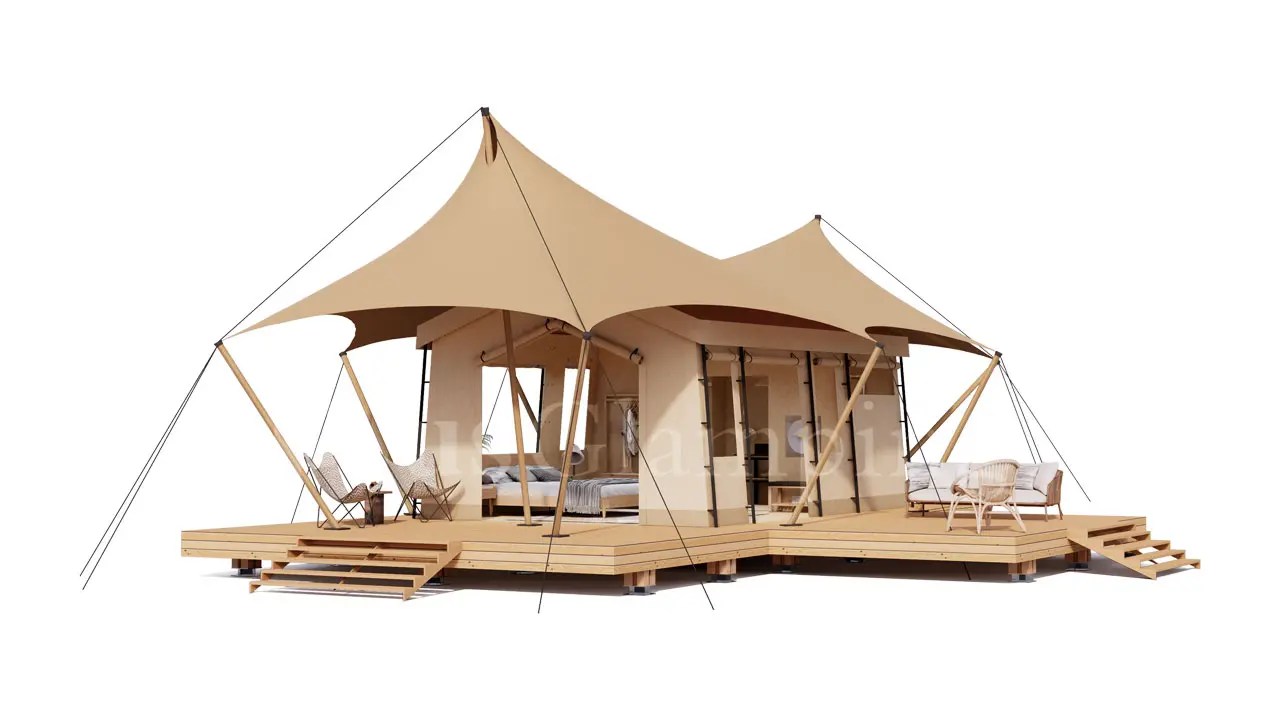

G3+

G3+

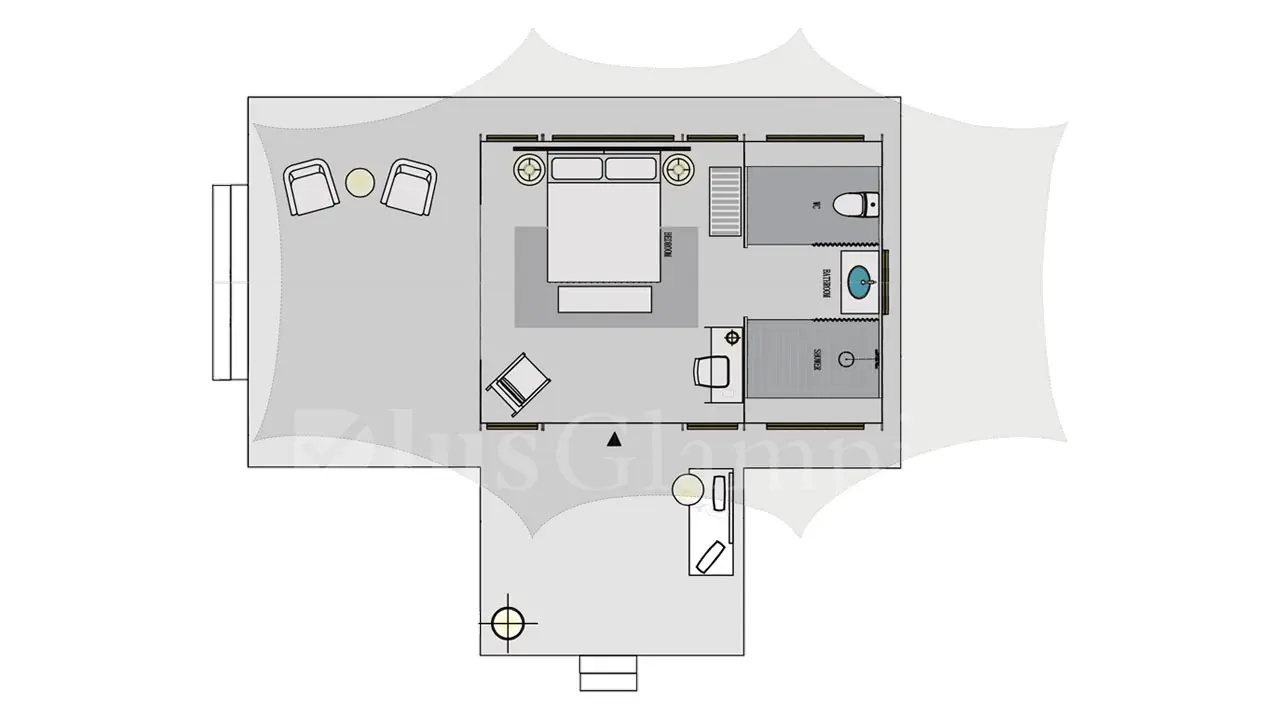

G3+ Layout Design

Projected Area: 75m²
Structural Dimension: 12.8m*8m
Platform: 10.4m*8.9m
Inside Dimension: 6.4m*4.5m
External Height:(Top)5m
Internal Height:(Top/Side) 3.2m/2.5m

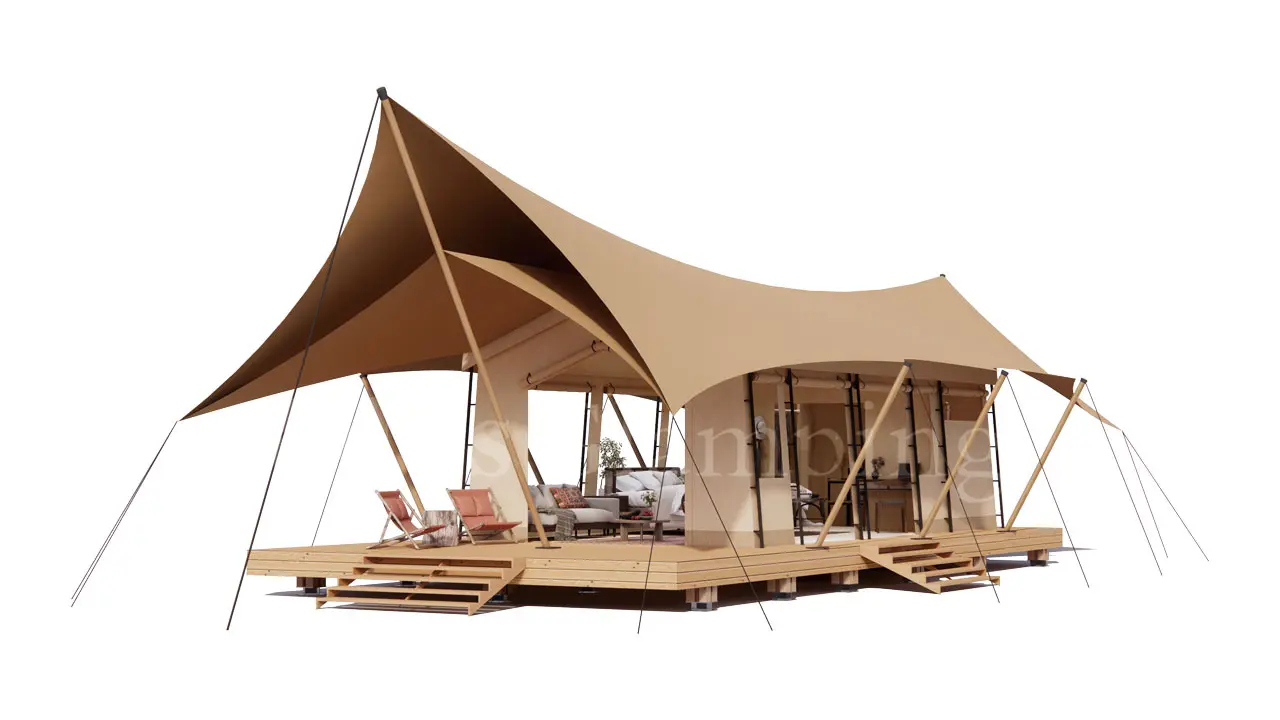

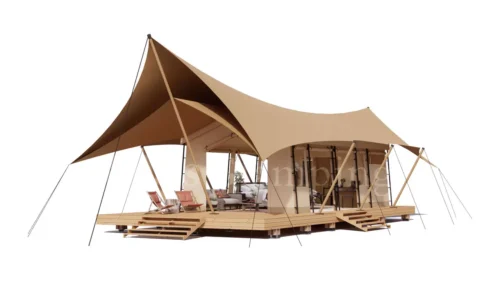

G5

G5

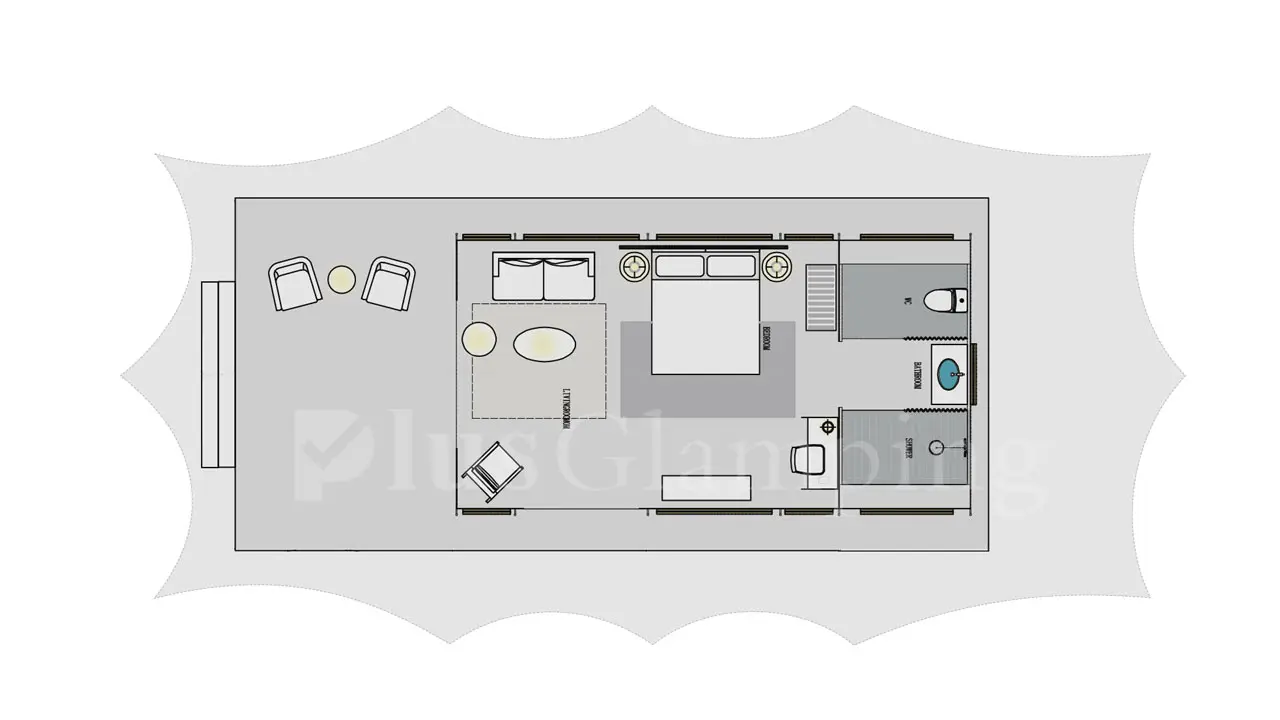

G5 Layout Design

Projected Area: 100m²
Structural Dimension: 15.8m*8m
Platform: 12.5m*5.9m
Inside Dimension: 8.6m*4.5m
External Height:(Top)5.2m
Internal Height:(Top/Side) 3.3m/2.2m

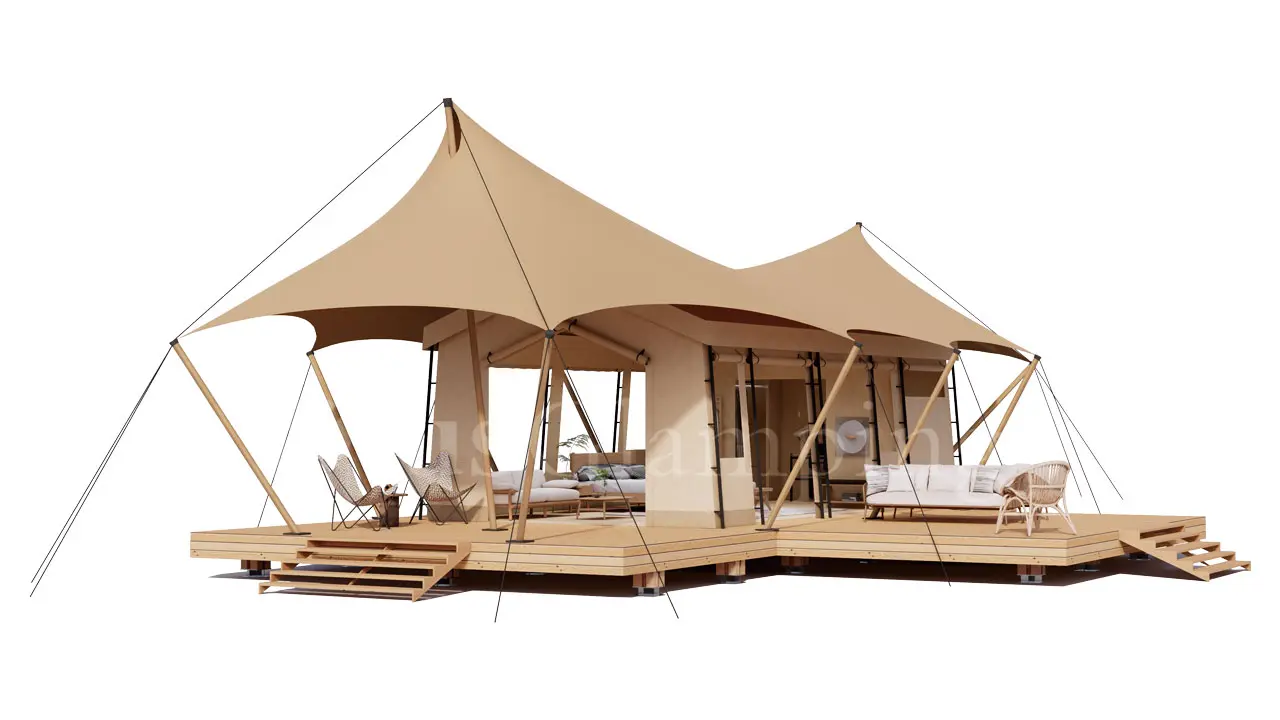

G5+

G5+

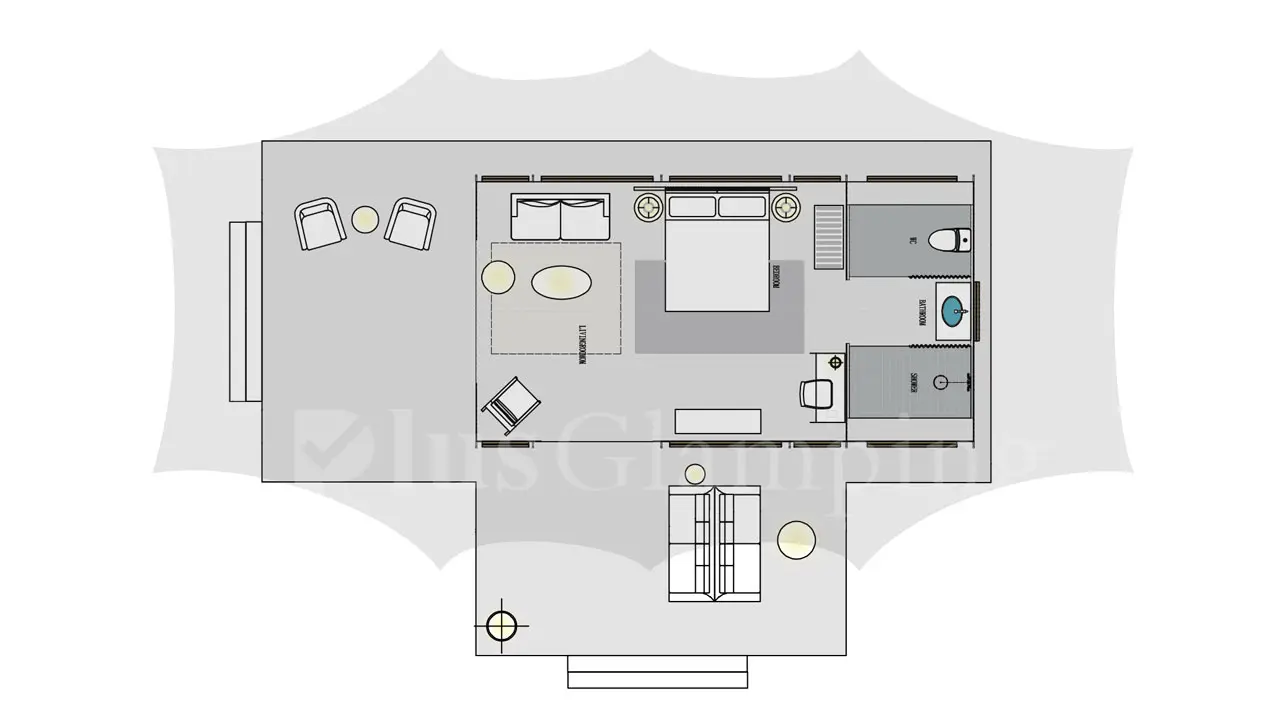

G5+ Layout Design

Projected Area: 93m²
Structural Dimension: 15m*8m
Platform: 12.5m*8.9m
Inside Dimension: 8.6m*4.5m
External Height:(Top)5m
Internal Height:(Top/Side) 3.2m/2.5m

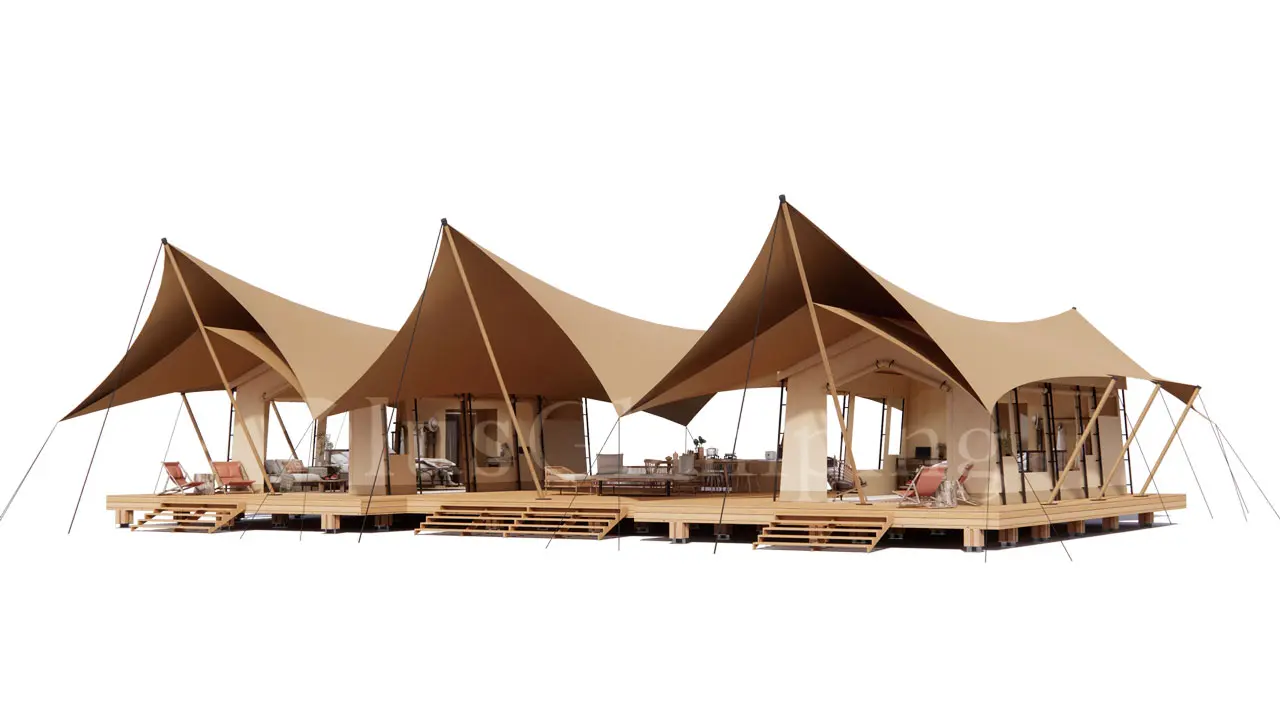

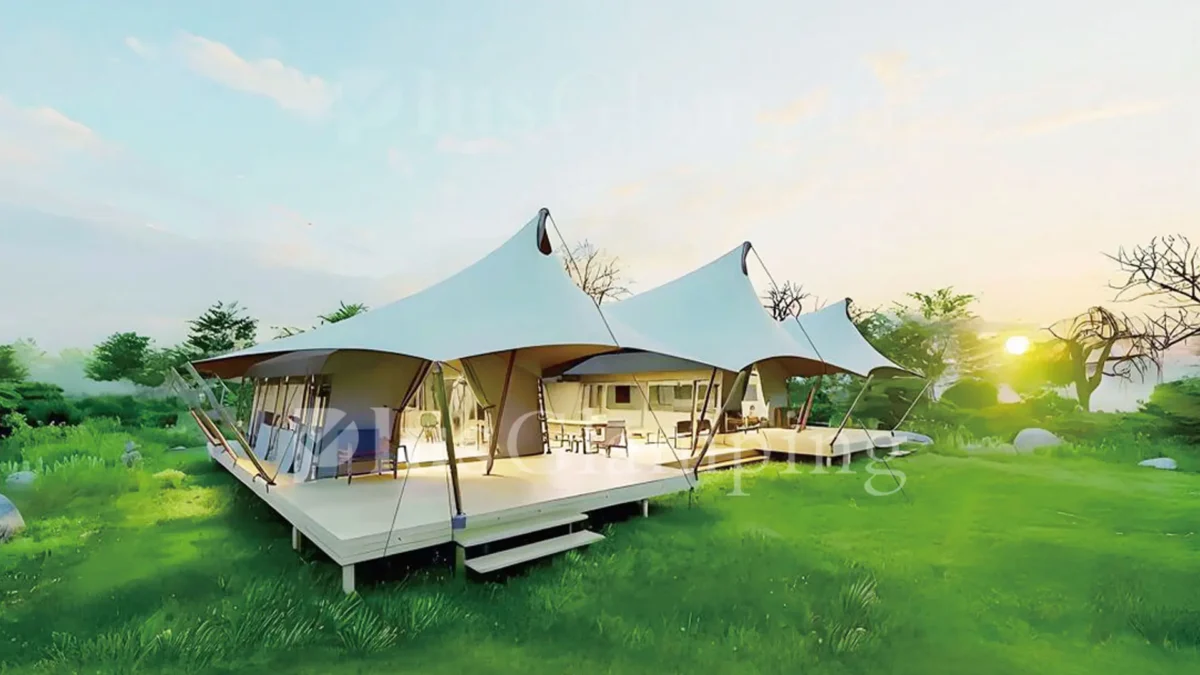

G7

G7

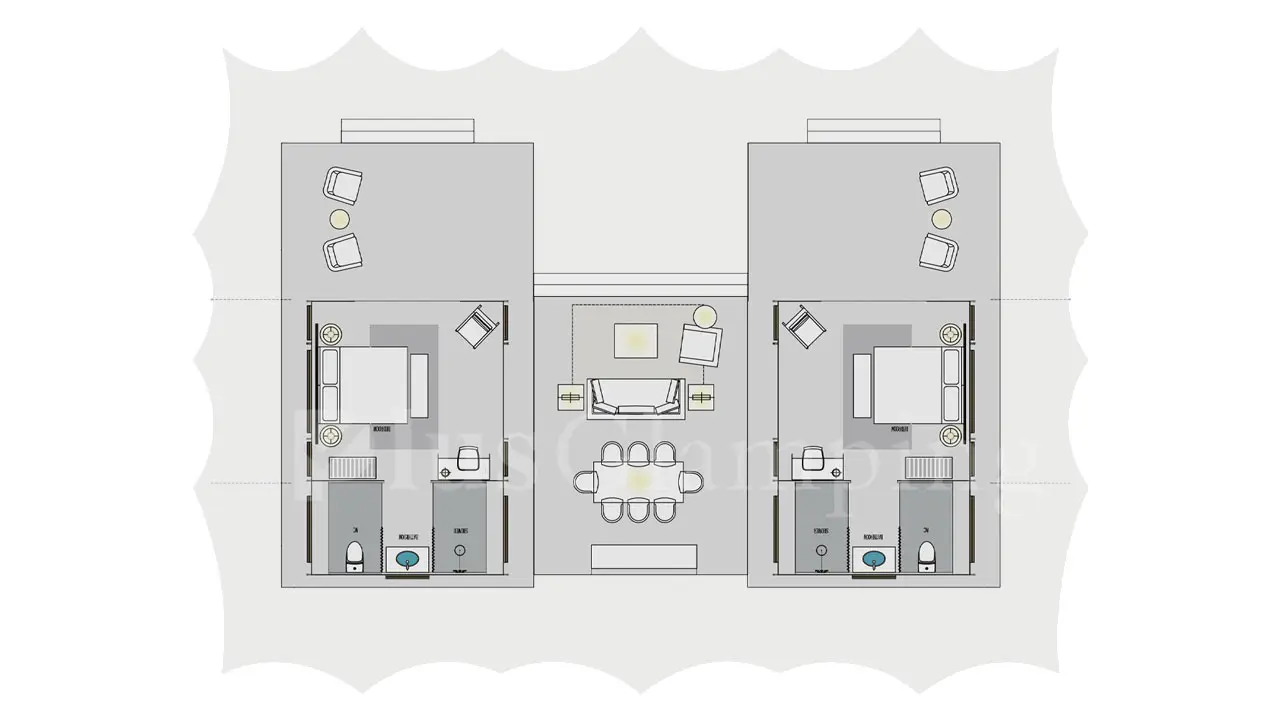

G7 Layout Design

Projected Area: 290m²
Structural Dimension: 15.8m*21.2m
Platform: 12.1m*19.3m
Inside Dimension: 6.4m*4.5m
External Height:(Top)5.2m
Internal Height:(Top/Side) 3.3m/2.2m

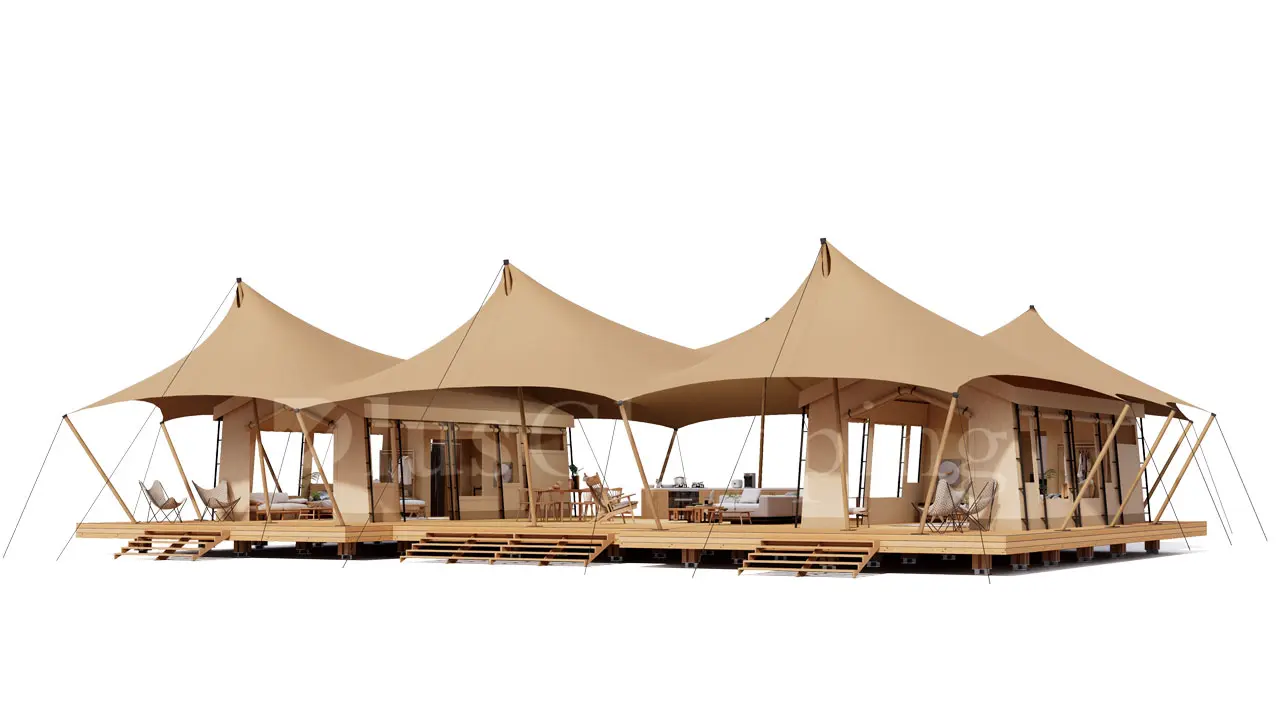

G7+

G7+

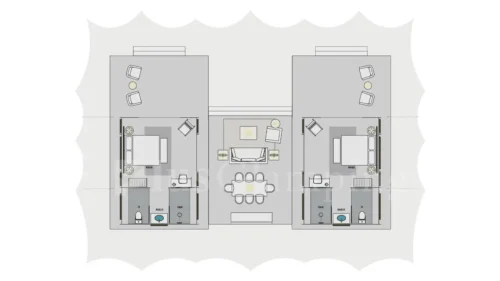

G7+ Layout Design

Projected Area: 290m²
Structural Dimension: 15m*22m
Platform: 13.4m*20m
Inside Dimension: 8.6m*4.5m
External Height:(Top)5m
Internal Height:(Top/Side) 3.2m/2.5m

Key Specifications

Carefully Selected and High Quality Materials

1

1050g PVDF architectural membrane

2

850g Thermal Insulation Fabric

3

Inner Tent: 450g Canvas

4

Rust-Proof Steel Connectors

5

Frames: ⌀80x4mm anti-rust coated steel.

6

SPC waterproof flooring/Multi-layer solid wood flooring Plastic wood flooring/20mm cement board Galvanized steel

Roof: 1050g PVDF Architectural Membrane
Second Roof: 850g Thermal Insulation Fabric

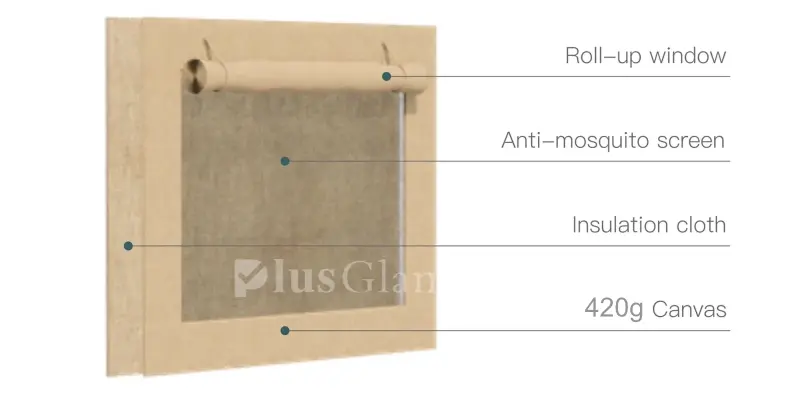

Inner Tent: Composite Wall System with 420g Canvas / Thermal Break Aluminum Glass Curtain Wall
Connectors: Anti-corrosion Coated Steel Connectors
Frames: ⌀80x4mm Anti-corrosion Coated Steel
- Flooring Options:
  - SPC Waterproof Flooring
  - Multi-layer Solid Wood Flooring
  - WPC (Wood Plastic Composite) Decking
- Structural Support:
  - 20mm Cement Board Substrate
  - Galvanized Steel Base Frame
