Tent House X Series

New Design, New Tech, New Glamping High ROI, Affordable

The large X series tent house cut a graceful, elegant arc when seen from above. Up close, their natural wood tones create a calm, graceful feel. Expansive 270-degree panoramic windows offer wide, stunning views of nature, beautifully connecting the large interior with the world outside.

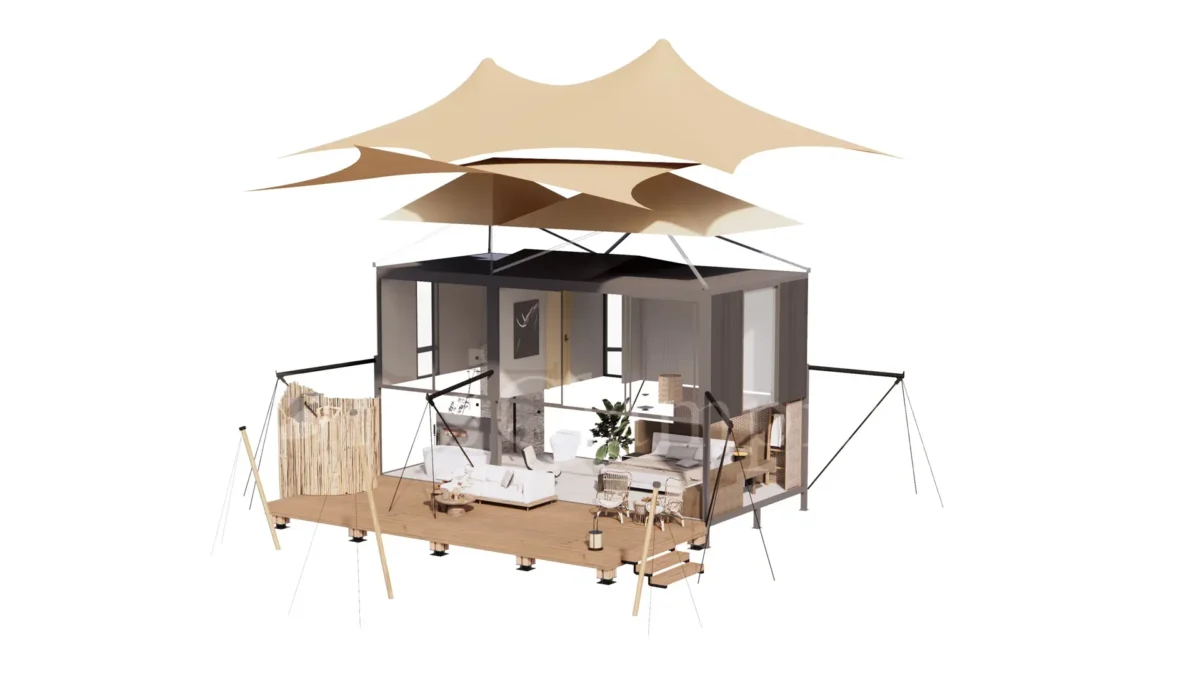

Tent House X Series Breakdown

High ROI

Lifespan

Up to 20 years

Working Temperature

-30℃ to +60℃

Wind Resistance

Up to level 9

Flame Retardent

Moisture Proof & Mildew Resistance

X5

X5+

Video of X5

Discover the exterior & interior details

Dimensions & Layout Design

X5, X5+, X7, X7+, X9, X9+ and XM2

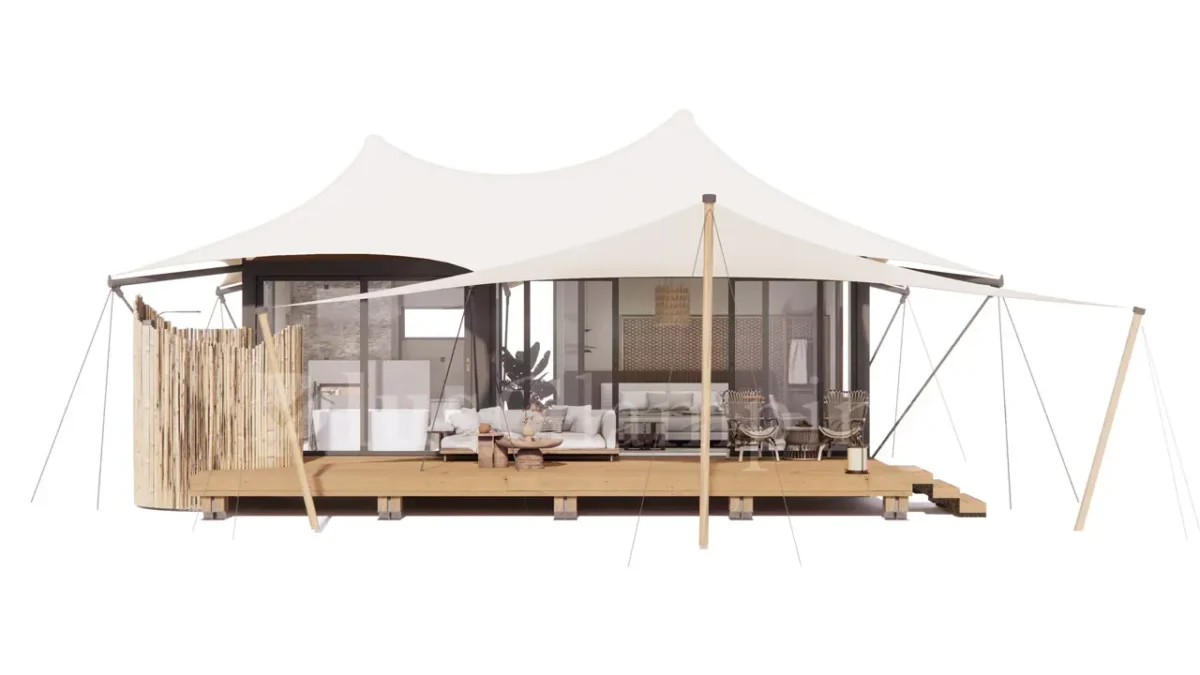

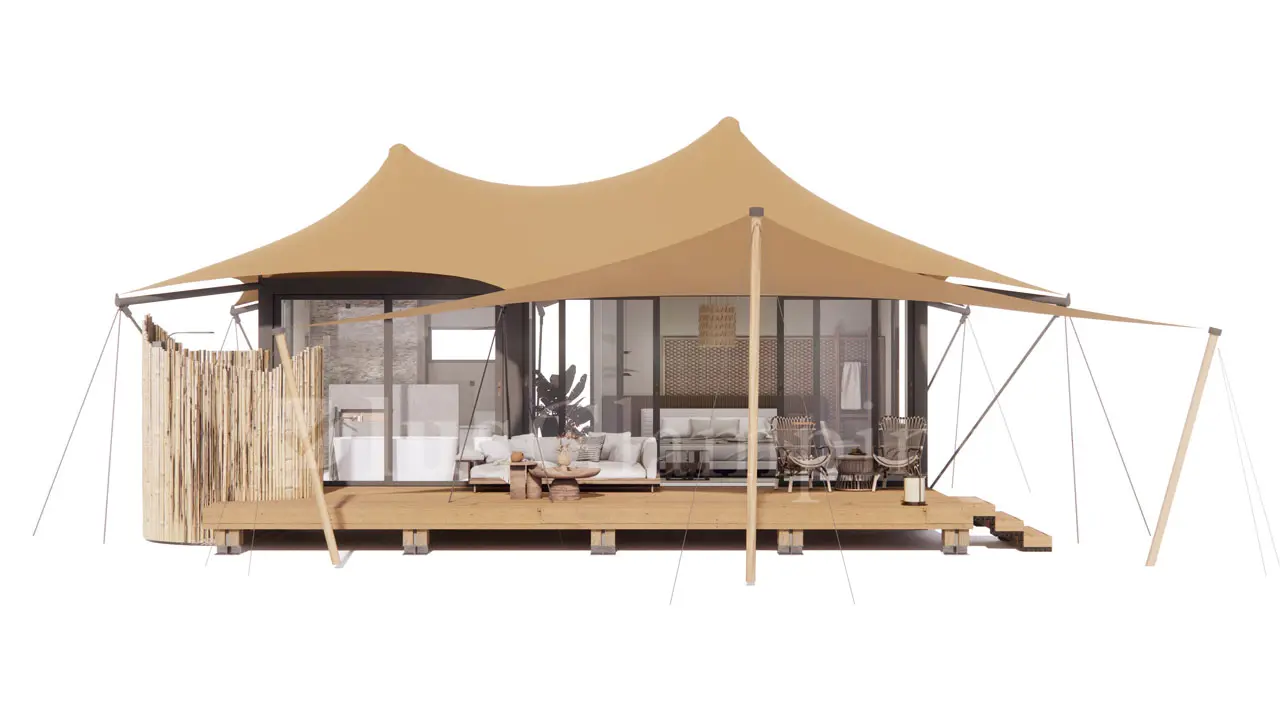

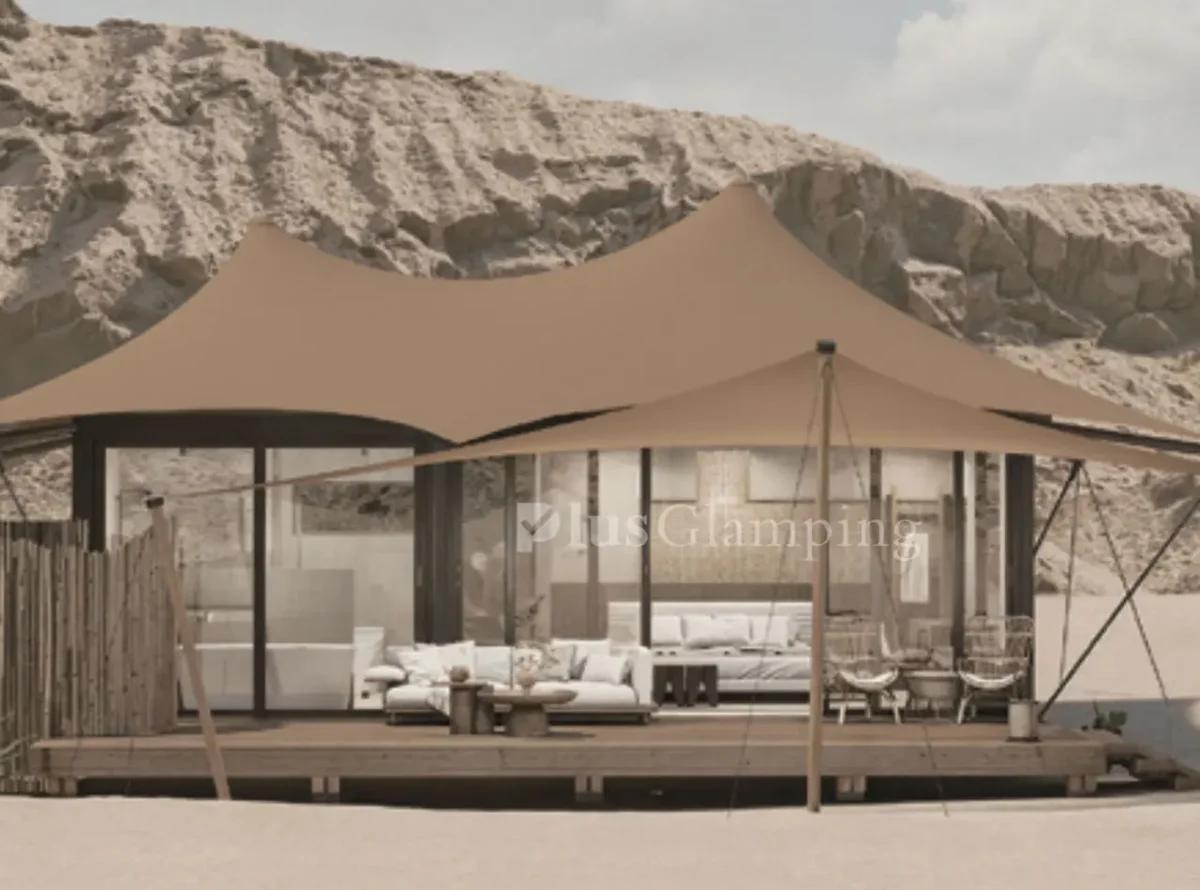

X5

X5

X5

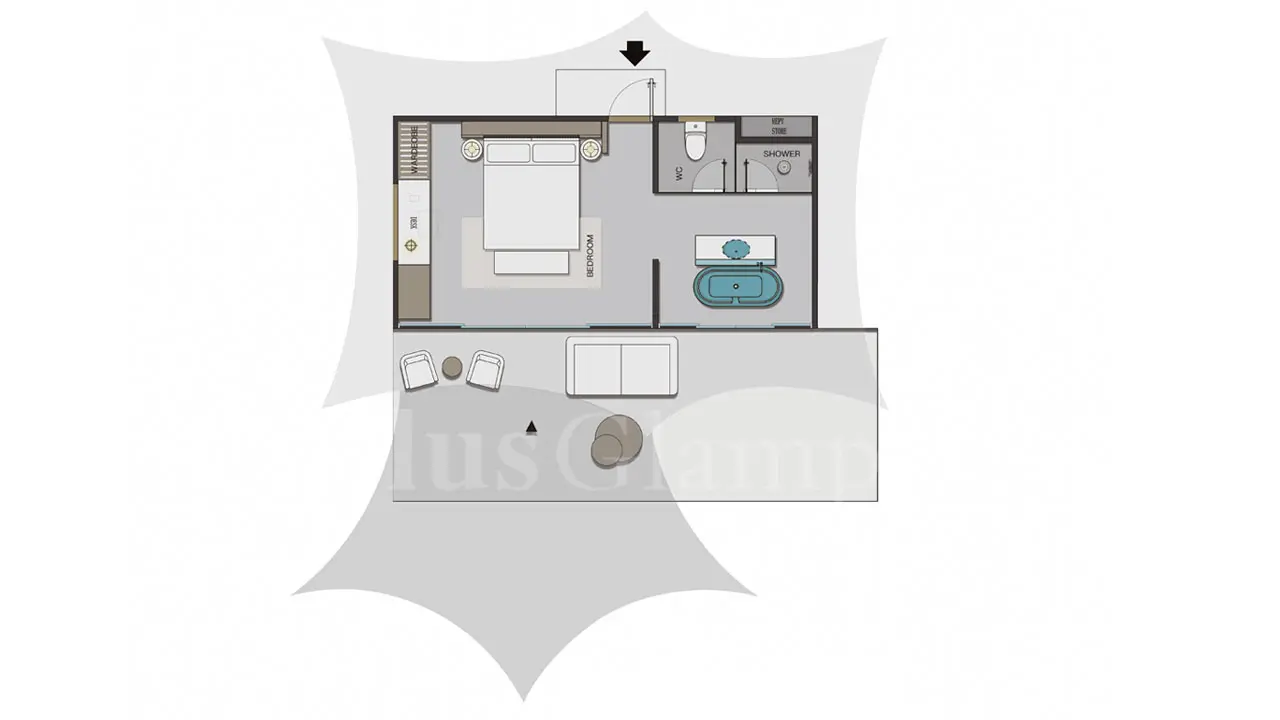

X5 Layout Design

X5 Layout Design

  • Projected Area+Sunshade: 63+31m2
  • Structural Dimension: 8m*10.7m
  • Platform: 7.3m*8m
  • Inside Dimension: 4m*8m
  • External Height:(Top)4.6m
  • Internal Height:(Top/Side) 2.85m/2.5m

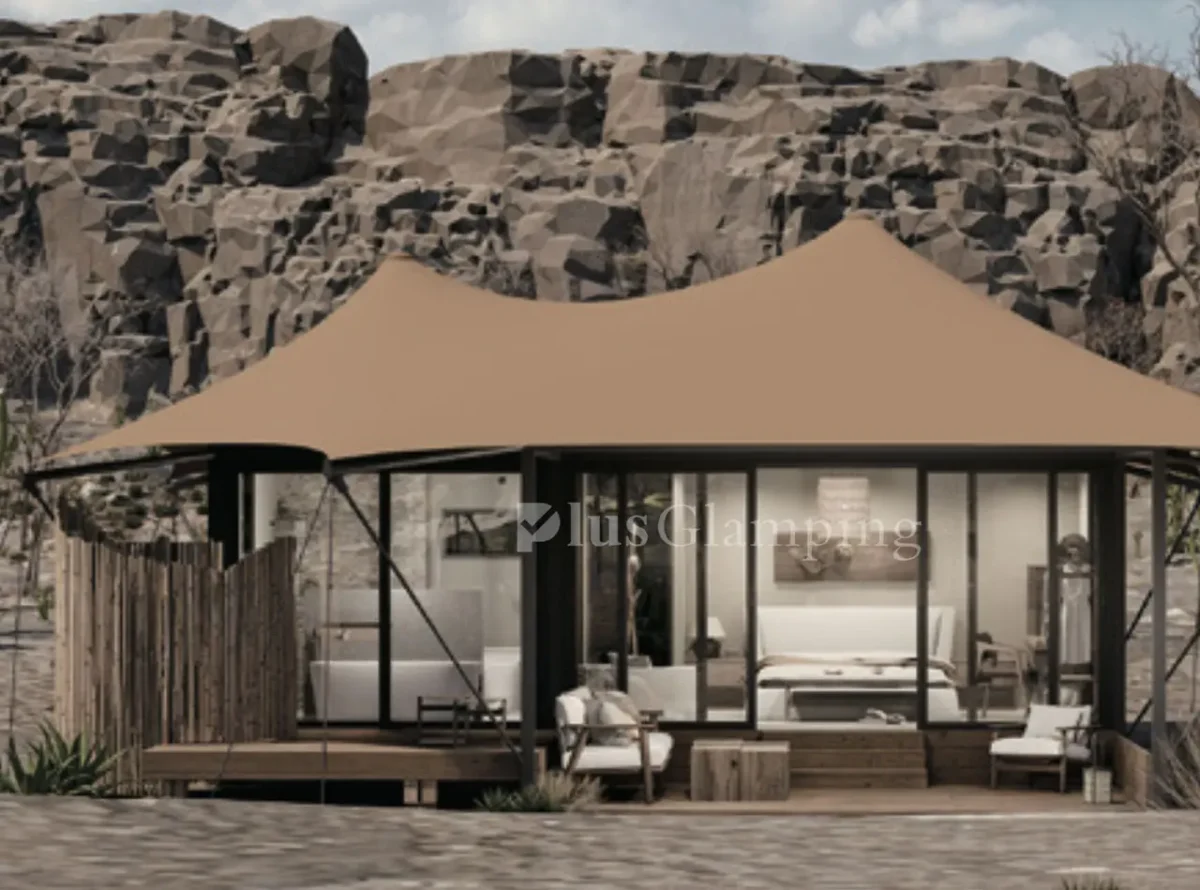

X5+

X5+

X5+

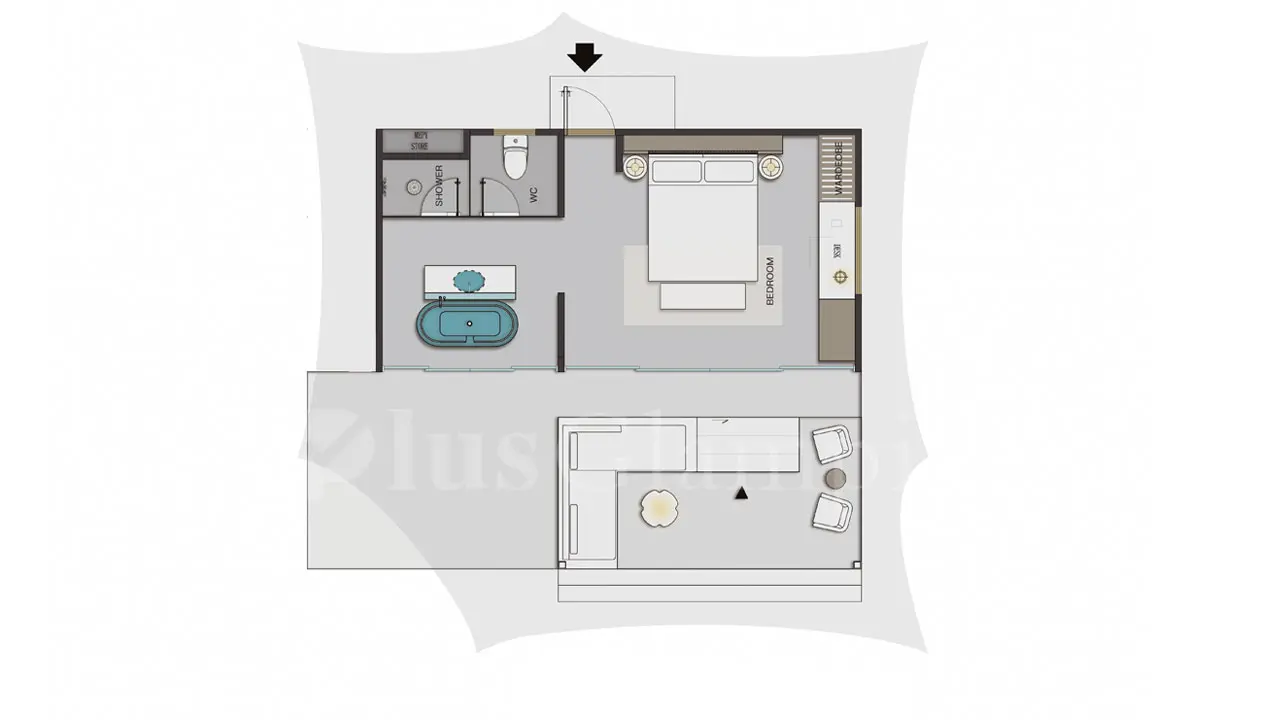

X5+ Layout Design

X5+ Layout Design

  • Projected Area: 94m2
  • Structural Dimension: 10.9m*10.6m
  • Platform: 7.3m*8m + Outdoor Lunge
  • Inside Dimension: 4m*8m
  • External Height:(Top)4.6m
  • Internal Height:(Top/Side) 2.85m/2.5m

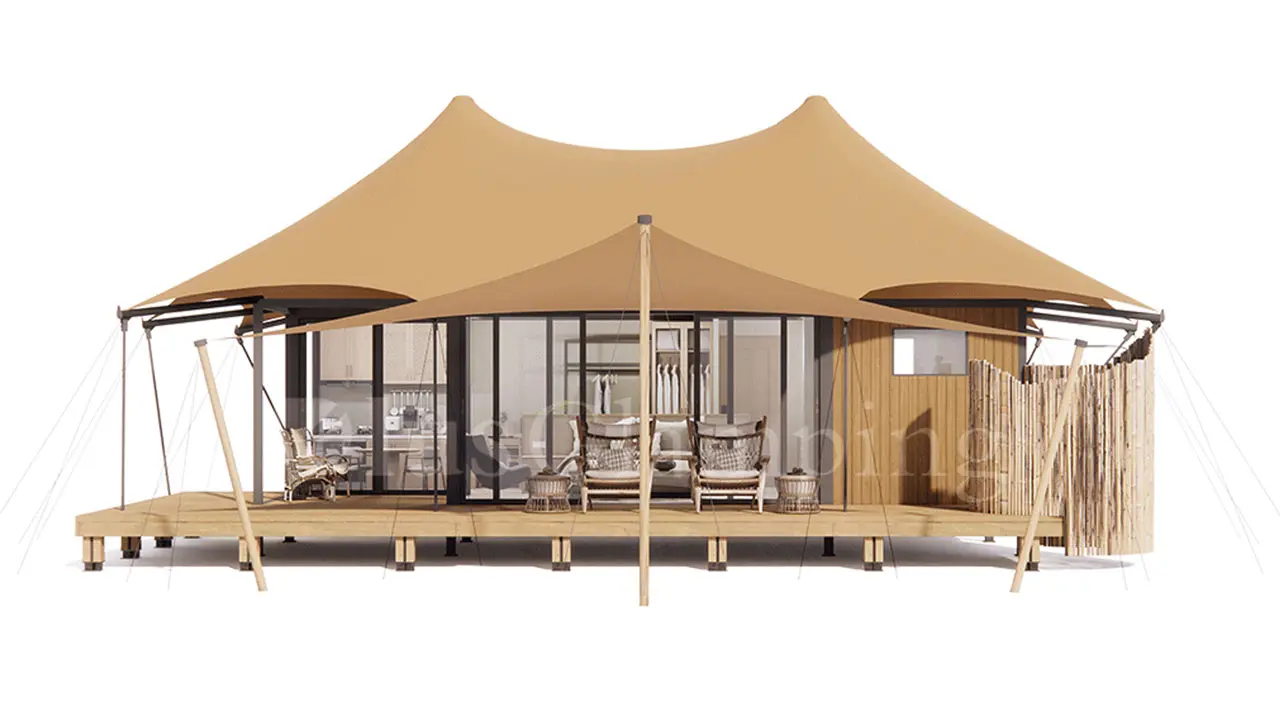

X7

X7

X7

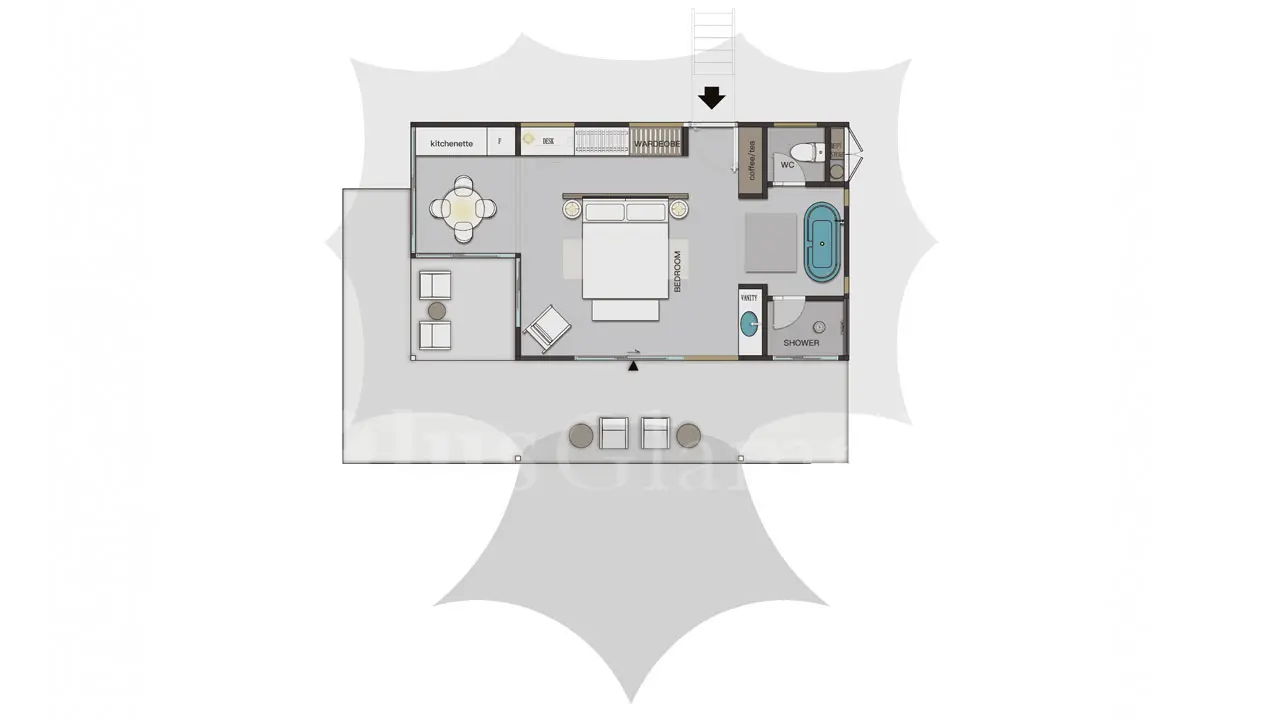

X7 Layout Design

X7 Layout Design

  • Projected Area+Sunshade: 84+31m2
  • Structural Dimension: 8.6m*12.6m
  • Platform: 7.3m*10.5m
  • Inside Dimension: 5m*9.2m
  • External Height:(Top)4.6m
  • Internal Height:(Top/Side) 2.85m/2.5m

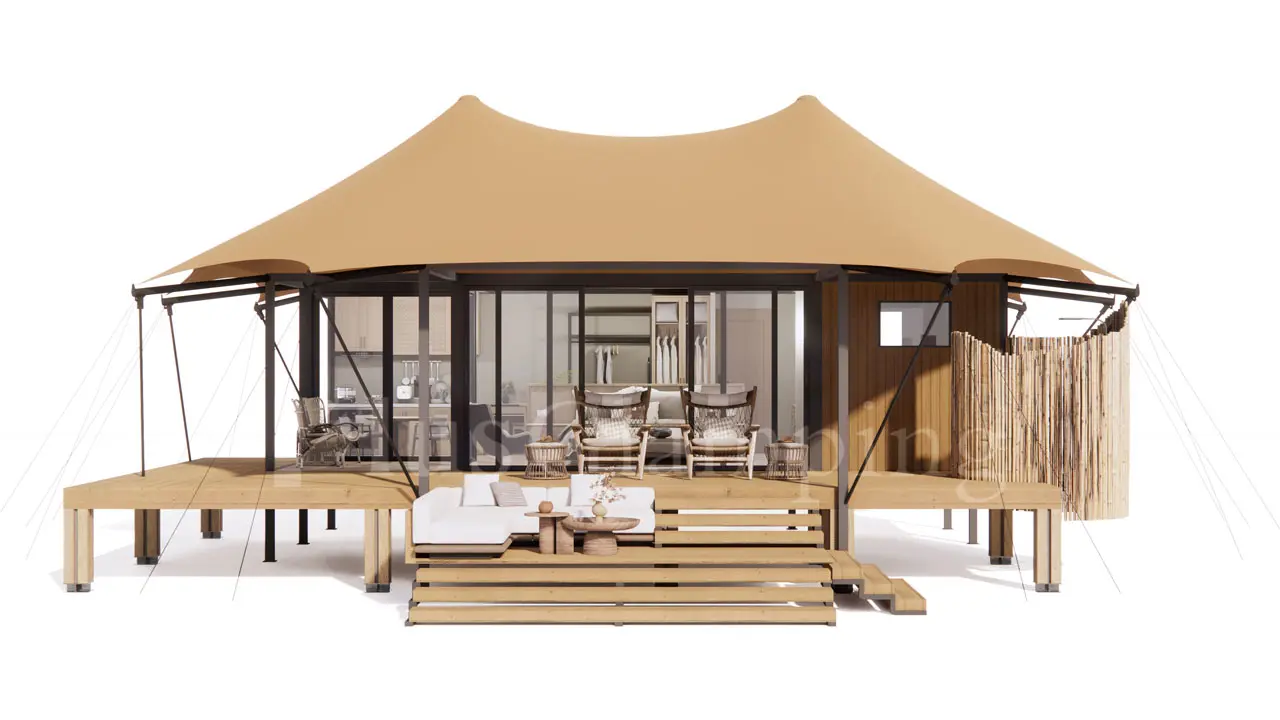

X7+

X7+

X7+

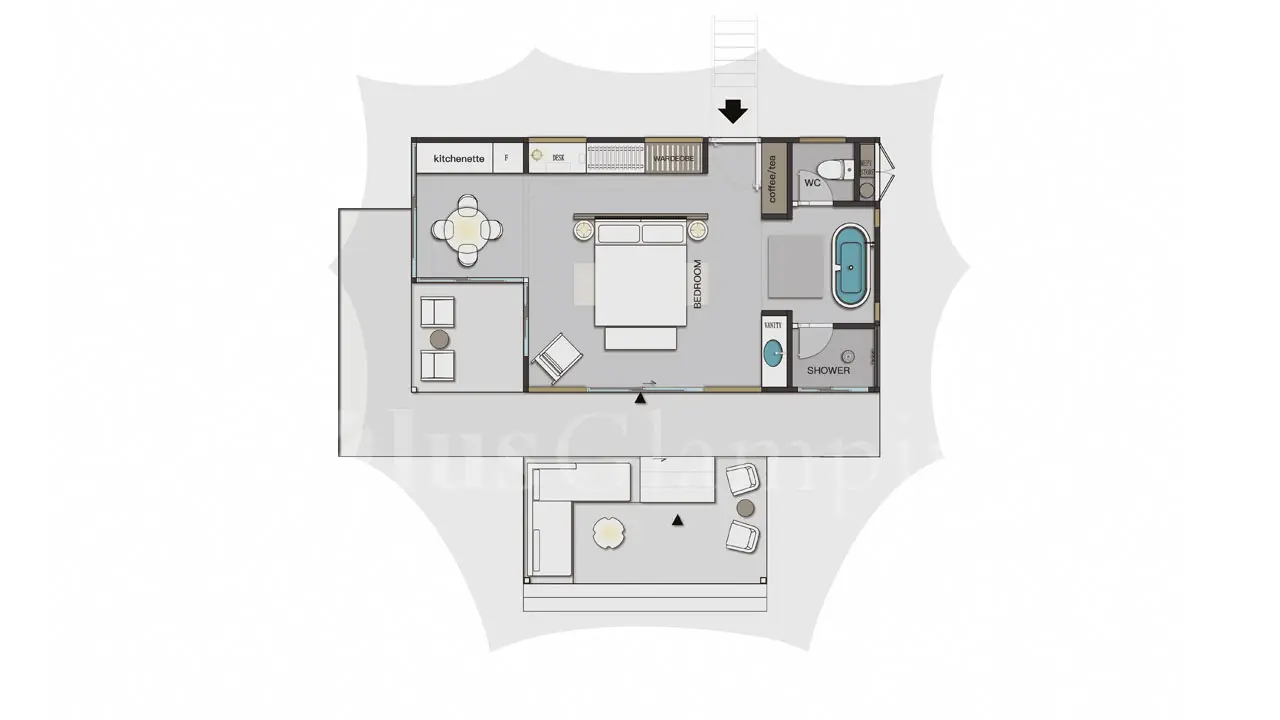

X7+ Layout Design

X7+ Layout Design

  • Projected Area: 114m2
  • Structural Dimension: 11.9m*12.6m
  • Platform: 8.3m*10.5m + Outdoor Lunge
  • Inside Dimension: 5m*9.2m
  • External Height:(Top)4.6m
  • Internal Height:(Top/Side) 2.85m/2.5m

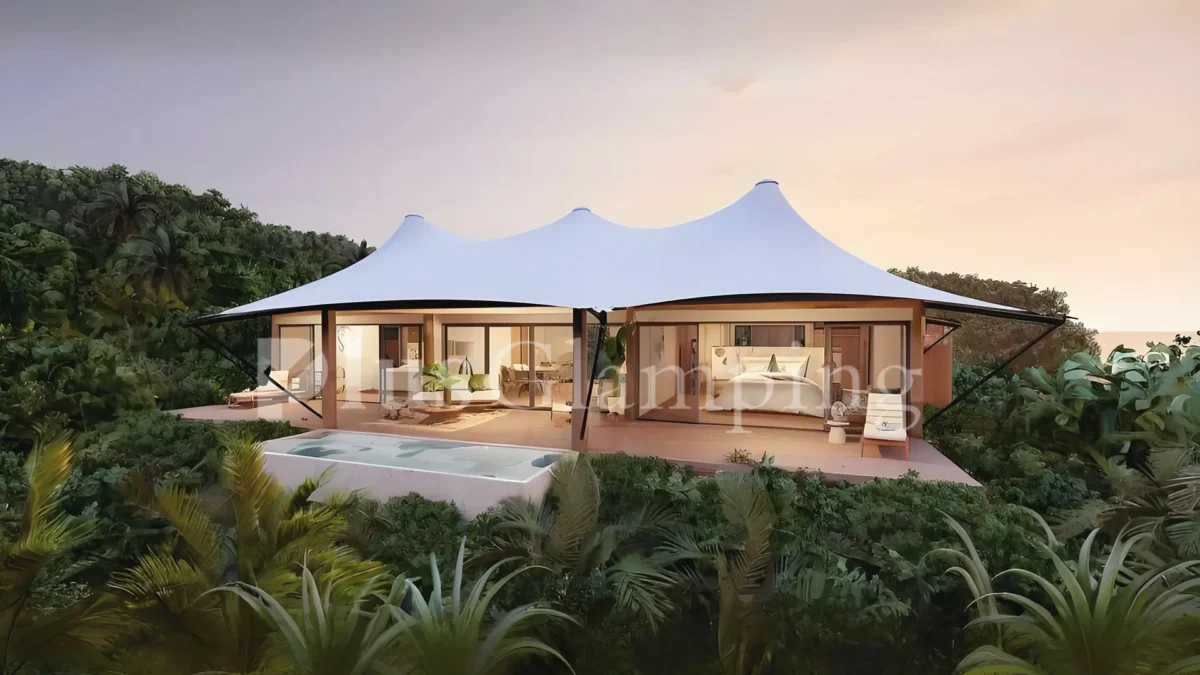

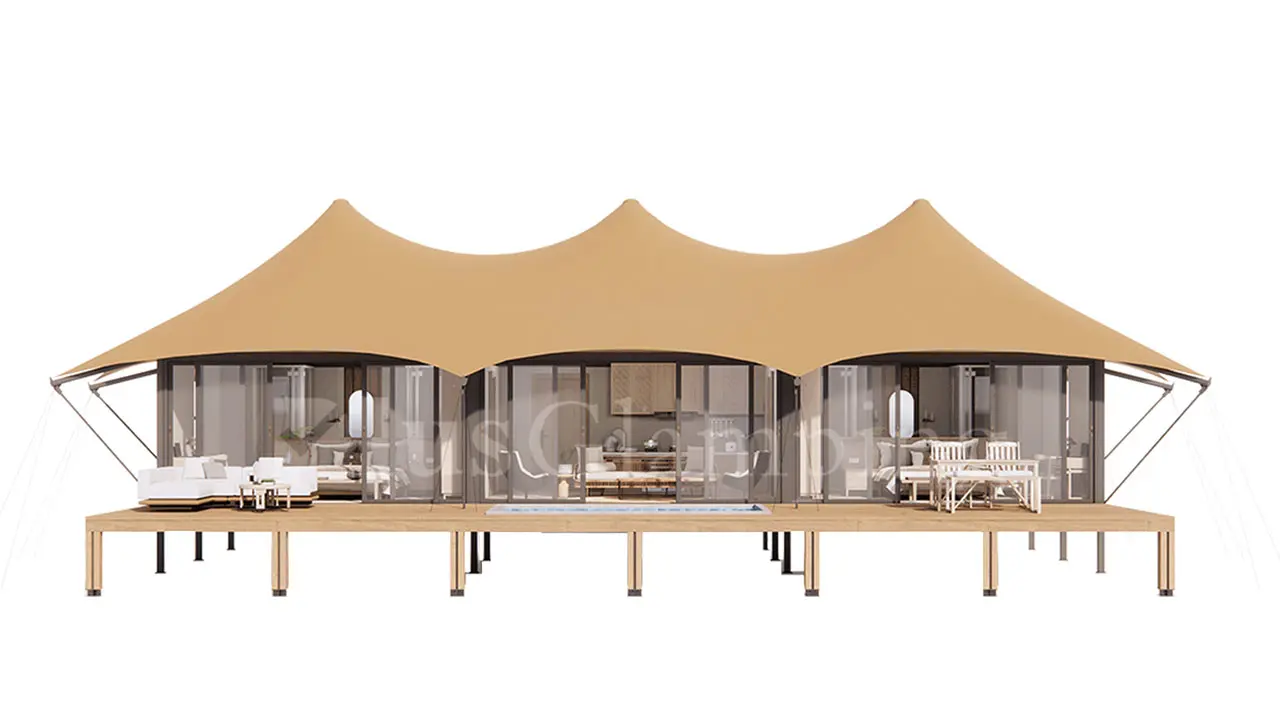

X9

X9

X9

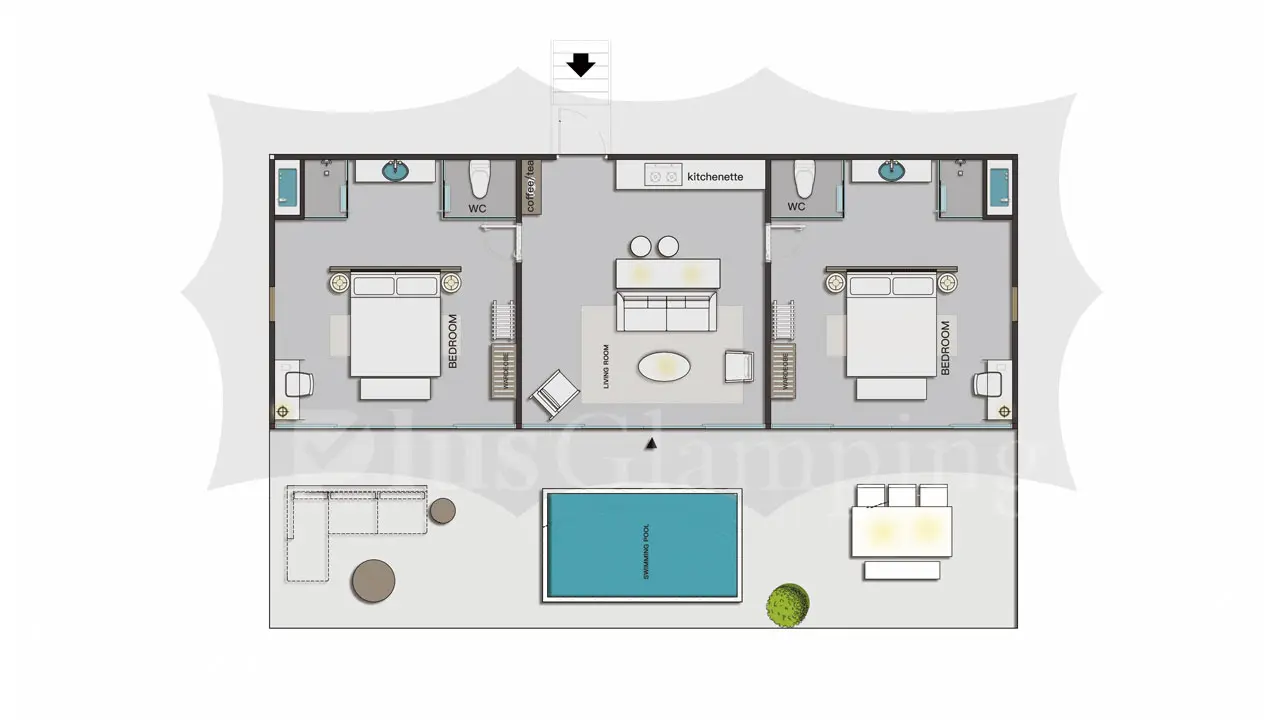

X9 Layout Design

X9 Layout Design

  • Projected Area+Sunshade: 133+31m2
  • Structural Dimension: 9.1m*18.6m
  • Platform: 9.5m*15m
  • Inside Dimension: 5m*15m
  • External Height:(Top)5.1m
  • Internal Height:(Top/Side) 2.85m/2.5m

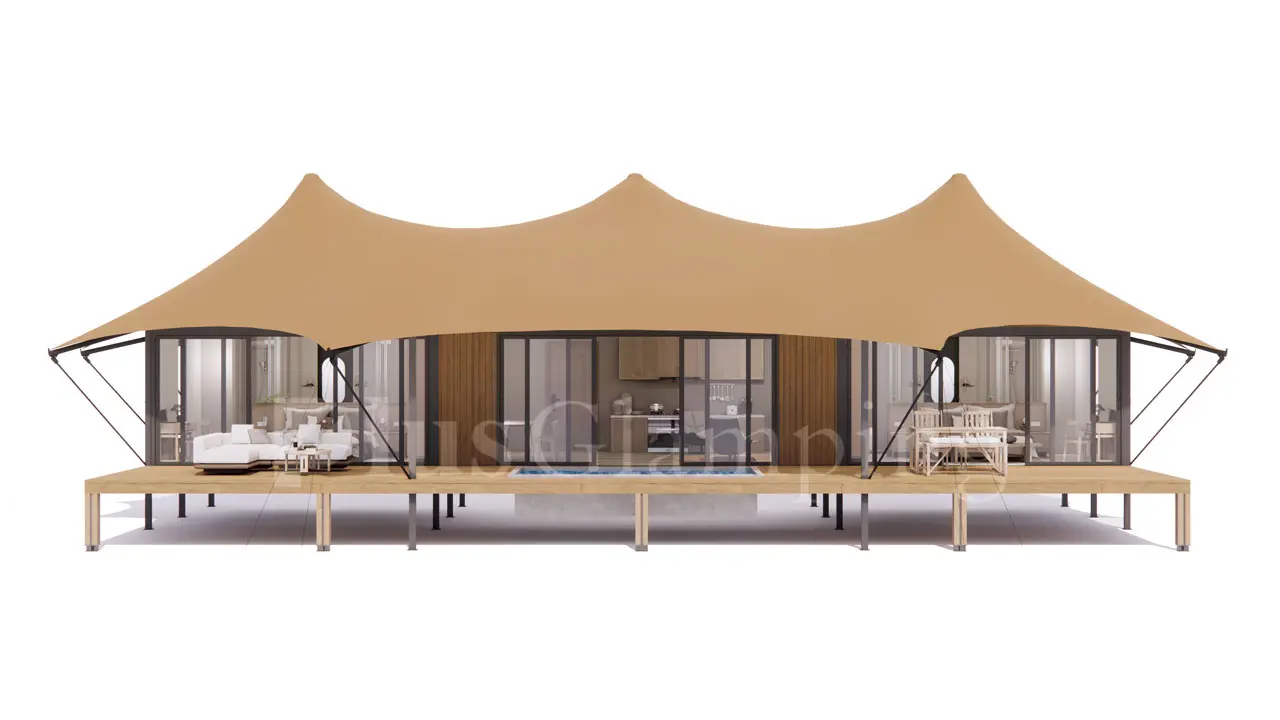

X9+

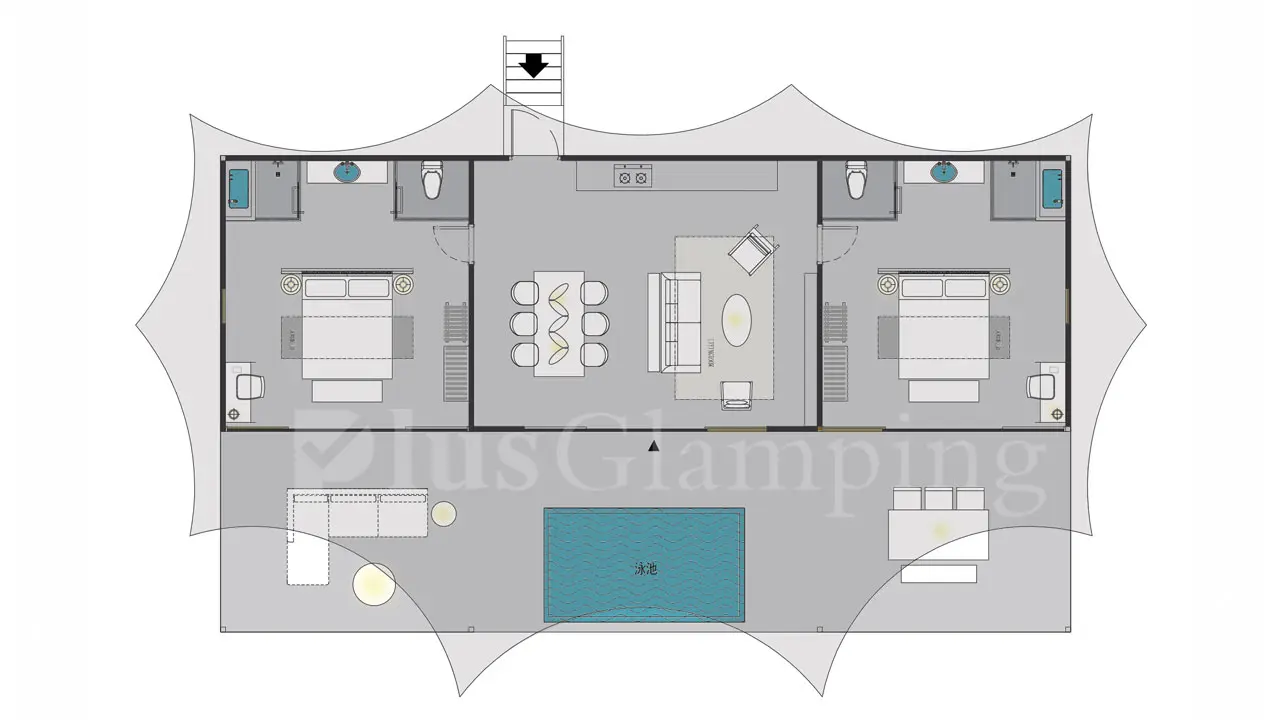

X9+ Layout Design

X9+ Layout Design

  • Projected Area: 182m2
  • Structural Dimension:12.8m*19.8m
  • Platform: 10.2m*18.5m + Outdoor Lunge
  • Inside Dimension: 5.5m*16.8m
  • External Height:(Top)5.1m
  • Internal Height:(Top/Side) 2.85m/2.5m

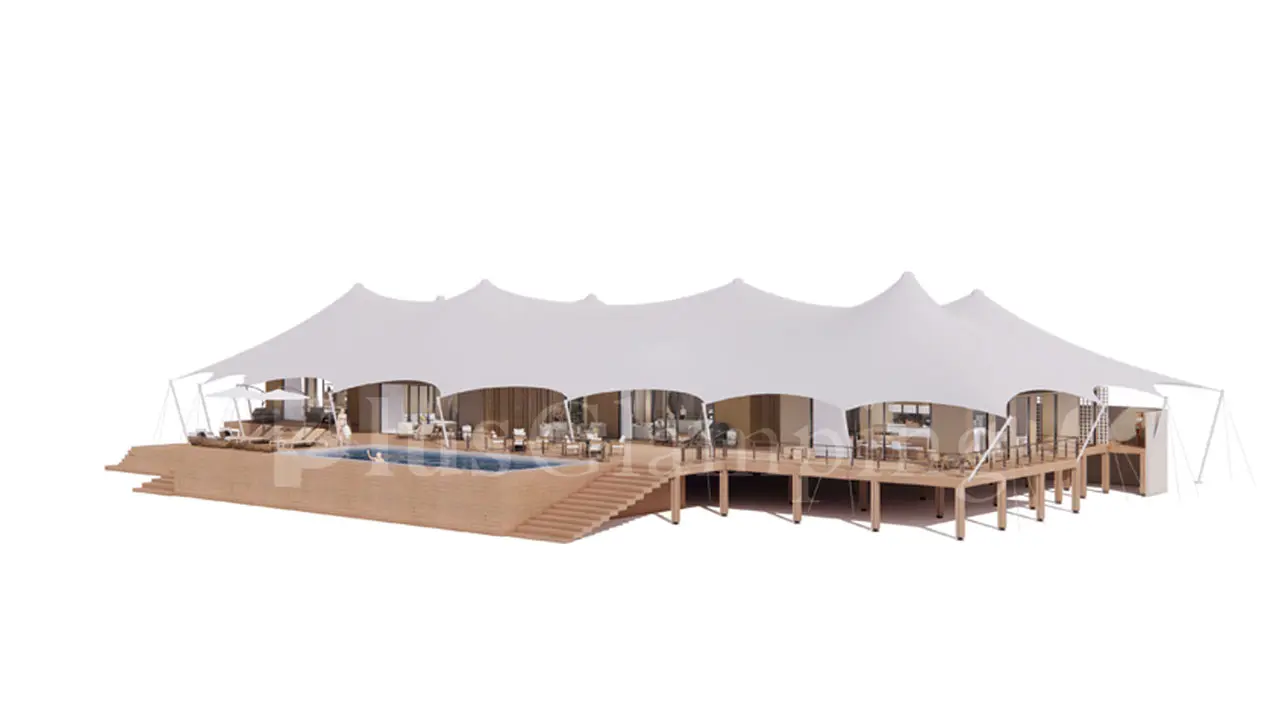

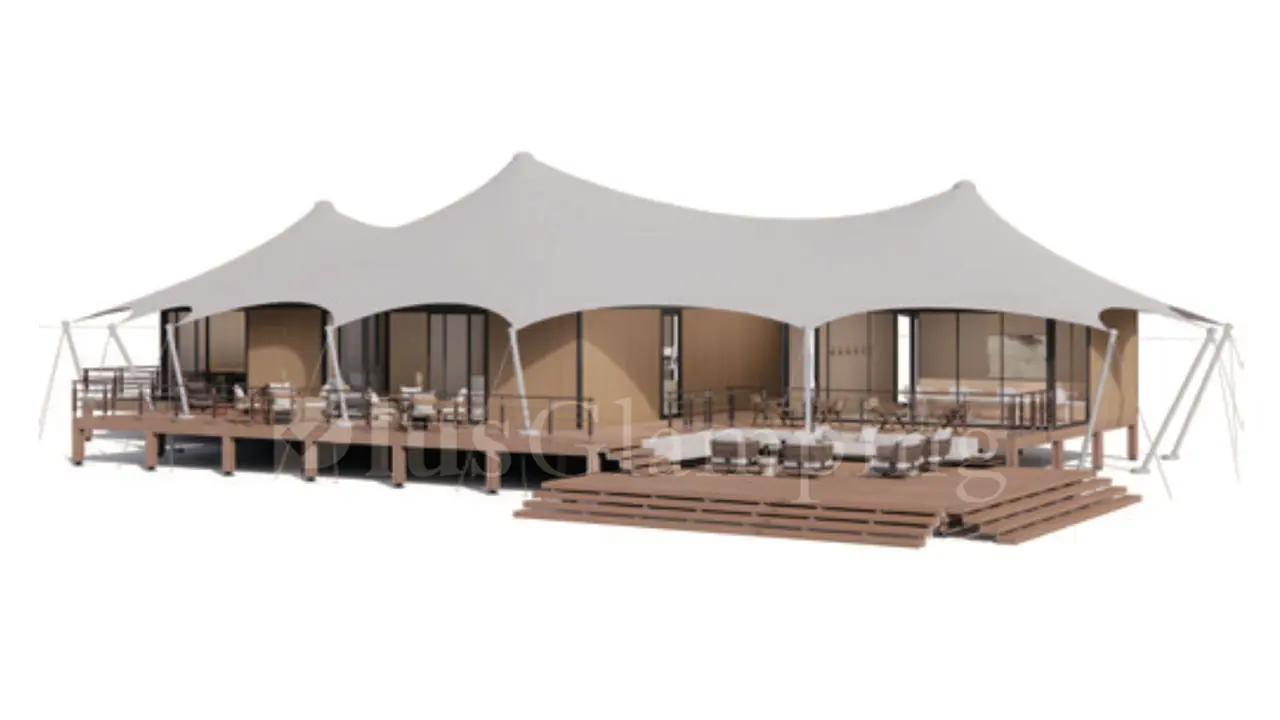

XM2

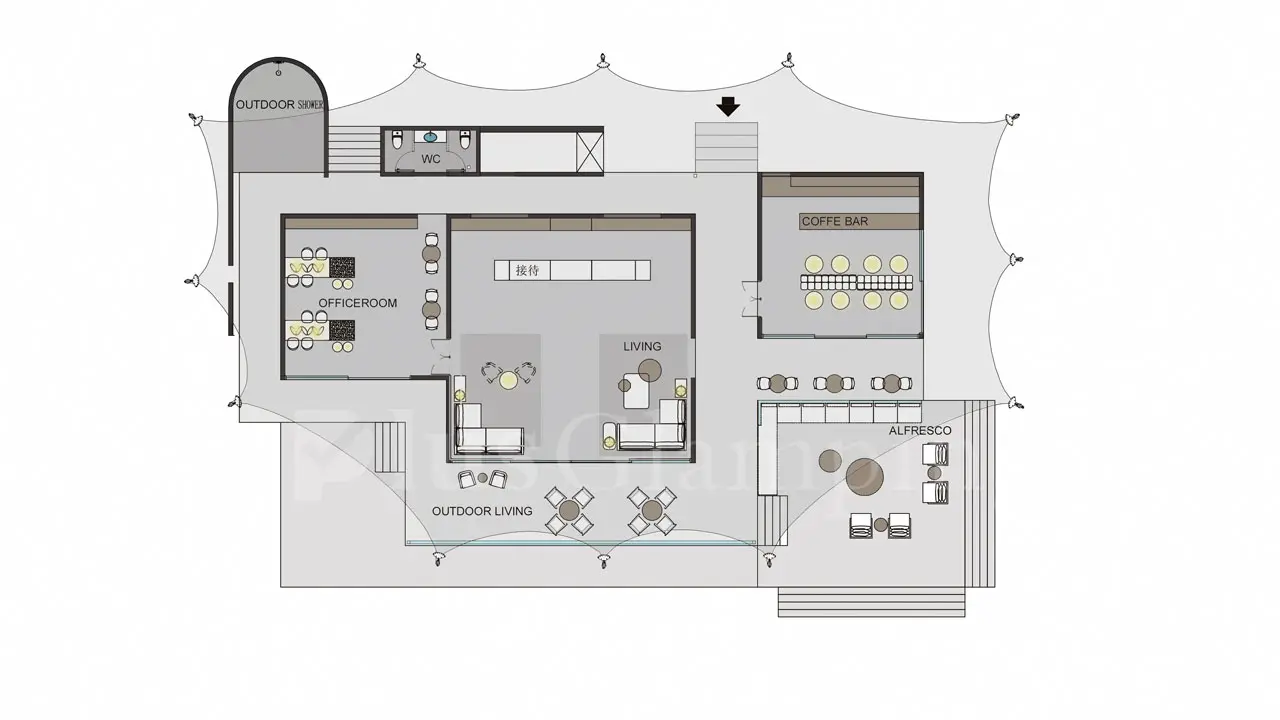

XM2 Layout Design

XM2 Layout Design

  • Projected Area: 750m2
  • Structural Dimension:16.6m*30.8m
  • Platform: 16.6m*28.6m
  • Inside Area: 200m2
  • External Height:(Top)7m
  • Internal Height:(Top/Side) 5.2m/2.8m

XM5

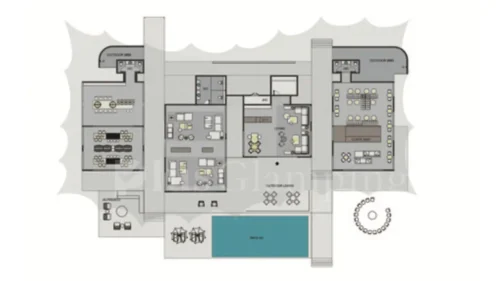

XM5 Layout Design

XM5 Layout Design

  • Projected Area: 1300m2
  • Structural Dimension:30m*528m
  • Platform: 38m*48m
  • Inside Area: 500m2
  • External Height:(Top)8.2m
  • Internal Height:(Top/Side) 5.2m/3.2m

Key Specifications

Carefully Selected and High Quality Materials
1
1050g PVDF architectural membrane
2
850g Thermal Insulation Fabric
3
Inner Tent: 450g Canvas
4
Rust-Proof Steel Connectors
5
Frames: ⌀80x4mm anti-rust coated steel.
6
SPC waterproof flooring/Multi-layer solid wood flooring Plastic wood flooring/20mm cement board Galvanized steel
  • Roof: 1050g PVDF architectural membrane
  • Second Roof: 850g Thermal Insulation Fabric
  • Inner Tent: 450g Canvas
  • Connectors: Rust-Proof Steel Connectors
  • Frames: ⌀80x4mm anti-rust coated steel
  • Flooring:
    • SPC waterproof flooring
    • Multi-layer solid wood flooring
    • Plastic wood flooring/20mm cement board
    • Galvanized steel

Color Options

Flexible and Diverse Color Options for Roof, Inner Tent and Frames

Roof Color Options

More Roof Colors

Beige
Khaki
Light Brown
Brown
Green
White

Inner Tent Color Options

Khaki
Beige
Quicksand Gold

Doors & Windows

Flexible and Diverse Color Options for Roof, Inner Tent and Frames

Window Details

Flooring Options

Door & Window Color Options

Coffee

Black

Wood

Interior Options

Flexible and Selected Interior Configuration, Facilities, and Furniture
