Prefab House F Series

Classic, High ROI, Affordable and Elegant

Introducing the F Series: The Future of Luxury Glamping

Experience the perfect harmony of nature and modern luxury with the F Series Modular Prefabricated House. Designed specifically for high-end glamping, this structure redefines outdoor hospitality by combining cutting-edge engineering with breathtaking aesthetics and help you to maximize your resort's ROI and deliver a premium guest experience and rapid deployment.

Key Advantages for Glamping Operators: Premium Architectural Appeal: , Aviation-Grade Durability , Eco-Conscious Construction , Turnkey Modular Deployment

Ideal Applications: Luxury glamping resorts & Eco-Tourism , boutique hotel expansions , vacation retreats , premium short-term rental properties(AirBnb) and premium backyard guest houses (ADUs) .

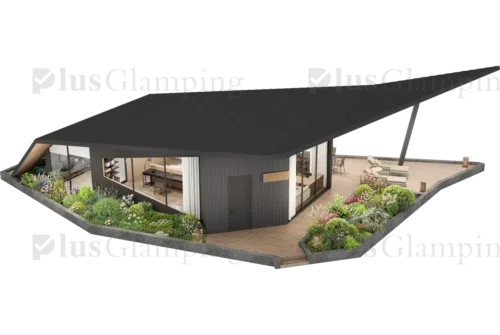

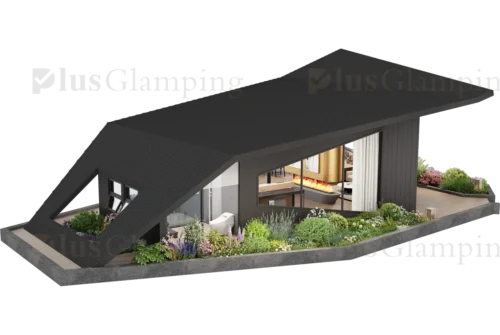

Prefab House FS

Prefab House FS

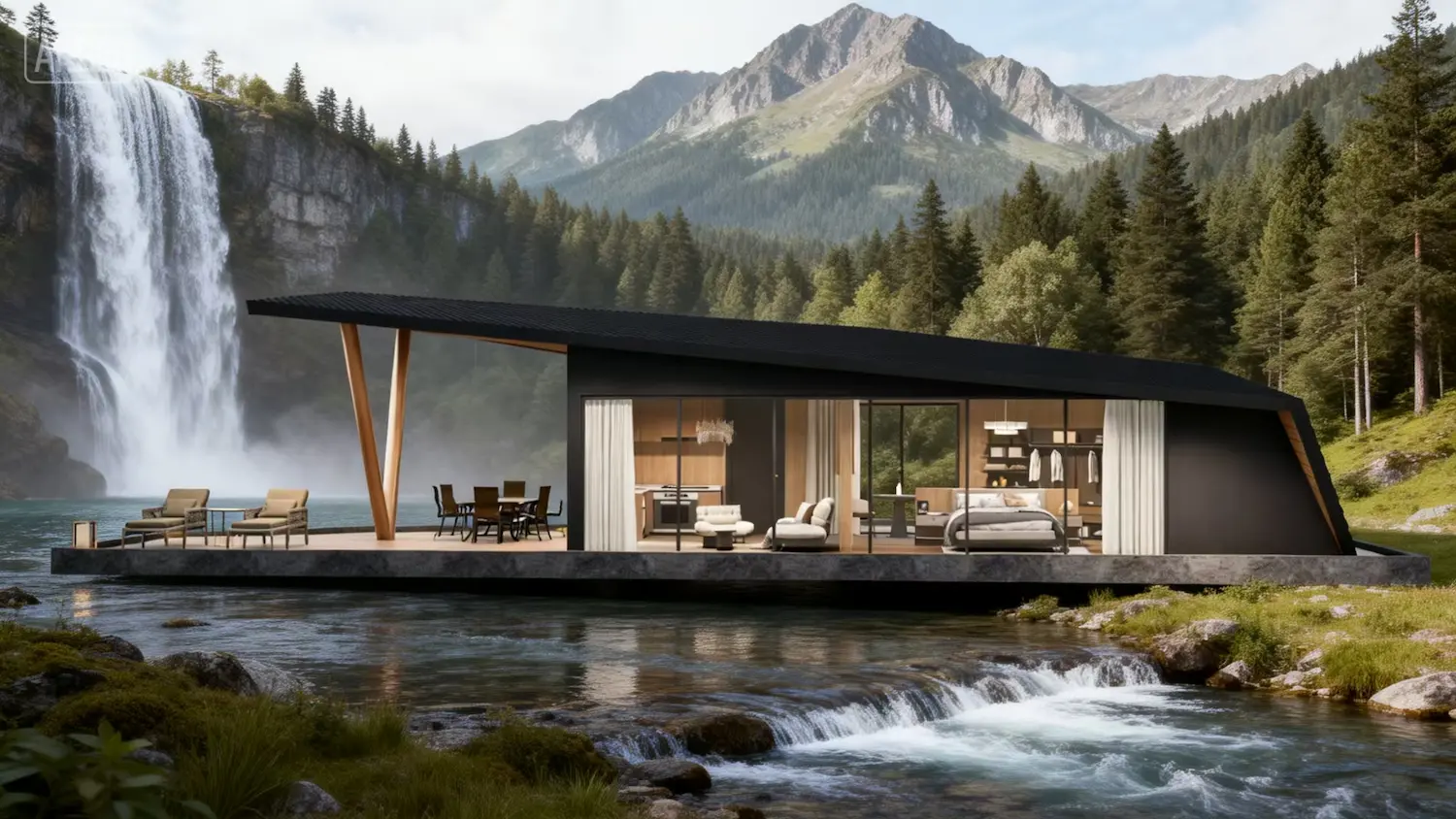

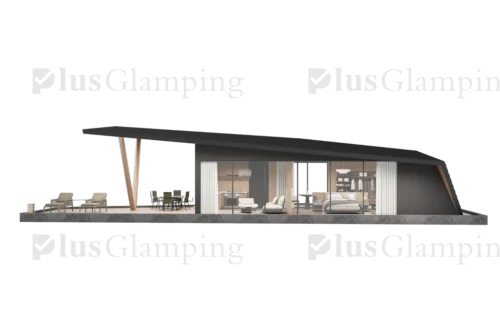

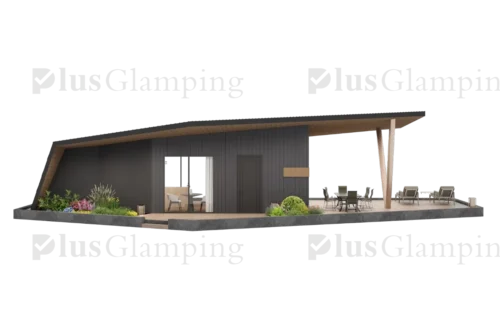

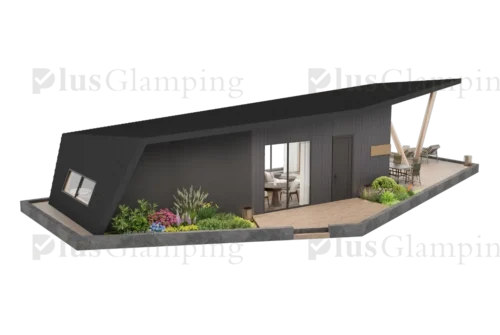

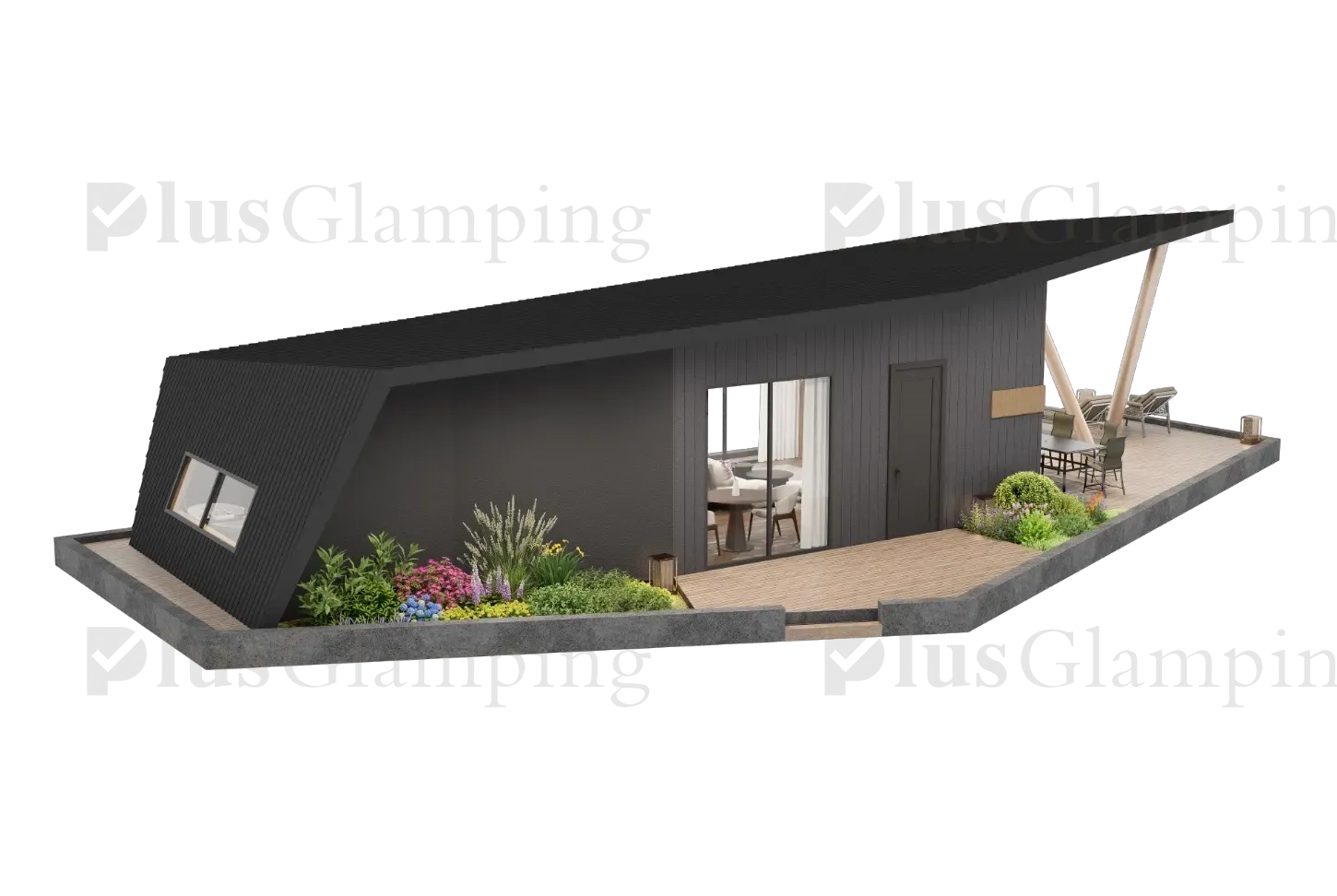

Prefab House FR

Prefab House FR

Model Comparison

Size, area, capacity, and typical configuration
Select Glamping Tent by Price, Area
Model
Guests
Dimensions
(Structural/Inside)
Area
(Projected/Inside)
Height
(Ext./Int.)
Terrace
Bedroom
Bathroom
Living Space
FS FS 2-4 People 21m x 14m
12m x 6.2m		 294m² / 72 m² 5.3m / 3.7 m 137 m² 1 1 Yes
FR FR 2-4 People 17.2m x 10.2m
11.8m x 5.6m		 175m² / 65 m² 4.3m / 3.2 m 92 m² 1 1 Yes
Note:
  • FS and FR Series are modern prefab houses featuring insulated aluminum construction for year-round living.
  • Dimensions refer to the structural size and layout design(FS and FR layout design).

Dimensions & Layout

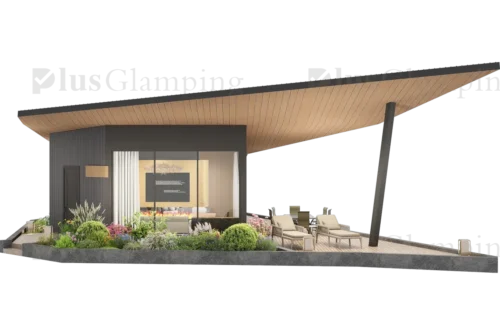

FS

FS

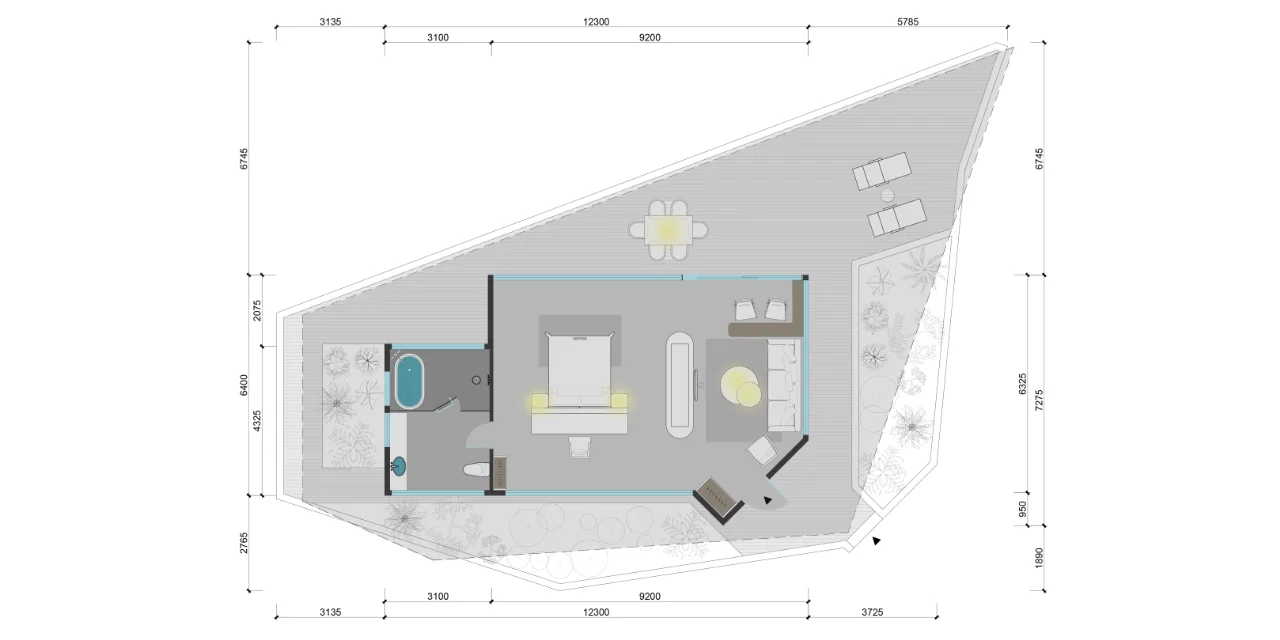

Layout Design

Dimensions

  • Projected Area: 294m2
  • Structural Dimensions(L x W x H): 21 x 14 x 5.3m
  • Inside Area: 72m2
  • Inside Dimensions(L x W x H): 12 x 6.2 x 3.7m
  • Terrace: 137m2
  • Floor plan: 1 living room, 1 bedroom, 1 bathroom

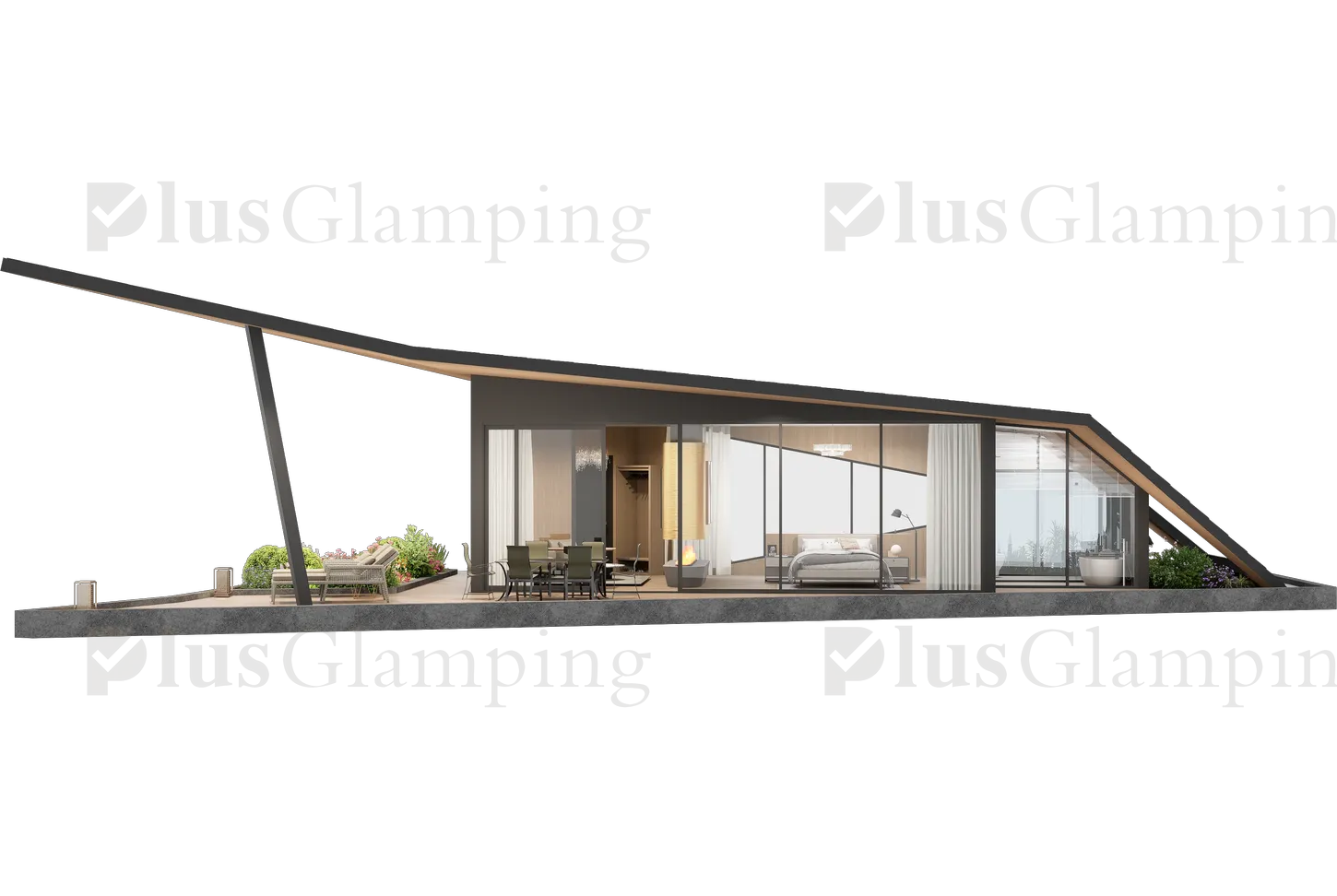

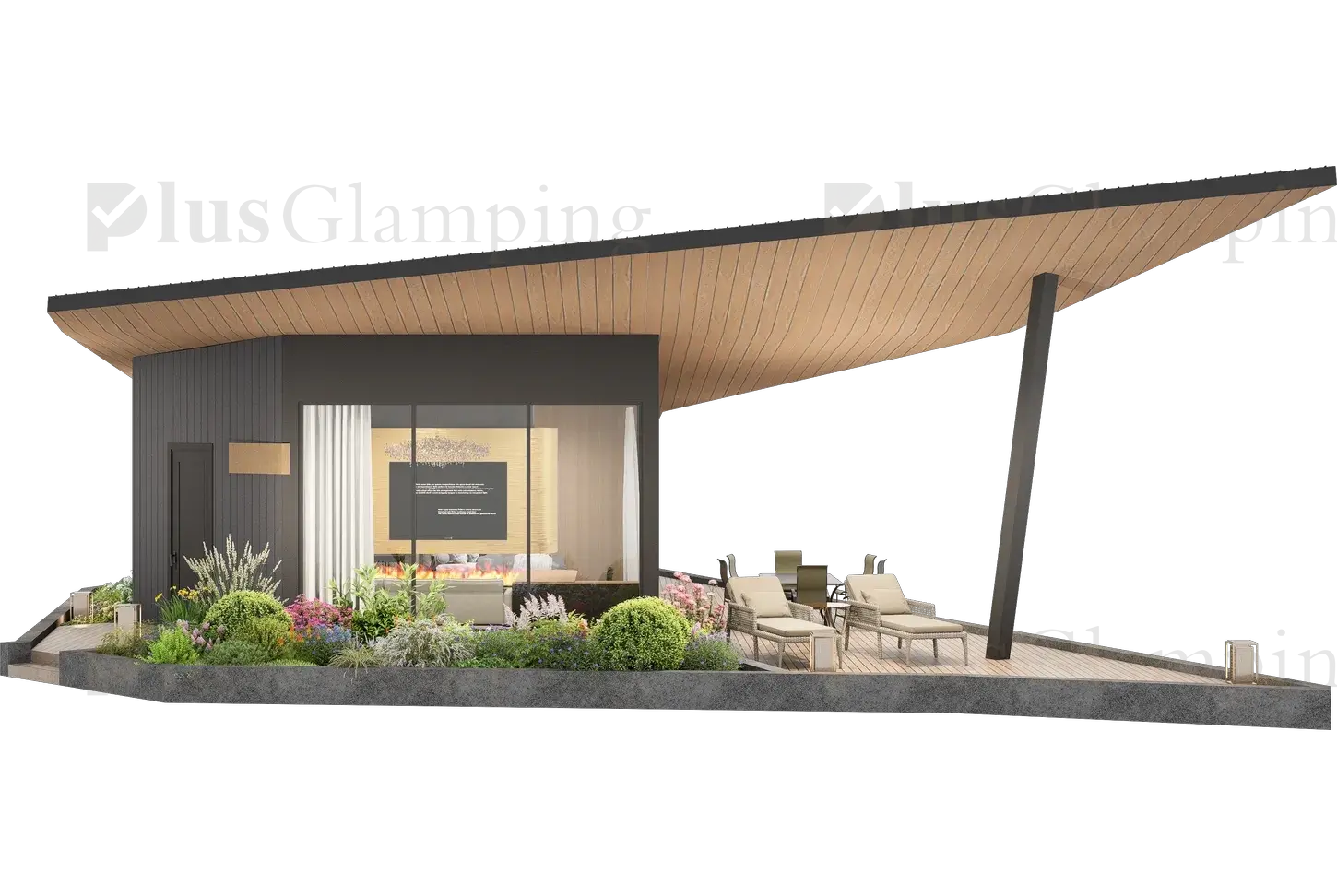

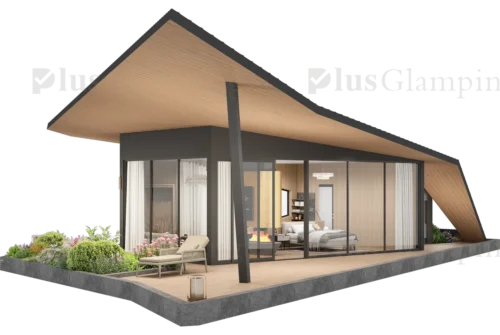

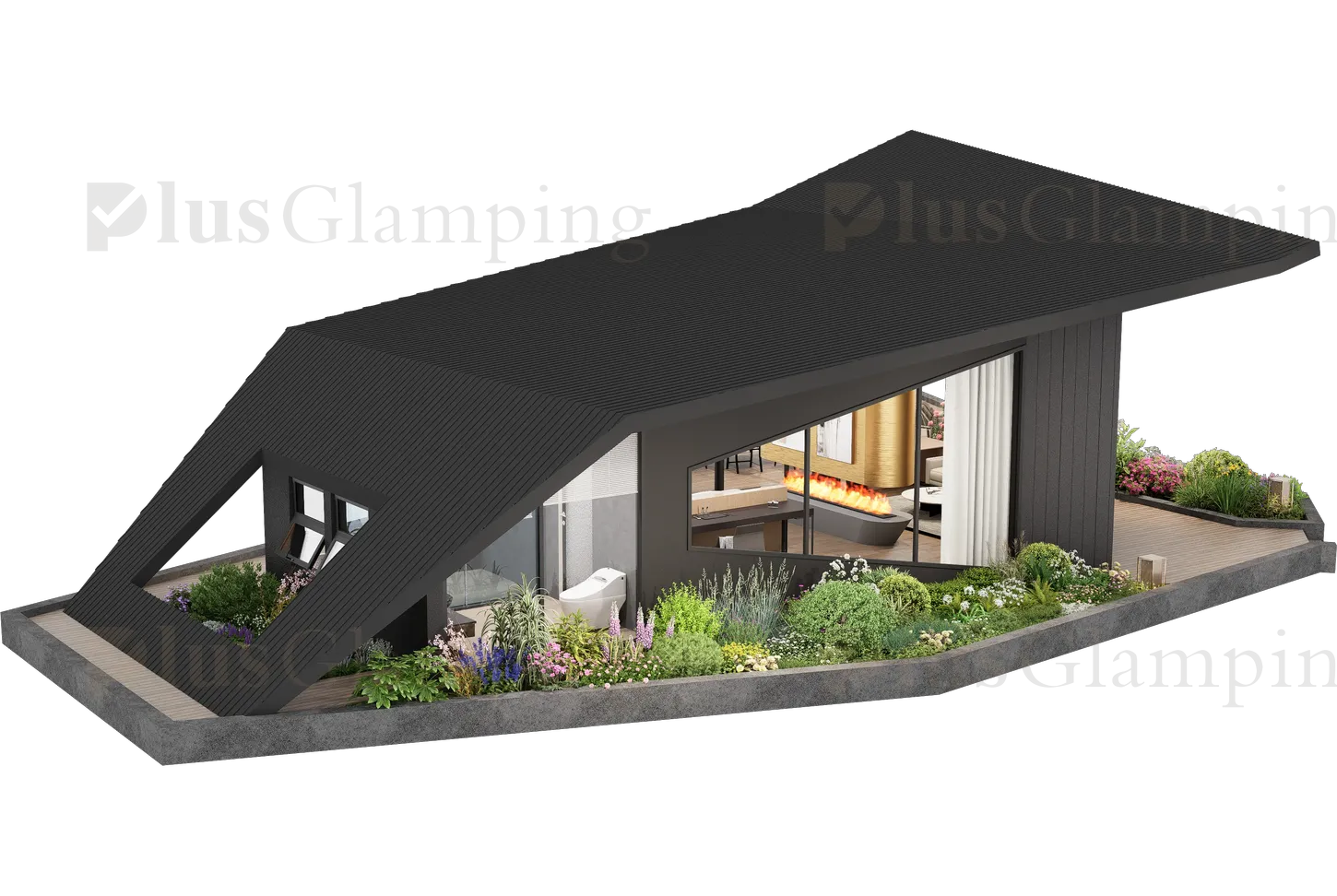

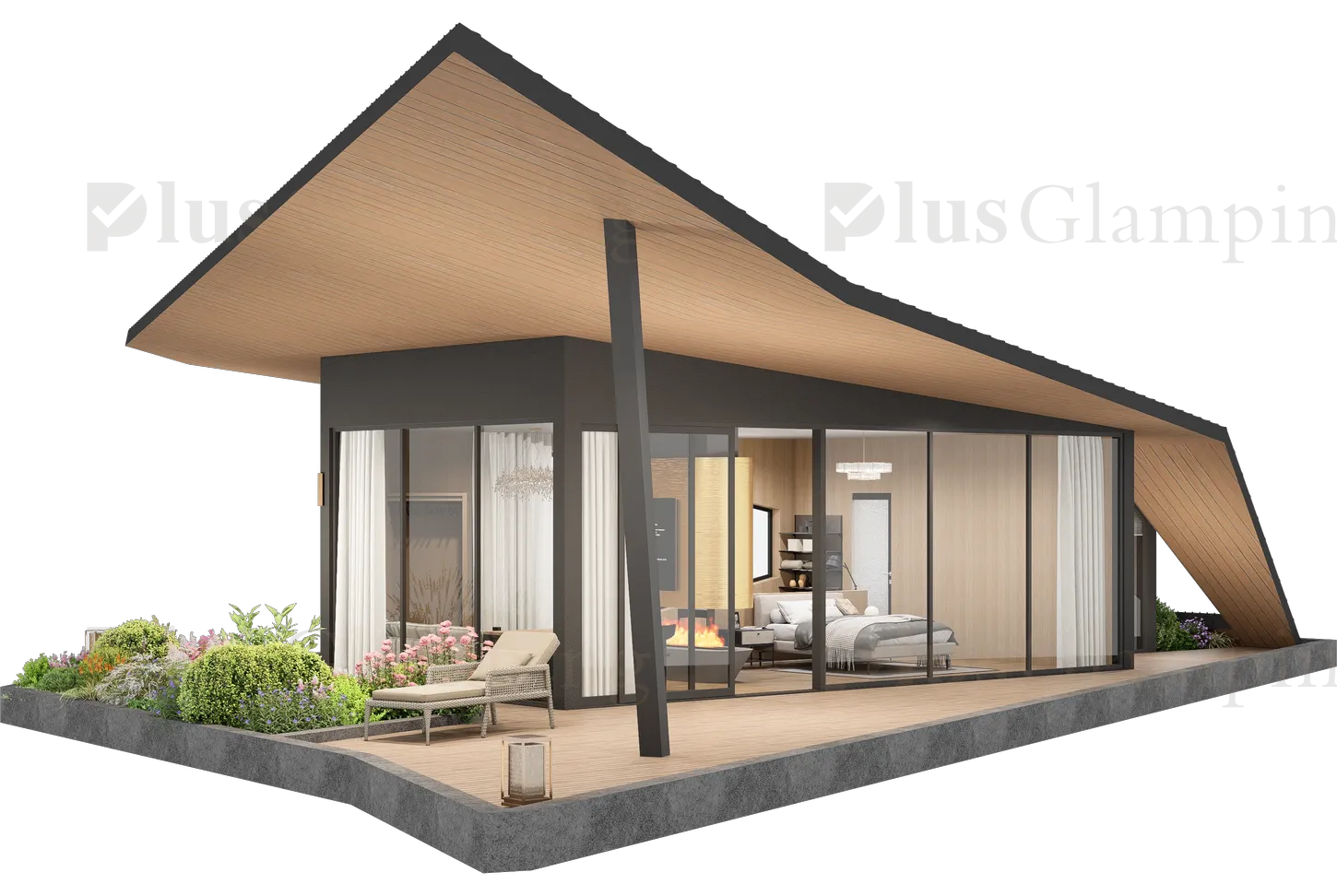

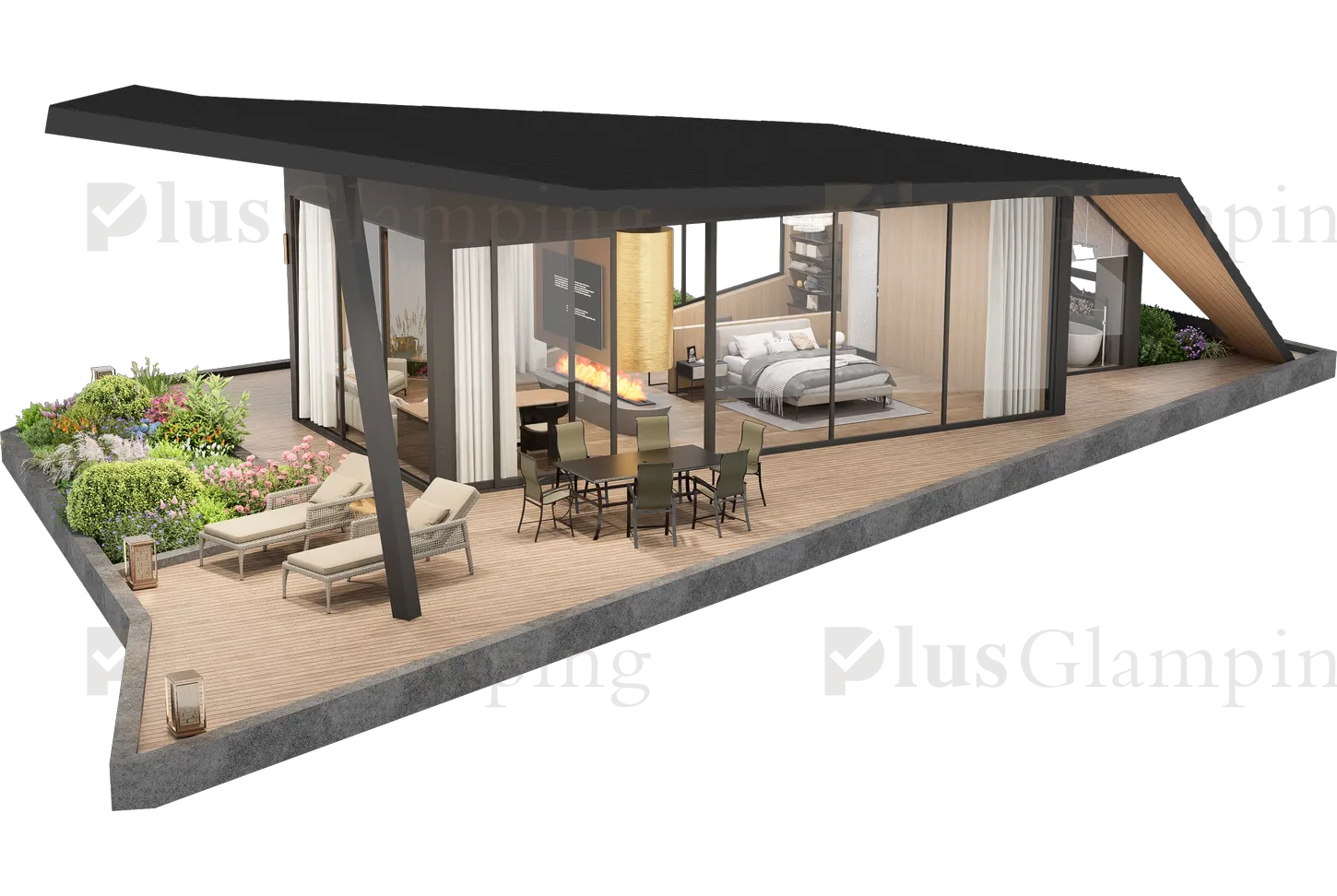

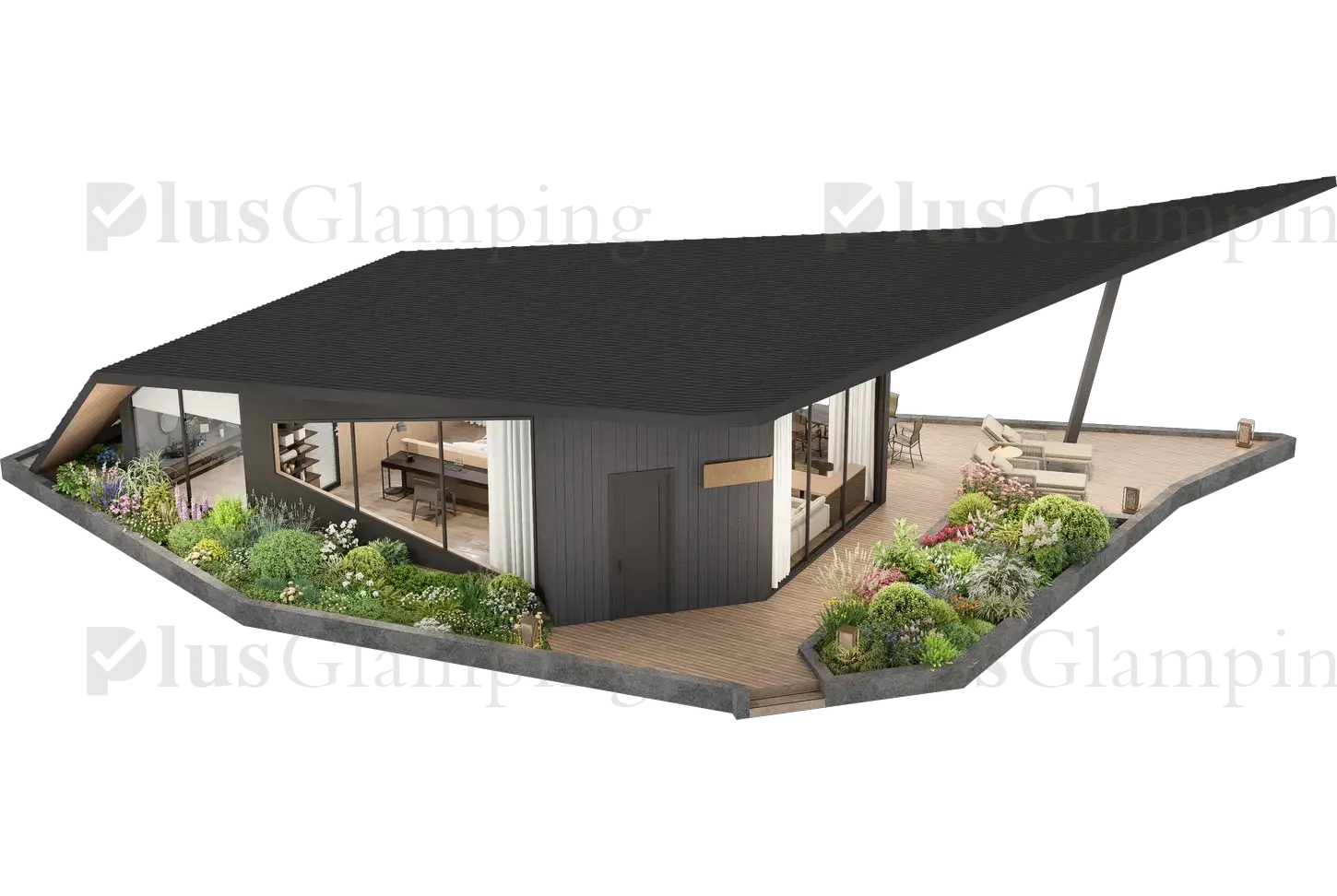

Rendering Gallery

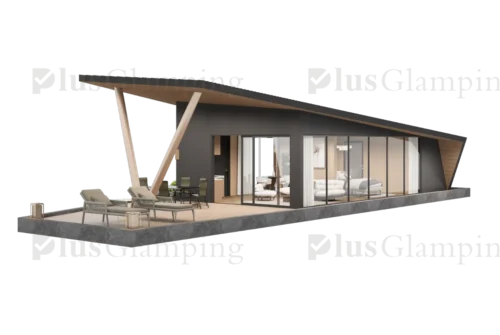

FR

FR

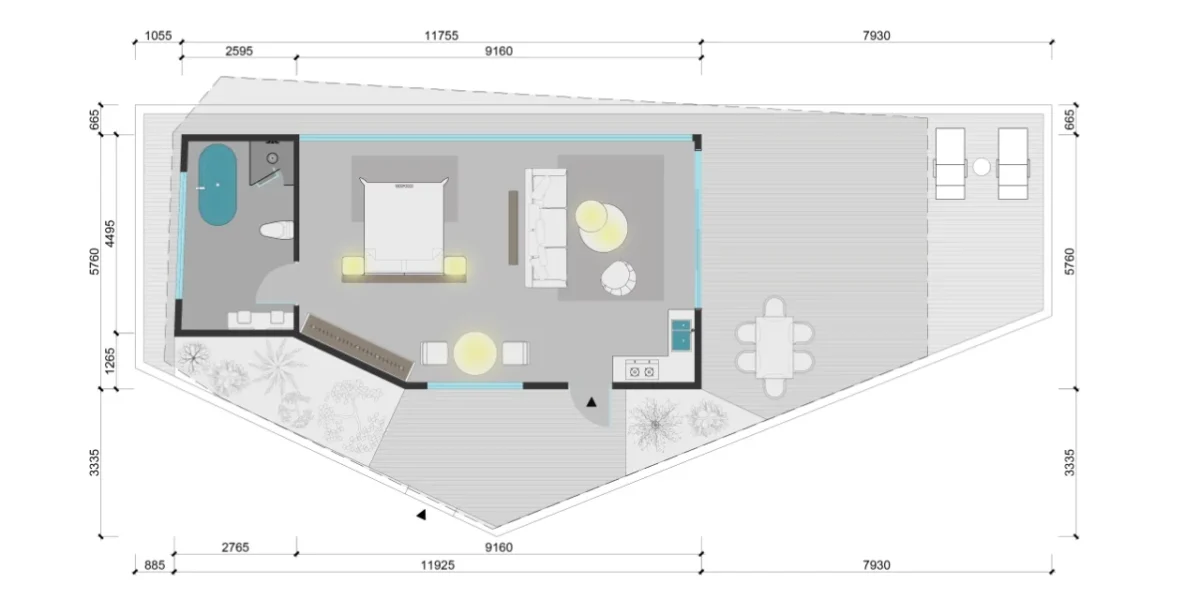

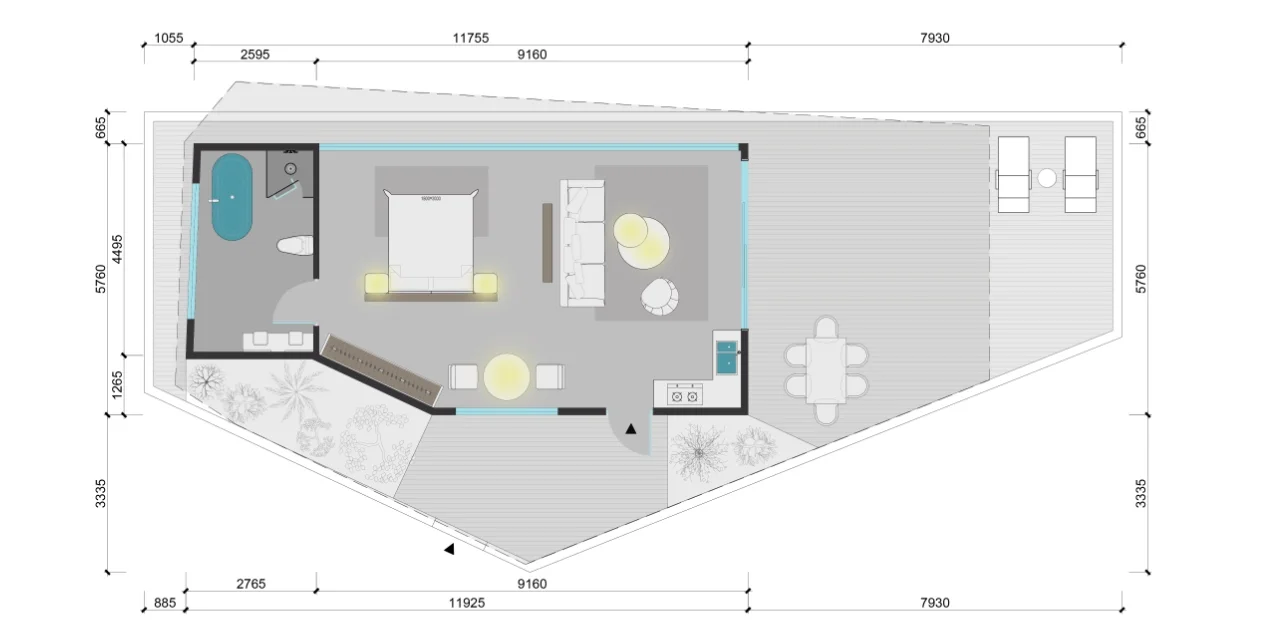

Layout Design

Dimensions

  • Projected Area: 175m2
  • Structural Dimensions(L x W x H): 17.2 x 10.2 x 4.3m
  • Inside Area: 65m2
  • Inside Dimensions(L x W x H): 11.8 x 5.6 x 3.2m
  • Terrace: 92m2
  • Floor plan: 1 living room, 1 bedroom, 1 bathroom

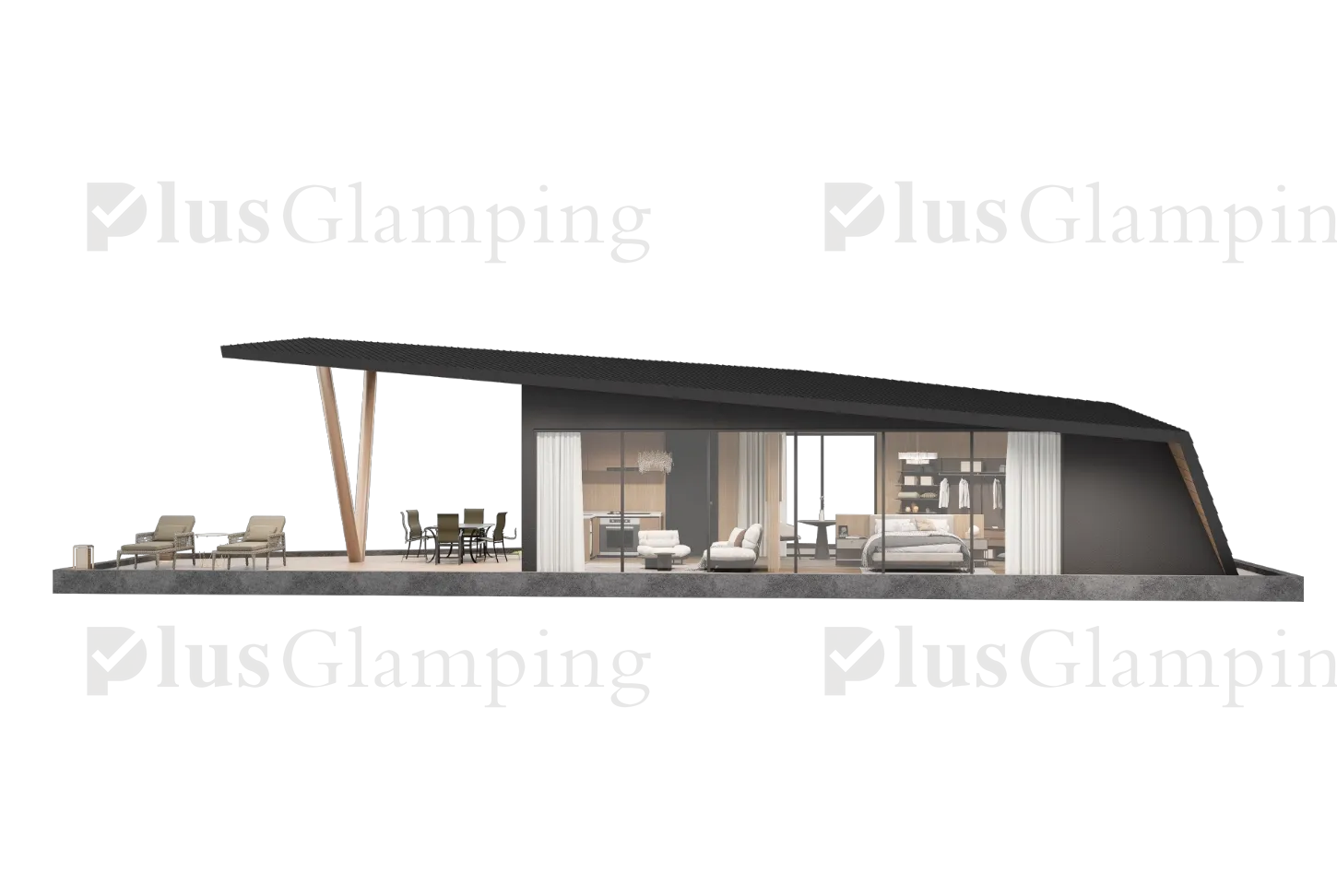

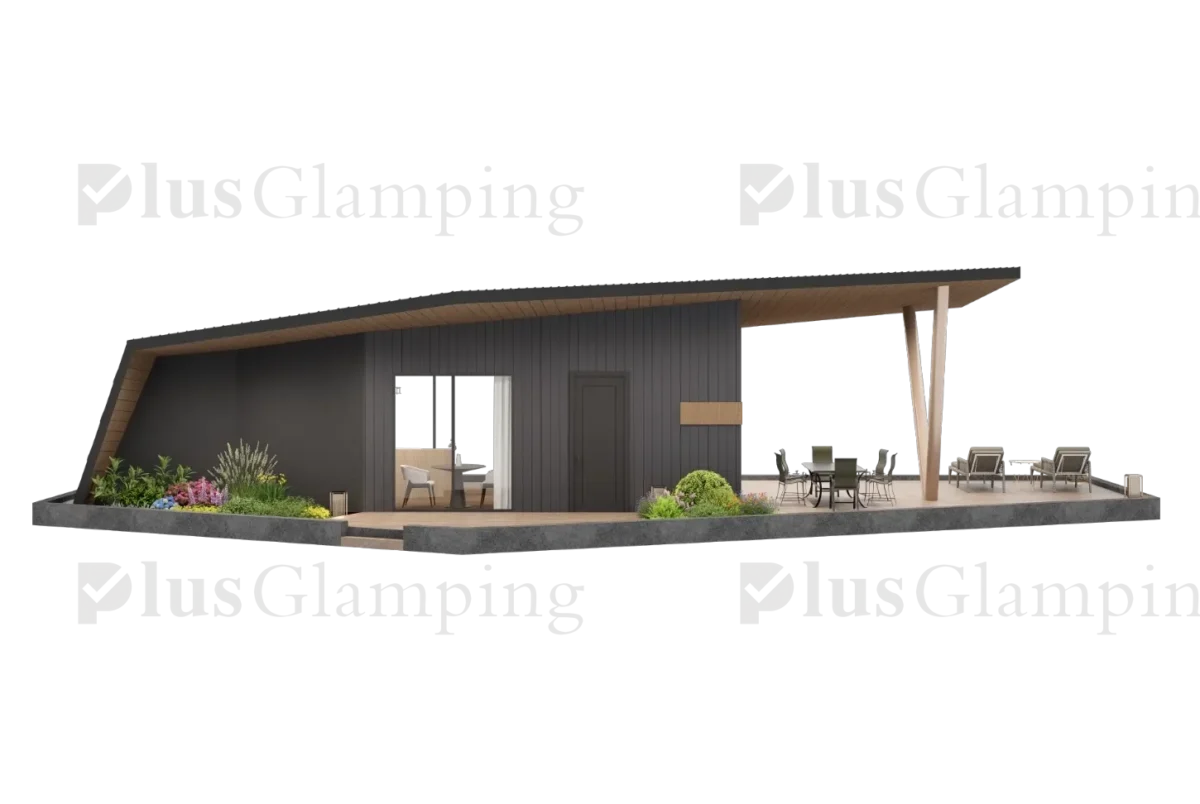

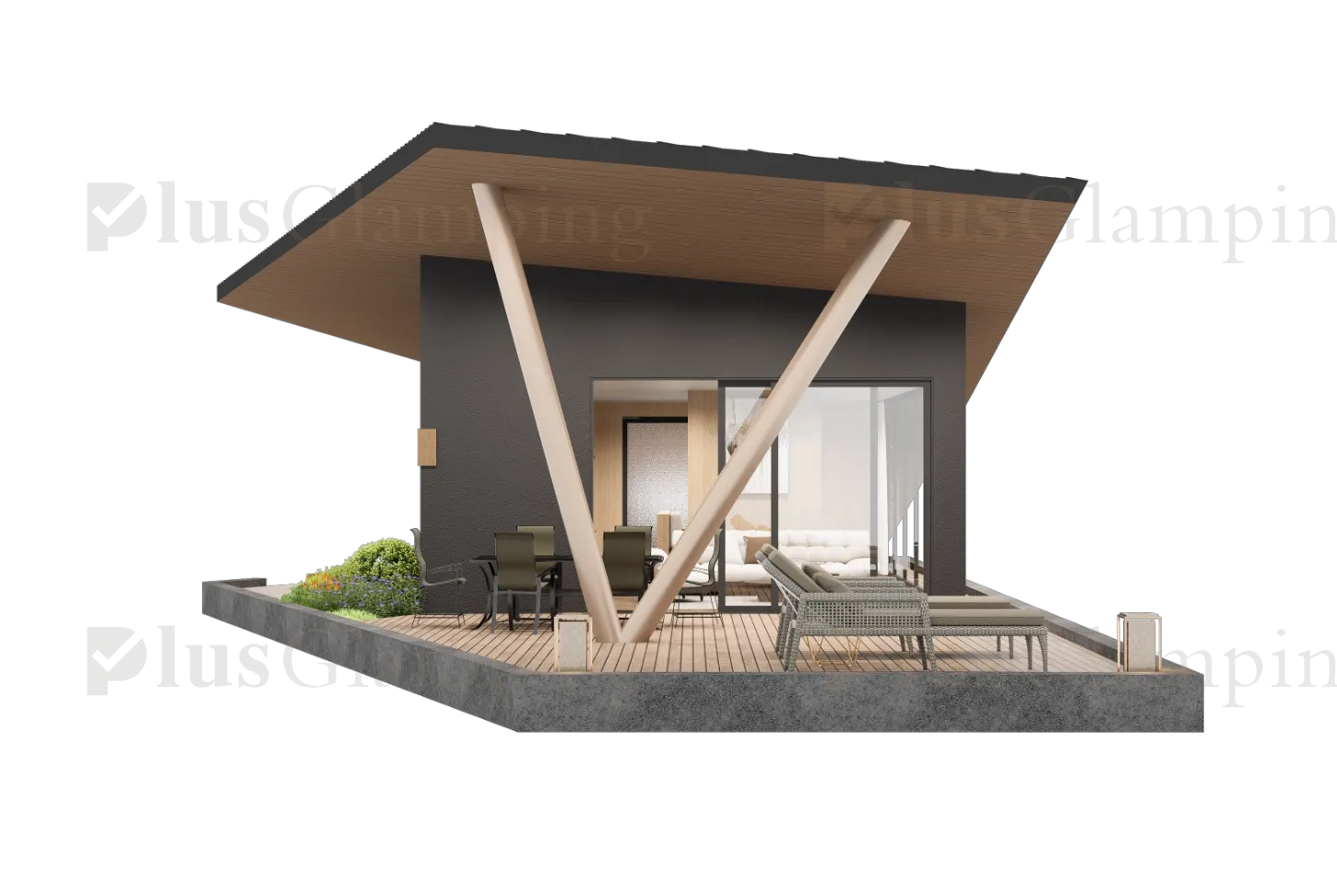

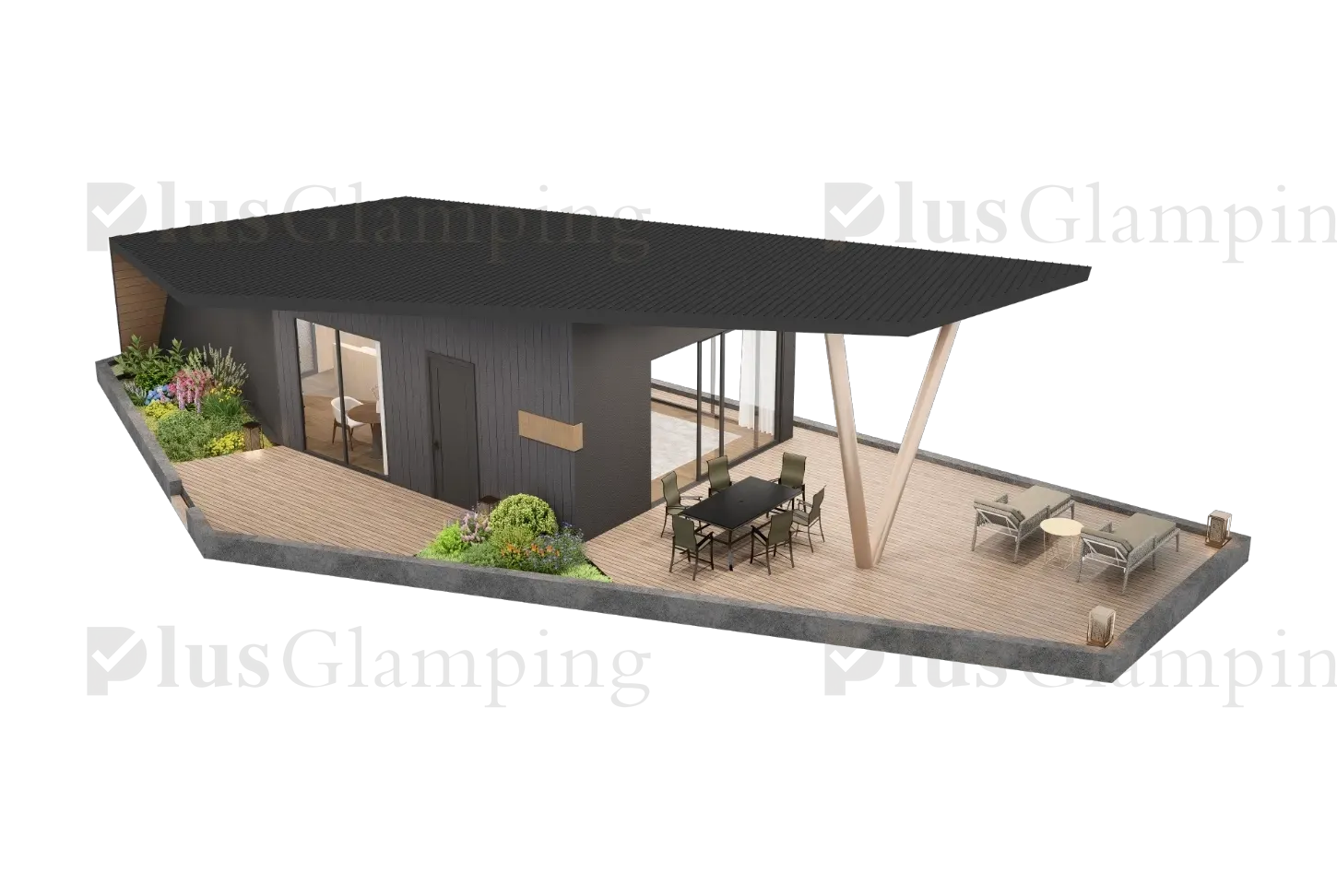

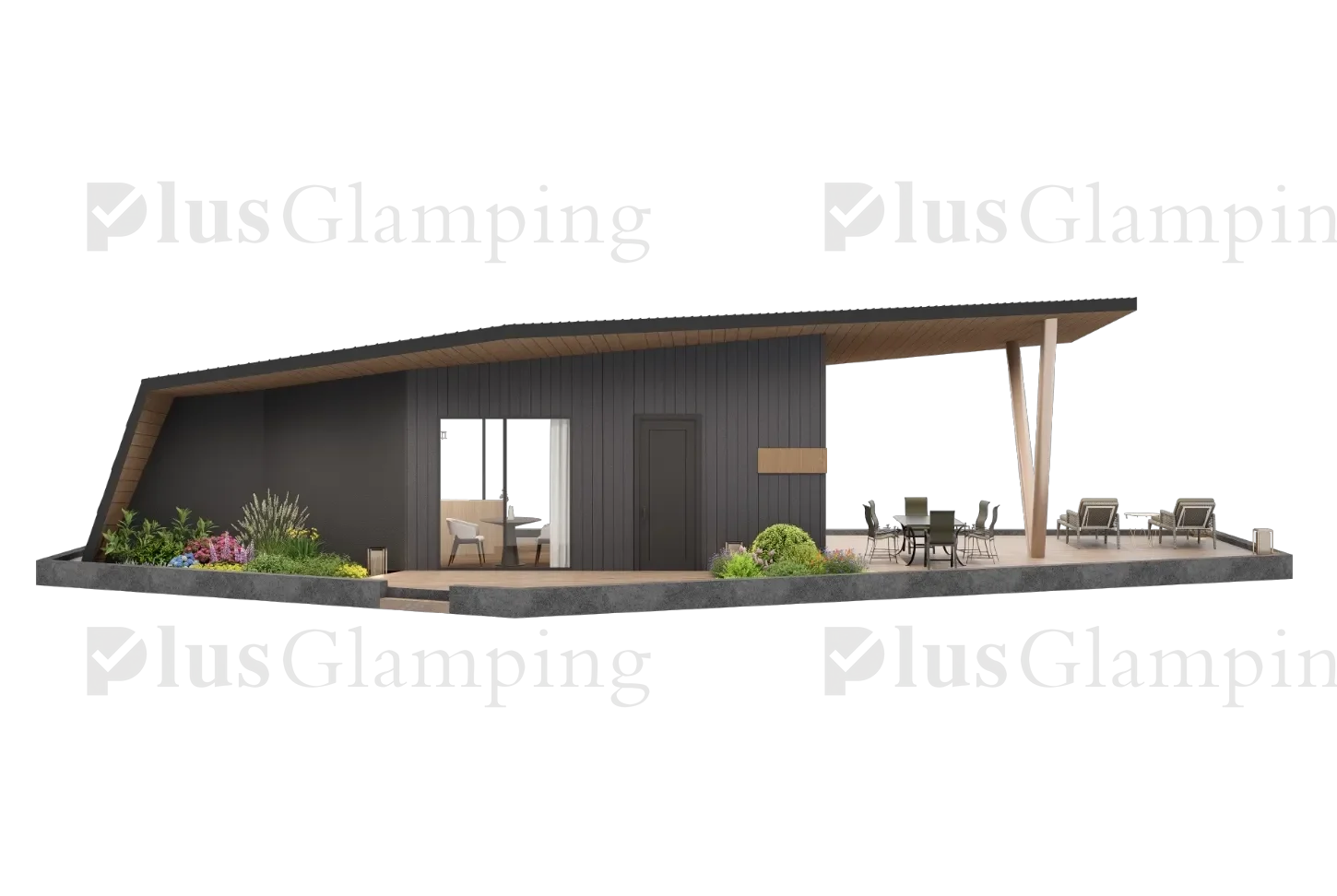

Rendering Gallery

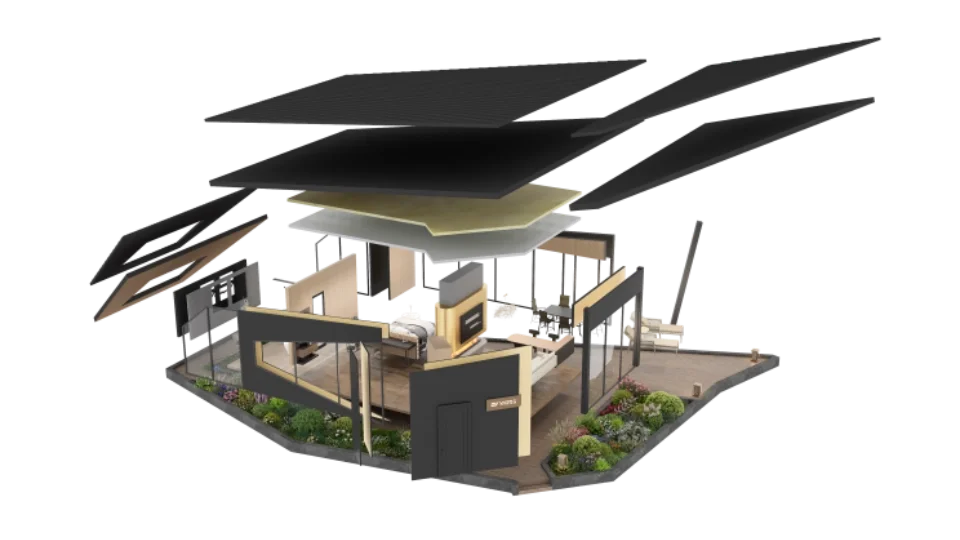

Key Specifications

Carefully Selected and High Quality Materials
1
Insulated aluminum roof tile
2
Composite Waterproofing & Thermal Insulation Filling
4
Wall System:
5
Ground & Flooring System:
3
Frames
  • Roofing System: 45mm Insulated Aluminum Composite Roof with Solid Aluminum Capping
  • Composite Waterproof and Thermal Insulation Filling Layer
  • Frames: 100x100x5mm Hot-dip Galvanized Steel Frame
  • Integrated Wall System:
    • 2mm Solid Aluminum Cladding
    • Western Red Cedar Siding/WPS(Partial)
    • Composite Waterproof & Thermal Insulation Infill
    • Thermal Break Aluminum with Switchable Smart Glass(Partial)
  • Ground & Flooring System
    • Premium SPC Waterproof Flooring
    • 100x100x5mm Hot-dip Galvanized Steel Joists
    • Fiber Cement Board
    • Waterproofing Membrane
    • Phenolic Foam (PF) Insulation Infill

Wall System Rendering

Ground & Flooring System Details

Integrated Bathroom Modular
