Prefab House N Series
The N Series: Premium A-Frame Single-story & Two-story Modular Prefab Glamping Cabins:
The N Series Prefab House offers a versatile range of high-performance prefabricated glamping structures designed to scale your glamping business. From intimate single-story escapes to expansive lofted two-story luxury cabins, each unit combines a modern A-frame aesthetic with industrial-grade durability.
-

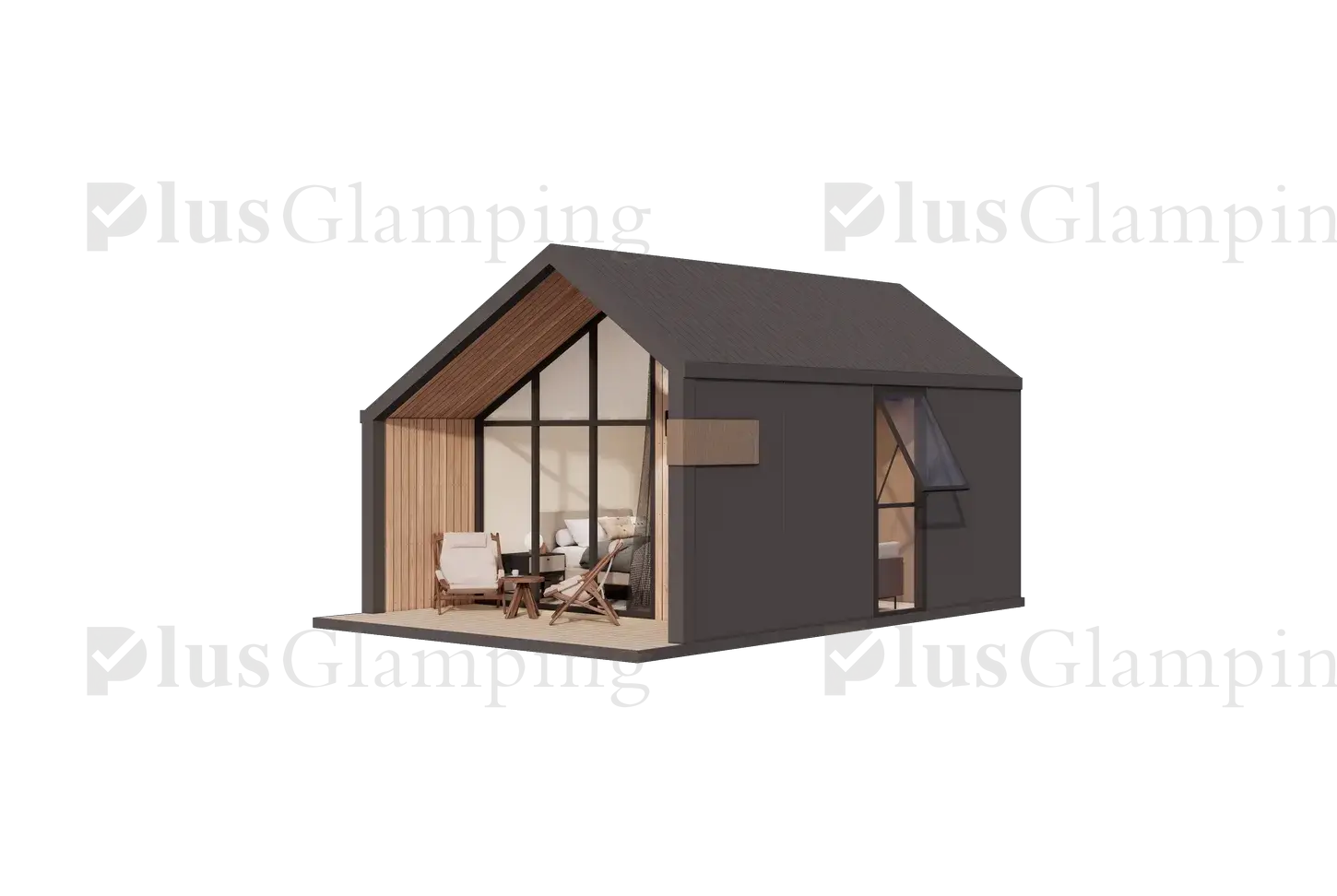

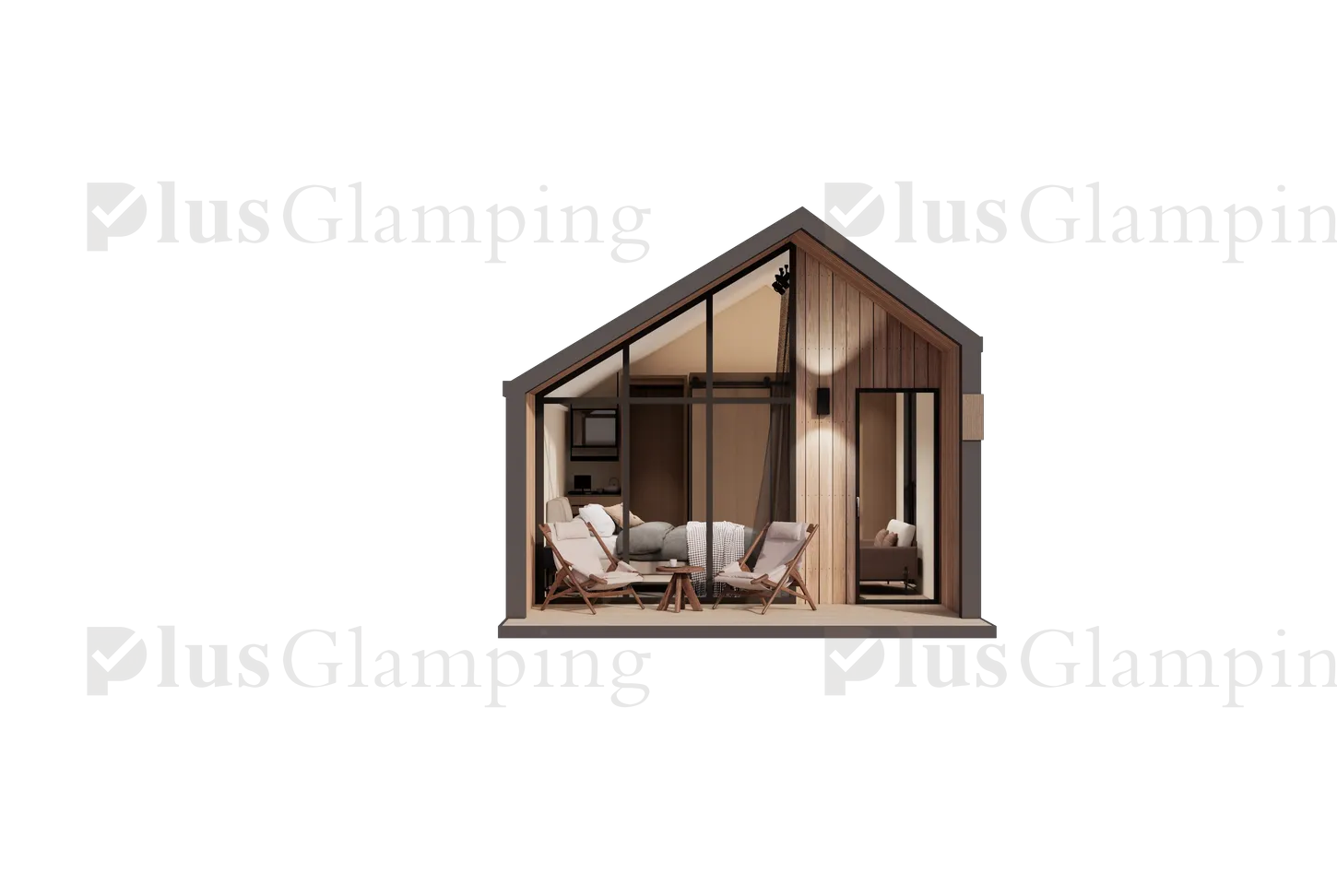

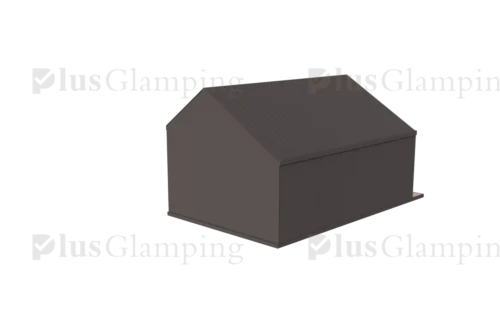

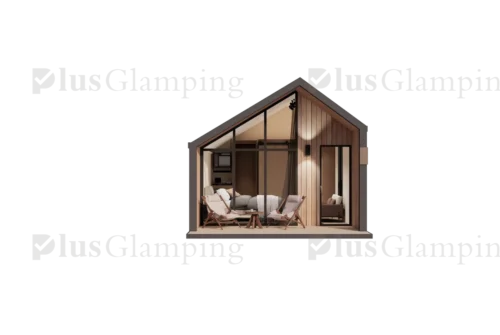

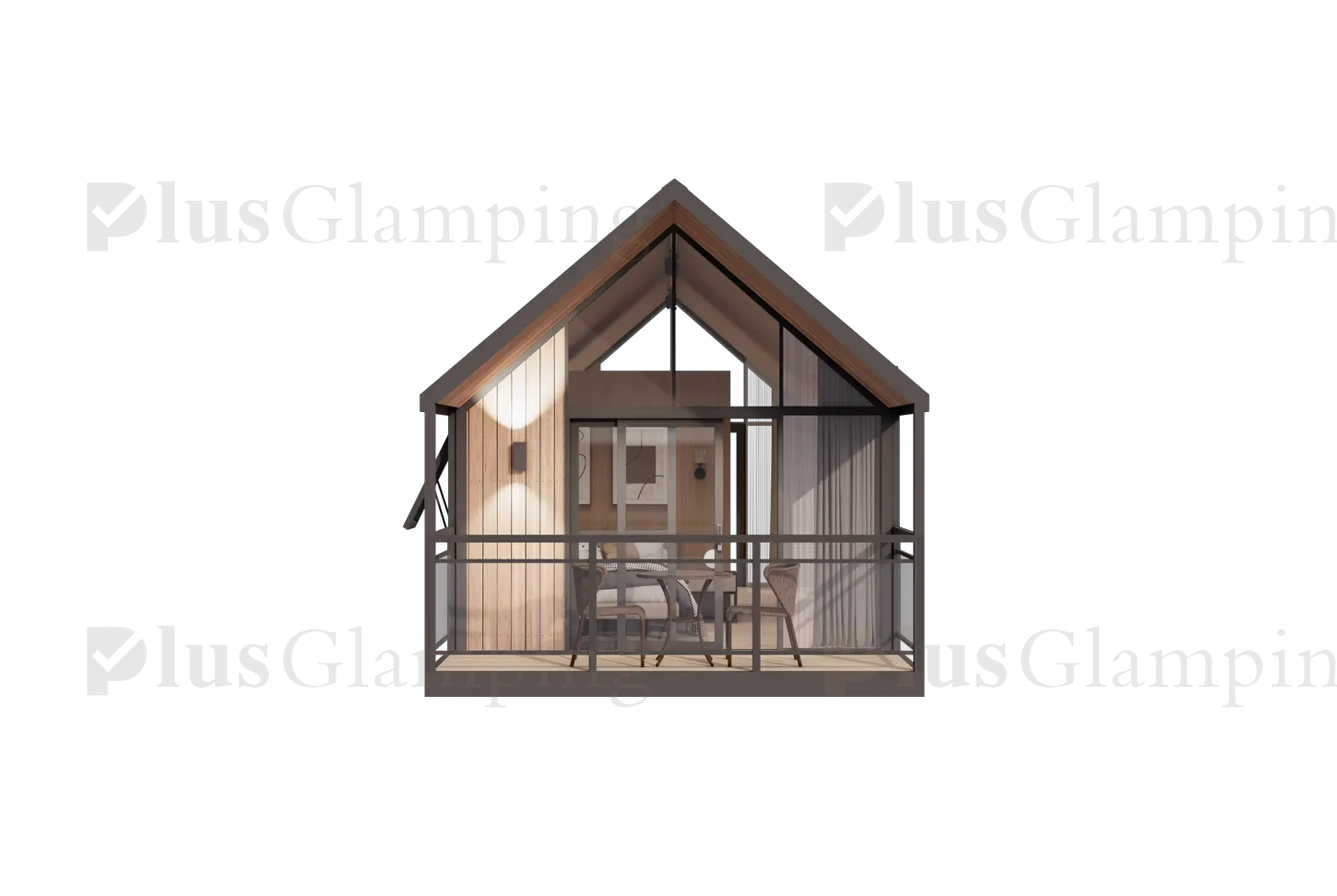

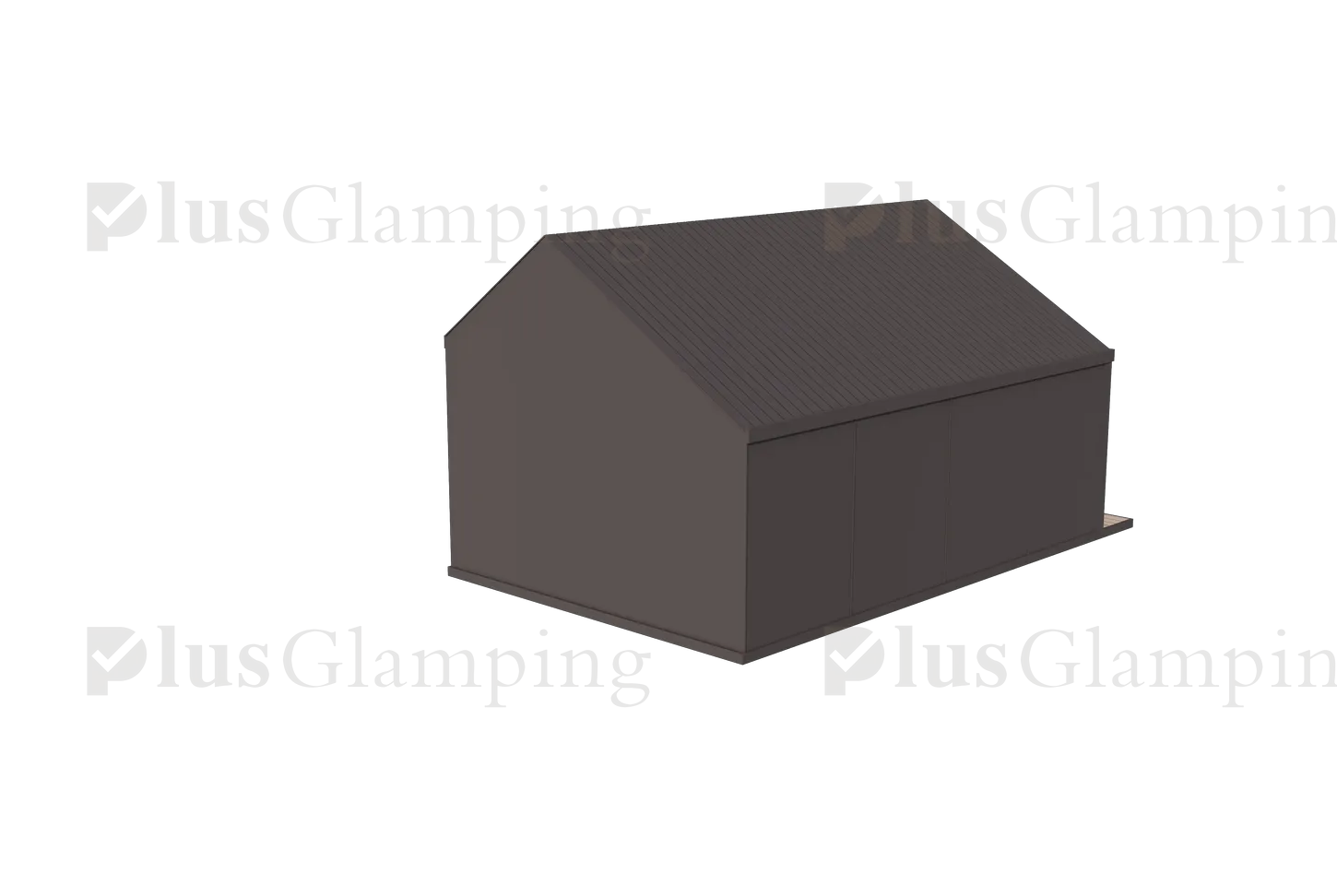

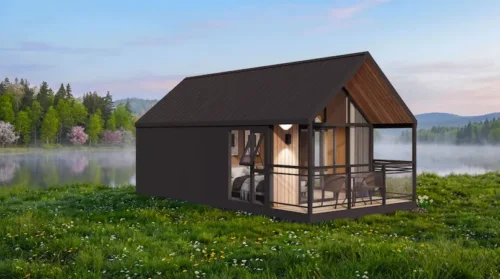

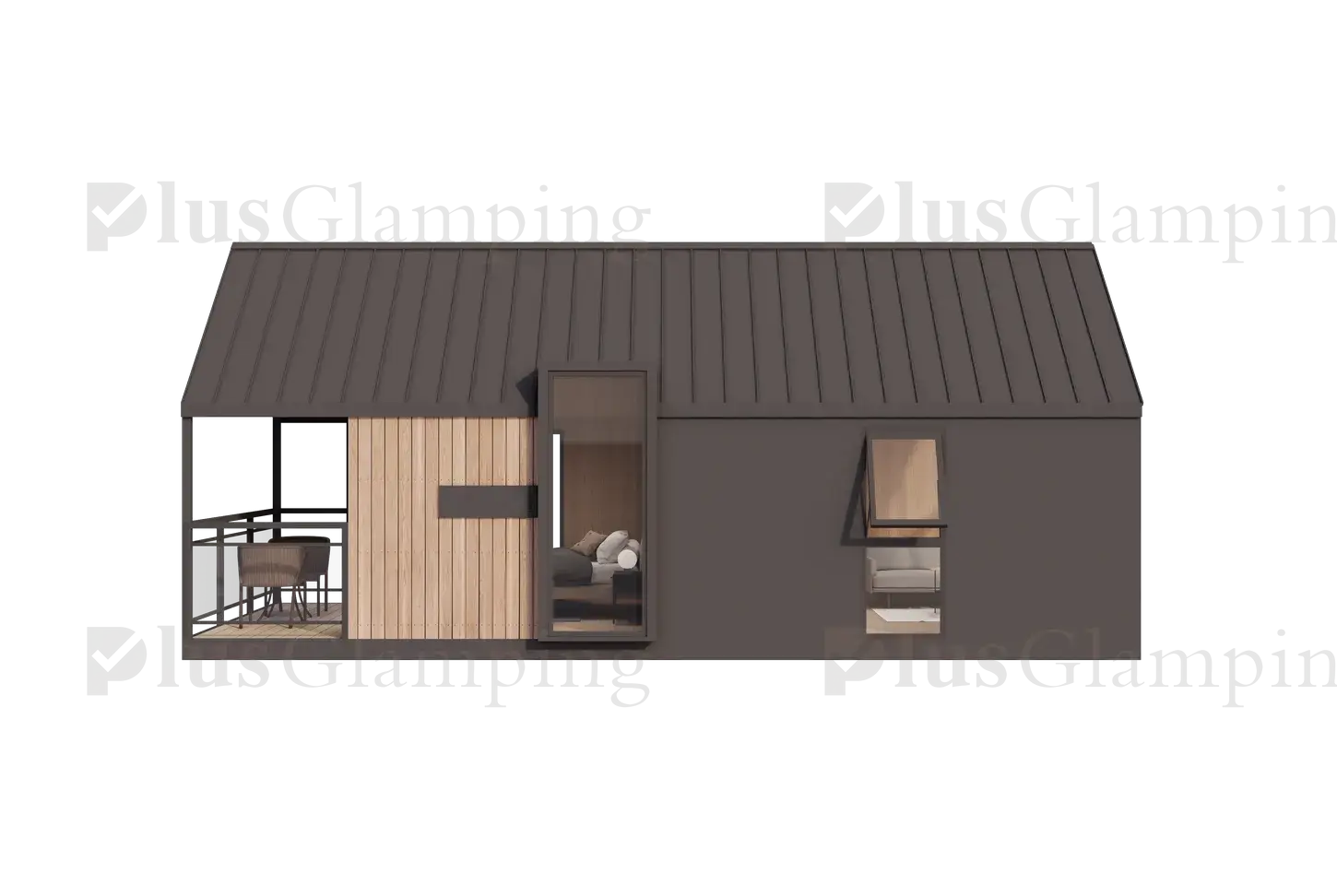

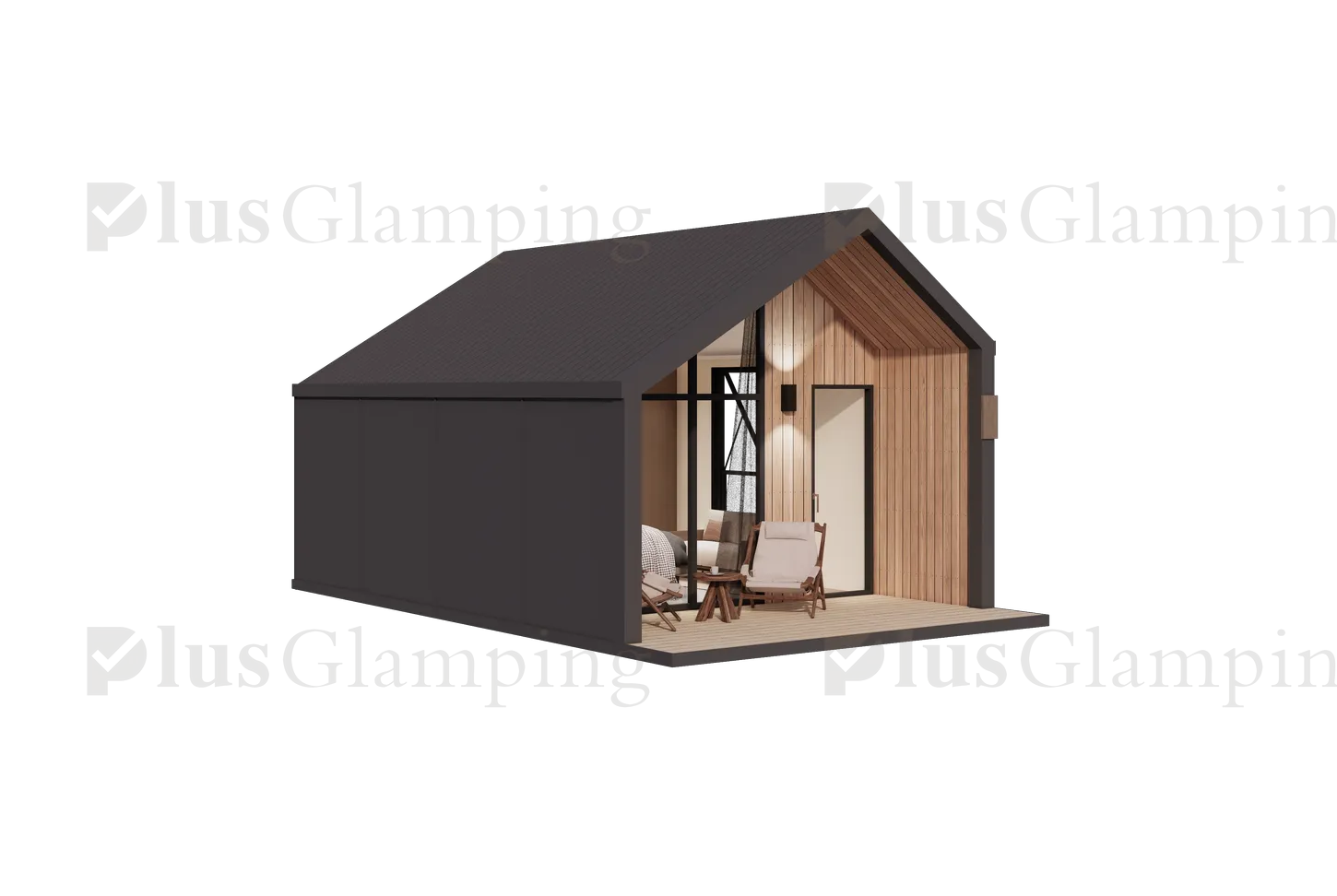

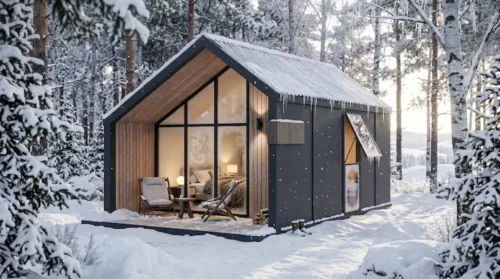

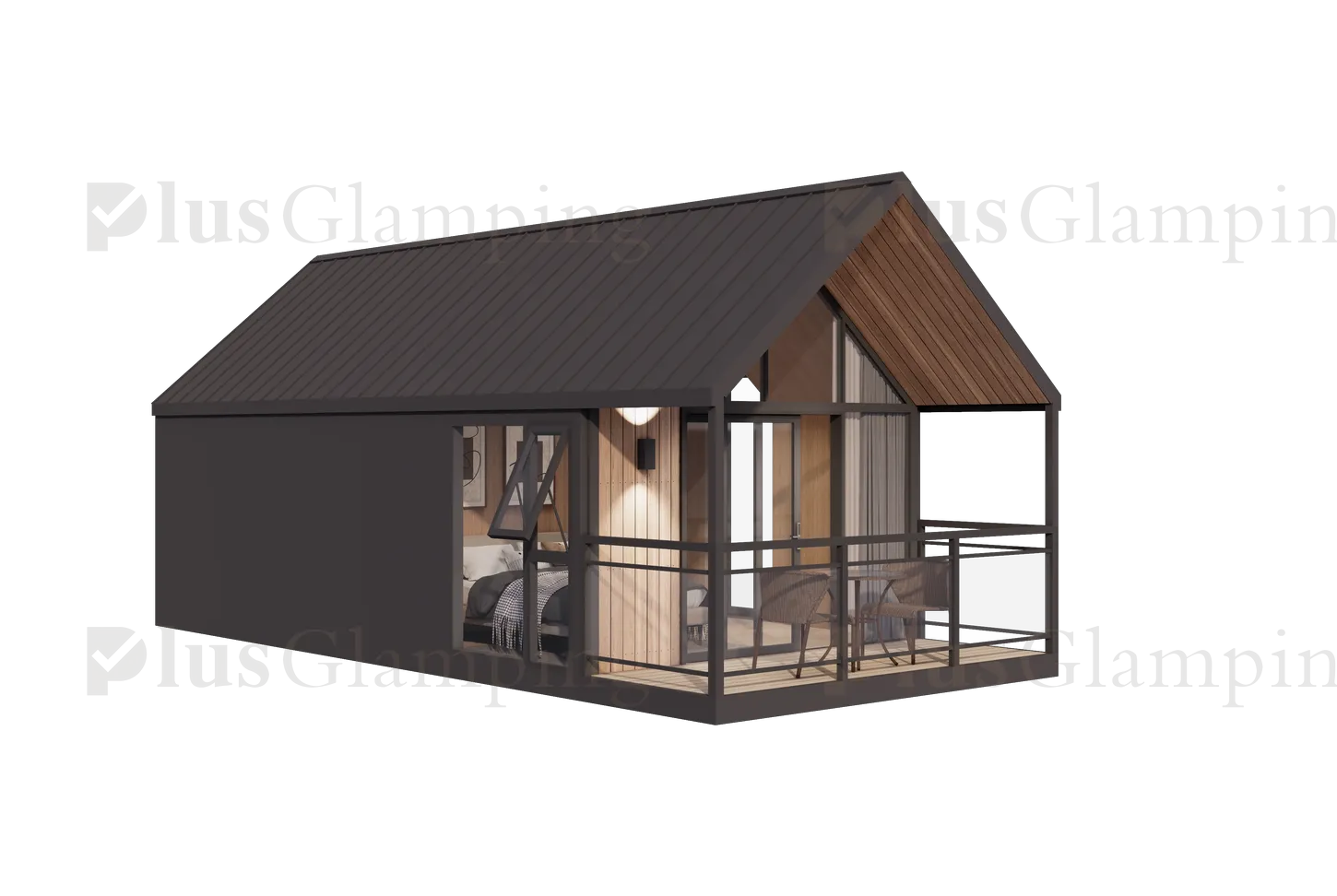

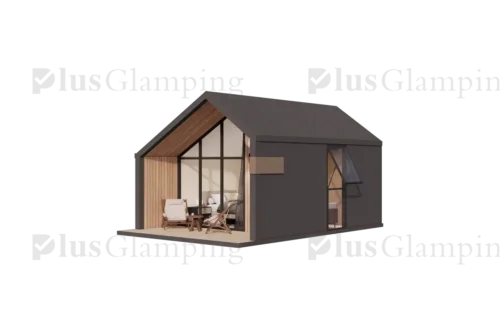

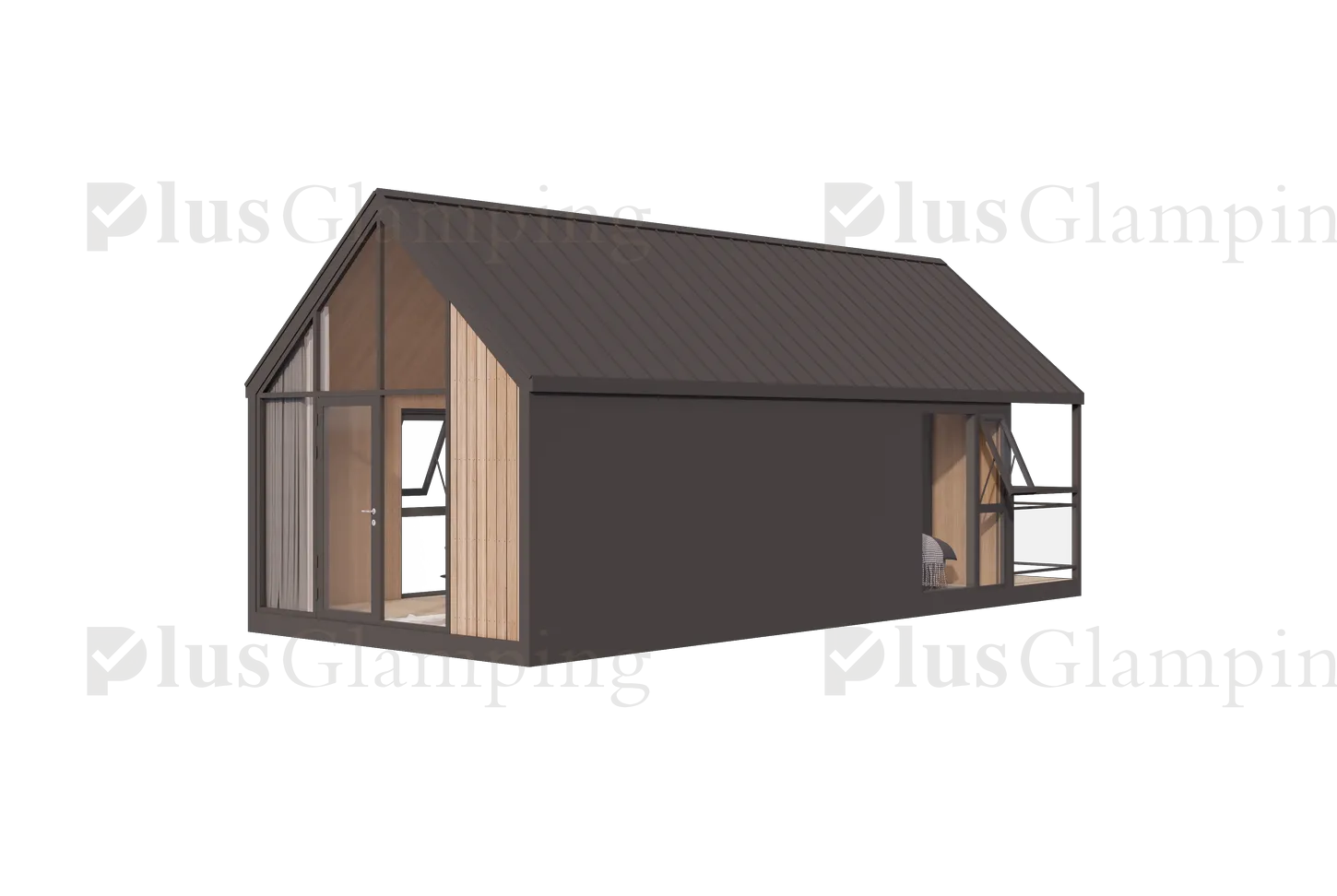

Single-Story Glamping Cabins (N3 & N5): Our single-story cabins deliver an iconic A-frame look with two distinct floor plans. The compact N3 features a bold, asymmetrical roofline for a contemporary edge, while the spacious N5 offers a timeless, symmetrical design. Both models prioritize floor-to-ceiling vistas and high-end finishes.
-

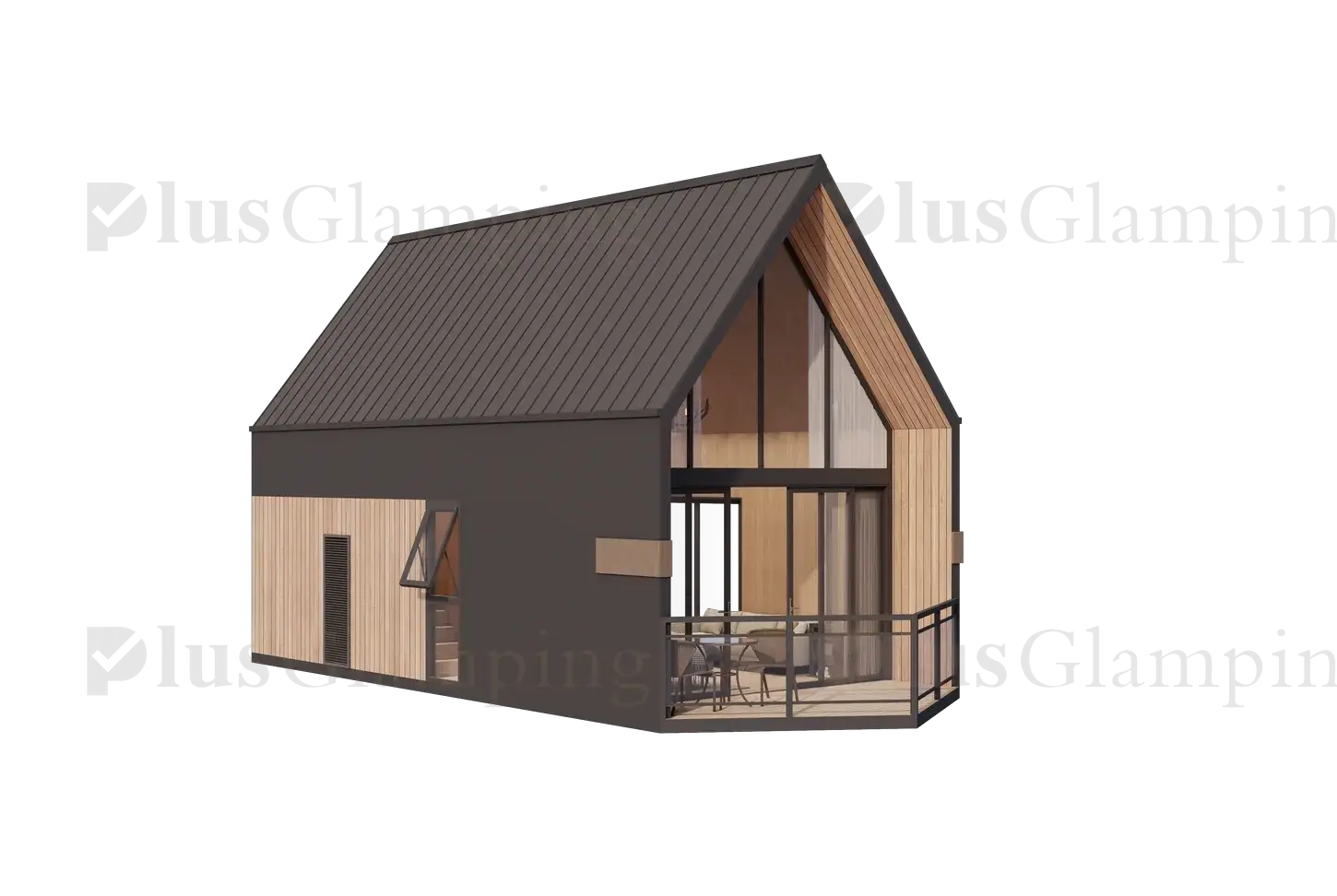

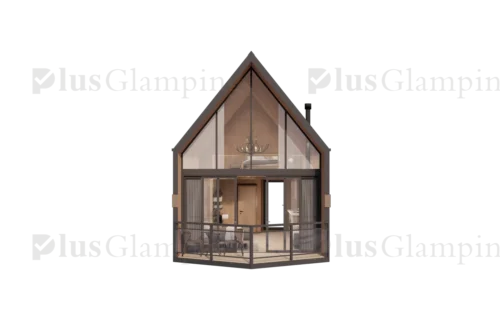

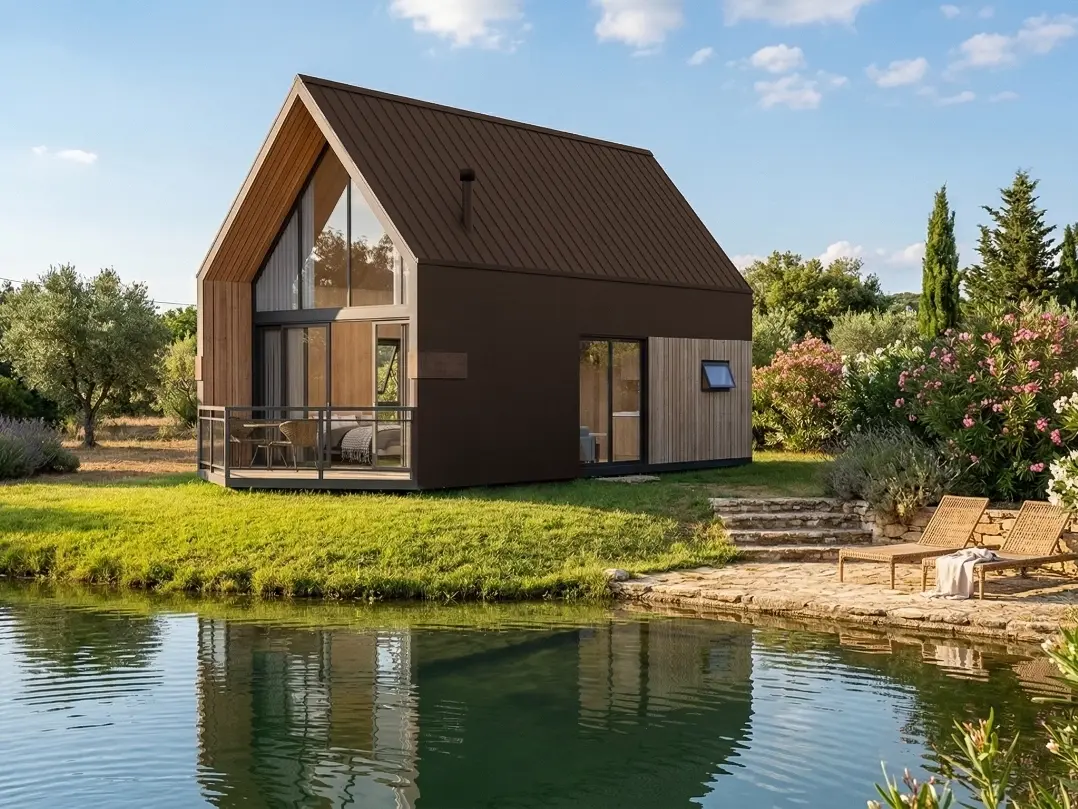

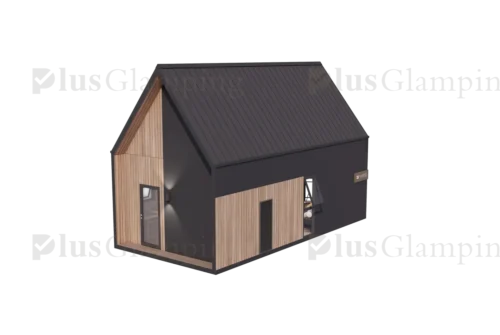

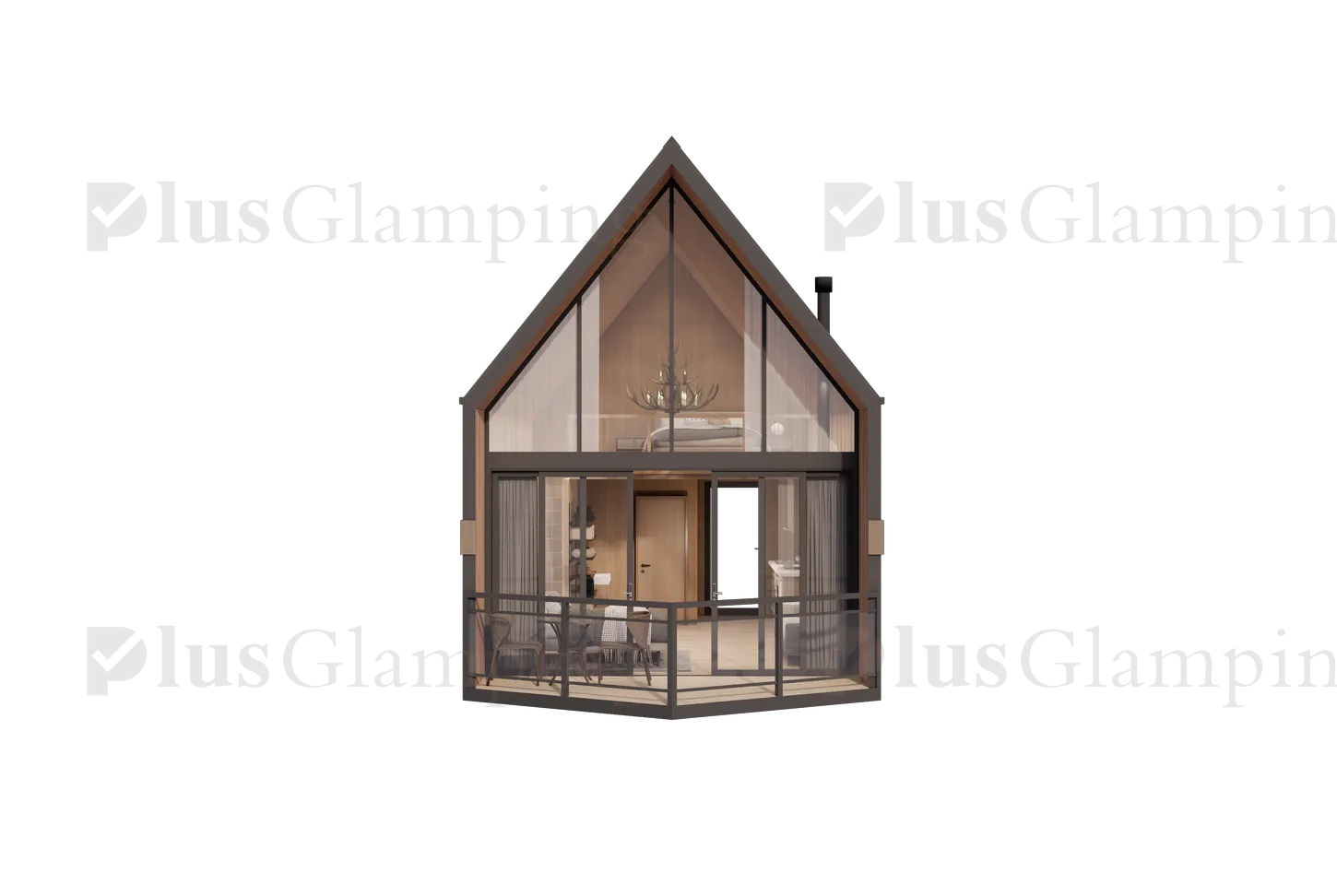

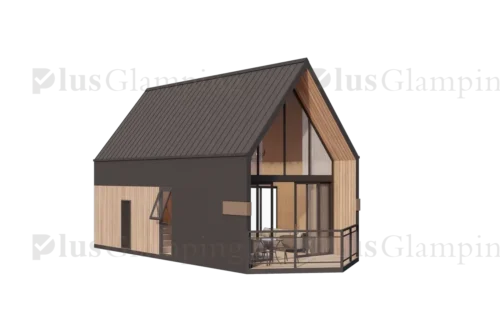

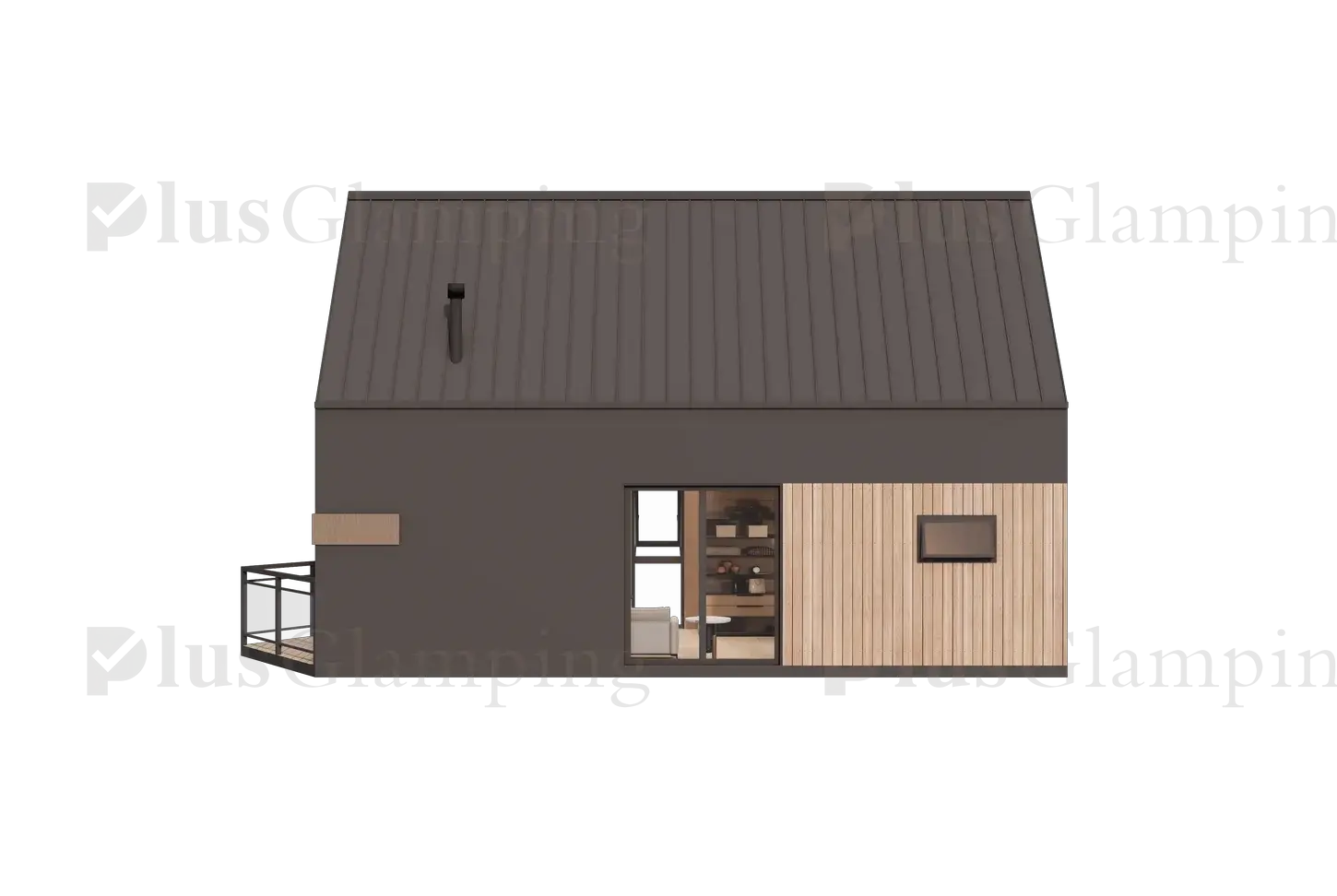

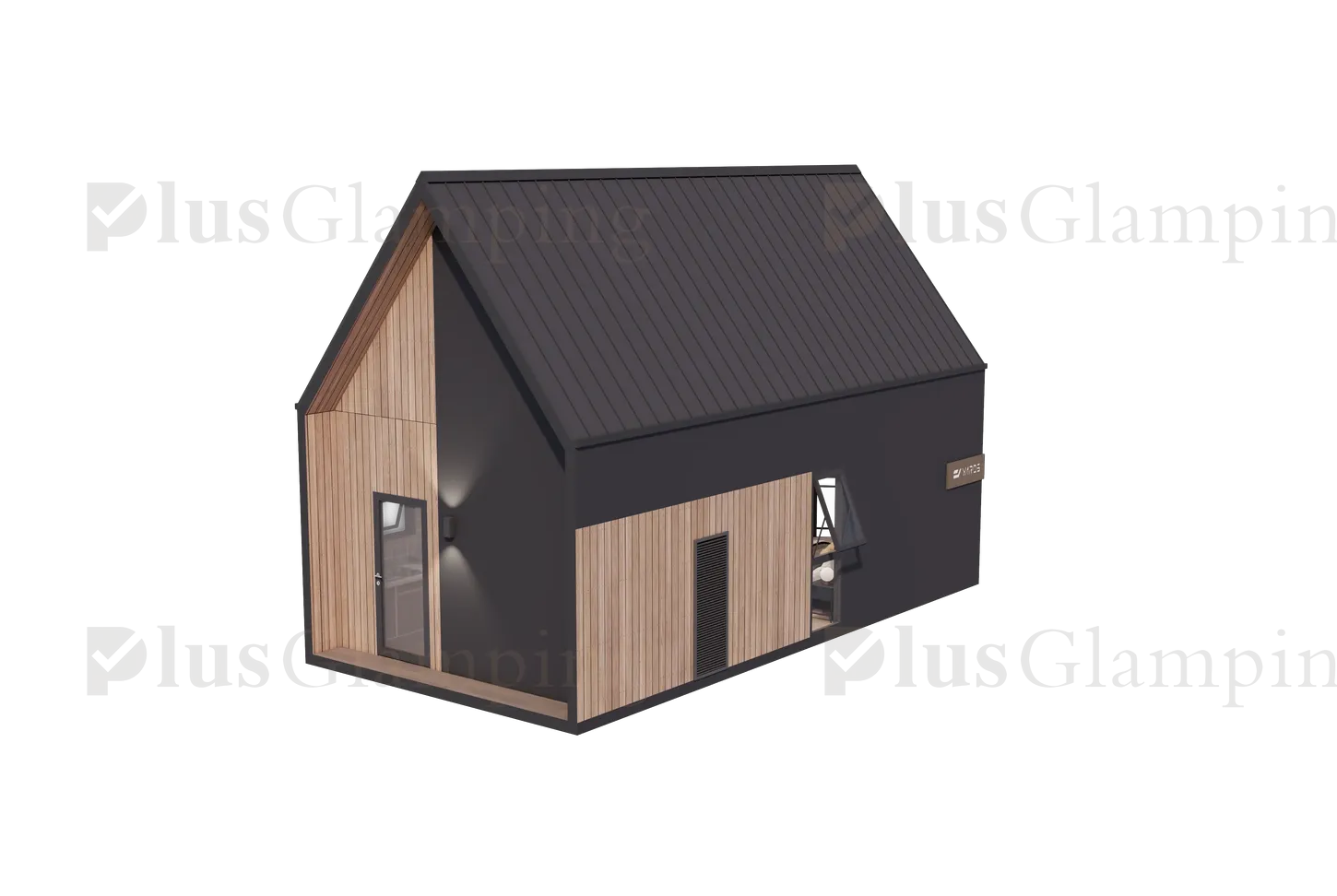

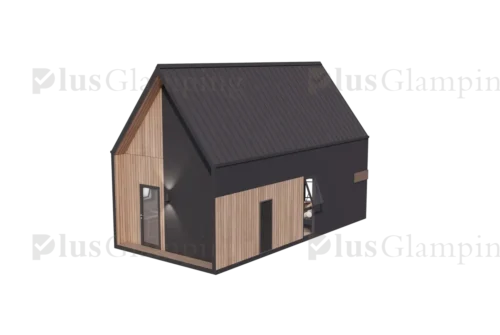

Two-Story Luxury Glamping Cabin (N7): The deluxe N7 elevates the guest experience with a two-story loft configuration. This model maximizes vertical space, providing a clear separation between living and sleeping areas, or dual sleeping quarters, making it ideal for premium glamping suites that demand higher nightly rates.
-
Aviation-Grade & Eco-Friendly Materials: Built on a foundation of high-strength aviation-grade aluminum alloy, the N Series is rust-resistant and engineered for extreme climates. We integrate premium eco-friendly materials to ensure a sustainable footprint and a healthy environment for guests.
-
Turnkey Modular Efficiency: Every N Series glamping cabin is factory-prefabricated for rapid deployment. Our modular system ensures minimal on-site labor and zero landscape disruption, allowing you to move from delivery to guest check-in in record time.
Ideal Applications: Boutique glamping resorts, eco-luxury glamping retreats, hotel room expansions, and high-ROI vacation rental developments.
Model Comparison
|
Model
|
Guests
|
Dimensions
(Structural/Interior) |
Interior Area
|
Height
(Ext./Int.) |
Terrace
|
Bedroom
|
Bathroom
|
Living Space
|
|---|---|---|---|---|---|---|---|---|
 N3 |
1-2 People | 4m x 6m 3.8m x 4.5m |
17 m² | 3.5m / 2.3m | 10 m² | 1 | 1 | No |
 N5 |
2-4 People | 4m x 9m 3.8m x 7.3m |
28 m² | 3.9m / 2.2 m | 6 m² | 1 | 1 | Yes |
 N7 |
2-4 People | 4.8m x 8m 4.6m x 7.8m |
53 m²(G.F. + Lofet) | 6.2m / 3.2 m | 8.4 m² | 1 | 1 | Yes + Kitchenette |

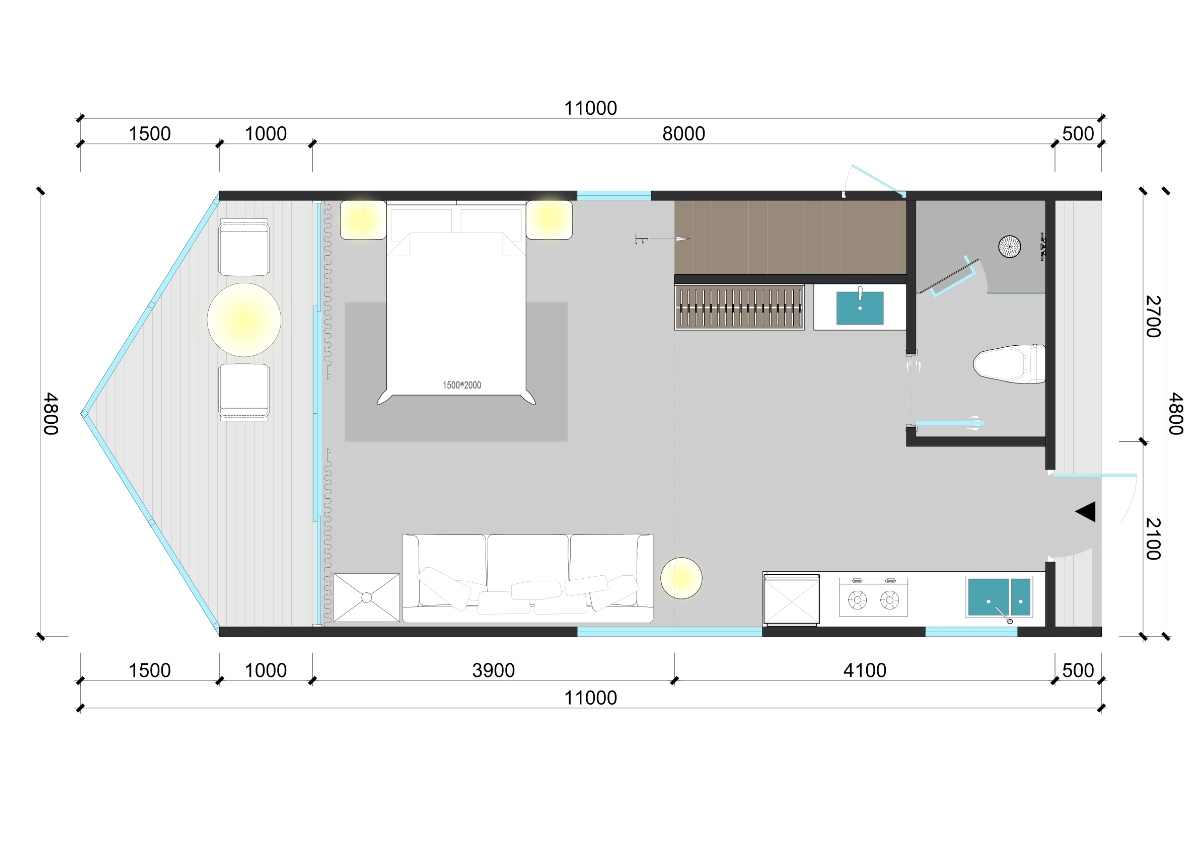

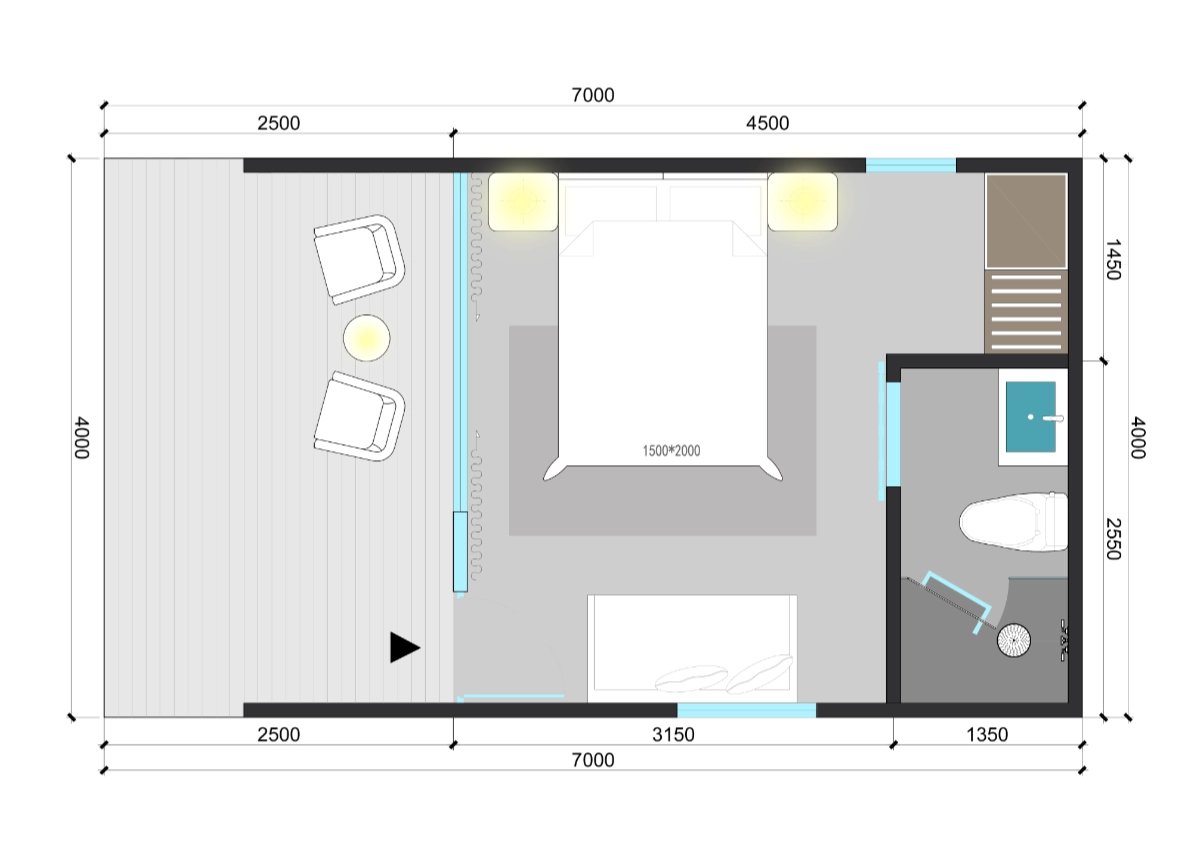

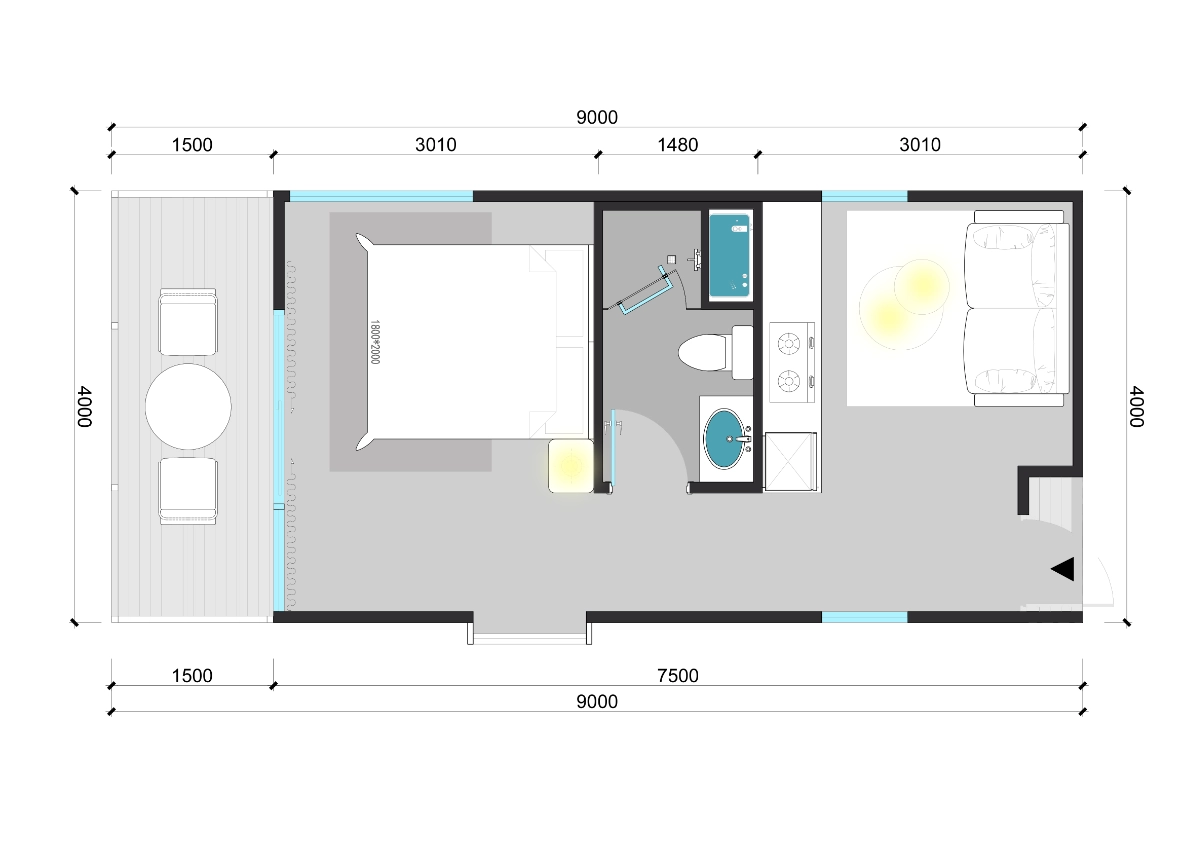

Dimensions & Layout
Key Specifications
- Roofing System: 45mm Insulated Aluminum Composite Roof with Solid Aluminum Capping
- Composite Waterproof and Thermal Insulation Filling Layer
- Frames: 100x100x5mm Hot-dip Galvanized Steel Frame
- Integrated Wall System:
- 2mm Solid Aluminum Cladding
- Western Red Cedar Siding/WPS(Partial)
- Composite Waterproof & Thermal Insulation Infill
- Thermal Break Aluminum with Switchable Smart Glass(Partial)
- Ground & Flooring System
- Premium SPC Waterproof Flooring
- 100x100x5mm Hot-dip Galvanized Steel Joists
- Fiber Cement Board
- Waterproofing Membrane
- Phenolic Foam (PF) Insulation Infill

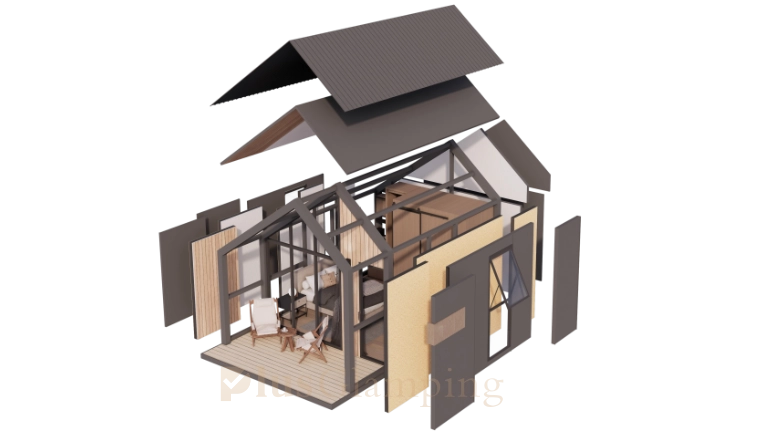

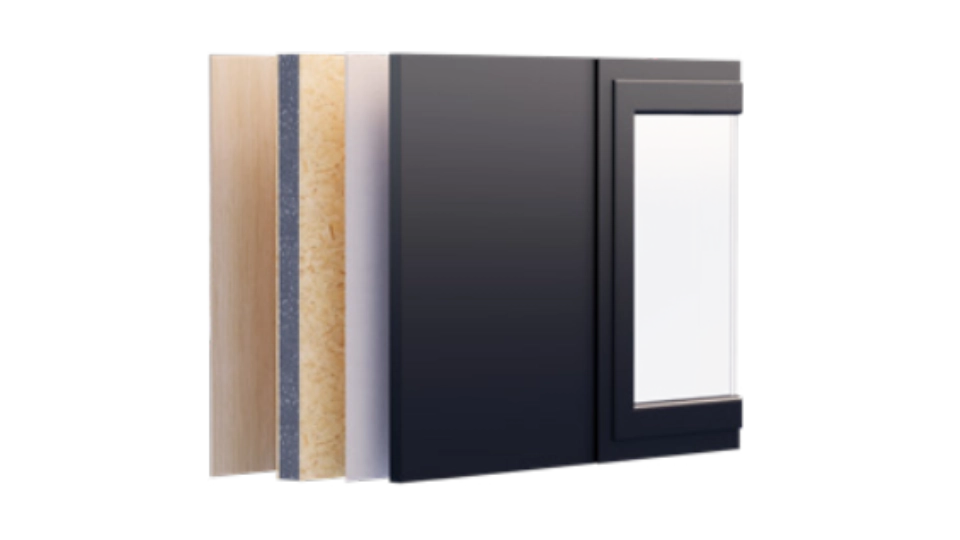

Wall System Rendering
Ground & Flooring System Details

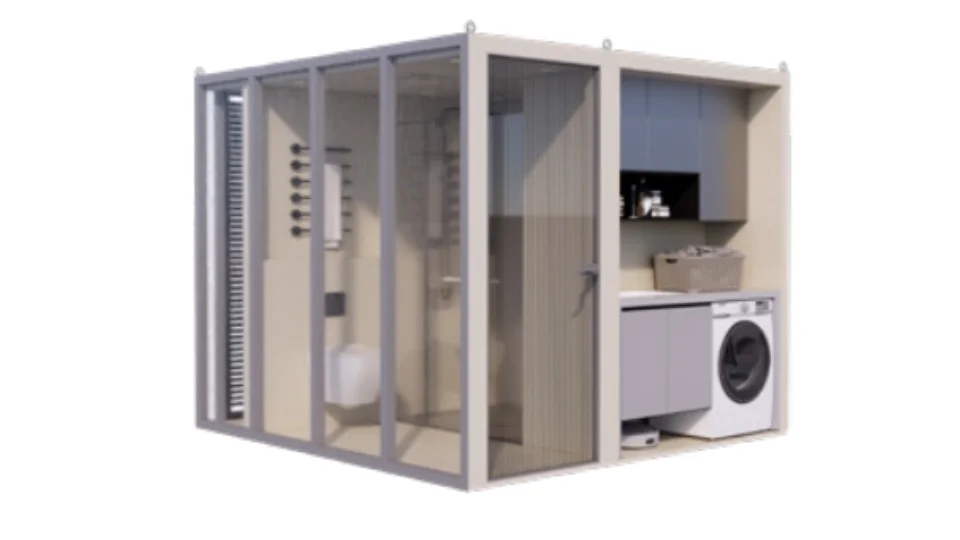

Integrated Bathroom Modular
